14 AWG must be protected at 15A, according to NEC 240.4(D)(3). 14 AWG can’t be used on a circuit with a 20A breaker. The screw terminals are the better choice if you want to put 15 Amp receptacle on a 20 Amp circuit with 12 gauge wire.

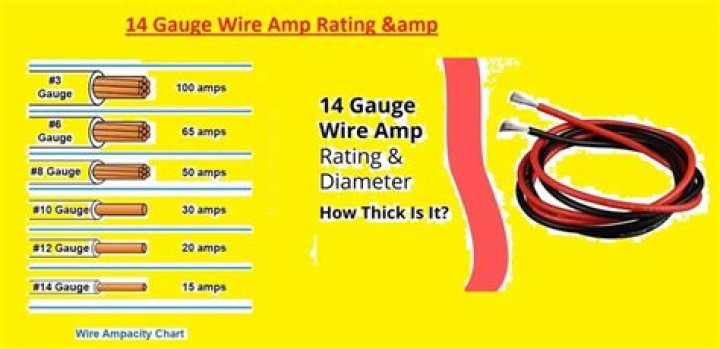

How many amps is 14g wire good for?

According to the “powers-that-be”, a 14 gauge wire can carry 20 Amps, but only as a built-in safety measure.

Can I mix 12 and 14 gauge wire on a 20 amp circuit?

Generally speaking, #12 is good for 20A and #14 is only good for 15A. So if you have a 15A circuit, you could mix them with no problem. However if you have a 20A circuit, you can’t use #14 at all.

Can you use 14 gauge wire on a 30 amp breaker?

If the wire to the 30 Amp breaker is only 14 gauge, you don’t have a breaker, you have a 30 foot long fuse, and it will burn in two before the breaker senses the need to trip. Check out the fan and light if you match the wire size to the breaker size. Yes, it is.

What happens if you use 14 gauge wire on a 20 amp circuit?

Originally Answered: What happens if you use a 14 gauge wire on a 20 amp circuit? 14 gauge wire is rated for 15 Amps. A 20Amp breaker/fuse would risk fire. The wire gets hot enough to melt the insulation and start fire.

Can I use 14 gauge wire on a 15 amp circuit?

Selecting Wire Gauge for Outlets It’s OK to wire a 15-amp light circuit with a 14-gauge wire to save a bit of money and make the wiring job a bit easier. … You can avoid both problems by wiring the outlet circuit with a 12-gauge wire, which is optional if the controlling breaker and all the outlets are rated for 15 amps.

Can you use 14 gauge wire for outlets?

Yes you may use No. 14 AWG Cu wire for outlets but the Circuit Breaker to protect the circuit should be only 15A. Do not use 20A Circuit Breaker for this circuit. Also, use only 15A receptacles.

How many amps can 14 gauge wire carry at 12 volts?

American Wire Gauge (#AWG)Length (feet)Maximum Current (amps)151612201412251410

Can I mix 12 and 14 gauge wire on a 15 amp circuit?

It’s perfectly safe to use it. Don’t worry about confusing future workers. If they want to add something to the circuit, they will have to go turn off the circuit breaker first, and then they will see they are working with a 15 amp circuit.

How far can you run 12 gauge wire on a 15 amp circuit?

You can run a 12 gauge wire up to 70 feet on a 15 amp circuit.

Article first time published on

How many outlets can be on a 15 amp circuit?

Technically, you can have as many outlets on a 15 amp circuit breaker as you want. However, a good rule of thumb is 1 outlet per 1.5 amps, up to 80% of the capacity of the circuit breaker. Therefore, we would suggest a maximum of 8 outlets for a 15 amp circuit.

Is 16 or 14 gauge bigger?

16ga steel is . 065” inches thick, that is about 1/16th of an inch thick. 14 gauge in comparison is . 083 inches thick which doesn’t sound like much except it is almost 30% thicker (27.6% to be exact).

How many outlets can you put on a 14 2 wire?

You can use 14-2 wire to 12 outlets that are protected by a 15 Amp breaker.

How many lights can you put on 14 gauge wire?

14 gauge wire will carry 20 amps. (But see NEC, the National Electrical Code). A 100-watt- equivalent LED light consumes about 13 watt, or about 0.11 amps. So, that’s about 180 such lamps.

What happens if you oversize a breaker?

Oversizing a circuit breaker can be a safety concern. If there is a direct short in an appliance a breaker will kick off even if oversized, but if there is simply a crossed or burned wire it may not turn off. This would cause a possible shock hazard.

Can I use a 20 amp outlet on a 15 amp circuit?

If your question is “can I connect a receptacle rated for 20 amps to a circuit designed for 15 amps?”, the answer is yes, because the receptacle can handle more current than the circuit is rated for. If you exceed 15 amps, the breaker will blow, and protect the receptacle.

What is a Romex?

Romex is the trade name for a type of electrical conductor with non-metallic sheathing that is commonly used as residential branch wiring. … Romex™ is a common type of residential wiring that is categorized by the National Electrical Code (NEC) as underground feeder (UF) or non-metallic sheathed cable (NM and NMC).

Can you run 12 gauge wire on a 15 amp breaker?

Because it has even less chance of overheating, 12-gauge wire is also acceptable on a 15-amp circuit.

Can a 14 gauge wire handle 10 amps?

According to the “powers-that-be”, a 14 gauge wire can carry 20 Amps, but only as a built-in safety measure.

What wire do you use for a 15 amp circuit?

A 15-amp circuit is usually served by 14-gauge wire and is protected by a 15-amp circuit breaker or fuse. A 20-amp circuit, protected by a 20-amp breaker or fuse, must be served by 12-gauge or 10-gauge wire.

What size wire do I need to run 300 feet?

for 300 feet for 100 amp rated service I would use Aluminum direct burial 1/0-1/0-1/0-1/0, the forth can be as low as #4 for the ground (but also in conduit, even if in conduit must still be rated underground wire and required by code also) Also note the size wire the breaker can handle, cannot cut strands to make fit, …

What is 10 2 Romex used for?

Wire Gauge or TypeRated AmperageCommon Uses10-2 Romex30 AElectric water heater, baseboard heaters10-3 Romex30 AElectric Clothes Dryer6/3 Cu Range Cable50 ARange, Heatpump, On-Demand Electric Water heater2 Gauge Copper100 ACentral Electric Heat

How far will 12 gauge wire carry 20 amps?

Originally Answered: How far can you run 12 gauge wire on a 20 amp circuit? About 400 feet. After that voltage drop is a factor and the gauge will have to be increased or the voltage increased.

How many outlets can you daisy chain?

So there is no limit to the number of receptacles that can be connected to a home circuit using 14–2 wire, but there is a practical limit to how much load you can put on it. Exceed the rated load and your safety device (circuit breaker most often) which is in series with the wire will (should?)

How many Christmas lights can be on a 15 amp circuit?

So, while these homeowners could safely plug 144 strands into one 15-amp outlet in terms of total wattage, the connected lights should never go higher than 210 watts, meaning that only 21 total strands can actually be plugged into each other. Every set of 21 strands would need its own outlet, but not its own circuit.

How many outlets can you run on a 20 amp breaker?

Although the National Electric Code (NEC) doesn’t directly rule on limiting outlet installments on your circuit, it is crucial to learn its power draw restrictions. In general, you should have a maximum of 10 outlets on a 20A circuit.

Which is heavier 14 gauge or 16 gauge wire?

14 gauge is thicker than 16 gauge. Bigger speakers or long distances will be better with thicker wire. Do you find this helpful? Supposedly, the higher the gauge, the better the sound – but only to a point, as some wires loose contact or break off.

What is the difference between 12 gauge and 14 gauge steel?

In the gauge system the higher the number the thinner the steel. As an example, 12 gauge steel is thicker and stronger than 14 gauge steel. … The 14-gauge steel is the industry standard of frame thickness and the most nationally accepted gauge for carport and metal structures.

What is larger 14 gauge or 18 gauge?

18 gauge = 0.04 inches or 1.0 millimeters. 14 gauge = 1/16-inch or 1.6 millimeters. 8 gauge = 1/8-inch or 3.2 millimeters. … 00 gauge = 3/8-inch or 9.3 millimeters.

How many amps can 14 gauge Romex?

The NEC limit for 14-gauge wire is 20 amps, which means you should never use 14-gauge wire in your 240-volt circuits, only your 120-volt circuits, or the amperage will exceed the wire’s capacity.

How far apart do you staple electrical wire?

334.30 Securing and Supporting Nonmetallic-sheathed cable shall be supported and secured by staples, cable ties, straps, hangers, or similar fittings designed and installed so as not to damage the cable, at intervals not exceeding 1.4 m (4 1⁄2 ft) and within 300 mm (12 in.) of every outlet box.
