Knob-and-tube (K&T) wiring was an early standardized method of electrical wiring in buildings, in common use in North America from about 1880 to the 1940s. The system is considered obsolete and can be a safety hazard, although some of the fear associated with it is undeserved.

Does knob and tube have a neutral?

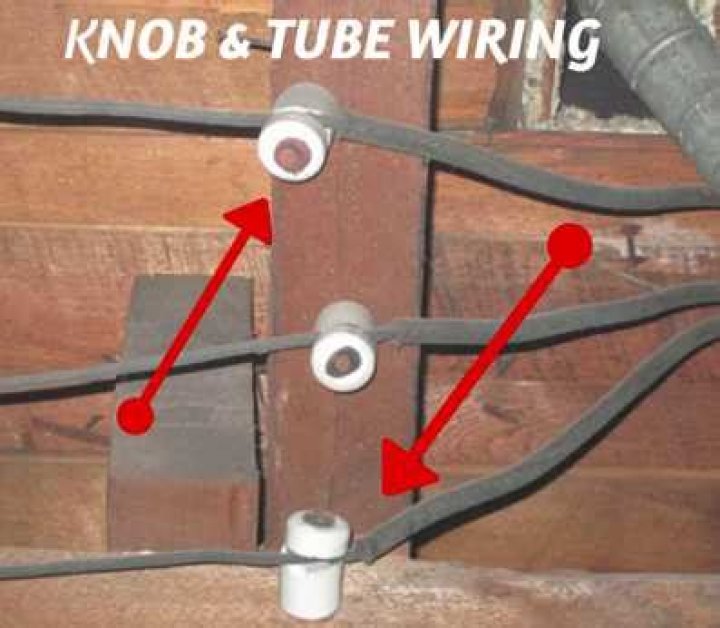

The name knob and tube derive from the physical components of the system. Common features of knob and tube wiring are that it features a hot wire and a neutral wire with no third ground wire.

Is Romex the same as knob and tube?

Knob and Tube wiring and aluminum wiring are old and unsafe, period. Romex wire is one of the better and safer alternatives for the following reasons: Presence of a ground wire. … Two layers of insulation protect the wires far better than knob and tube.

Can you connect Romex to conduit?

Yes, NM cable can be in conduit. In fact. NEC calls for it to be in conduit, when protection from physical damage is required.

Why is knob and tube bad?

Knob and tube lacks a ground wire, making it incompatible with modern three-prong appliances and devices. This puts electronics at increased risk of damage and your family and home at greater risk for shock and fire. Knob and tube is not rated for use in moist environments.

Does a two prong outlet mean knob and tube?

These days, knob and tube systems are rarely installed or even re-wired. … As a consequence of its two-wire system, homes with knob and tube outlets can only have two prongs, never three. Having a three-pronged outlet or two doesn’t necessarily mean you don’t have this form of wiring, however.

Does FHA allow knob and tube wiring?

The circuit or fuse box must be in good condition without any exposed wires. Old-style knob-and-tube wiring gets inspected to make sure it is in satisfactory condition.

What year did they stop using knob and tube wiring?

“Knob and tube” was the most cost-effective way to wire a home from about 1880 to the 1930s. It began gradually being phased out through the 1940s, displaced by electrical cables that bundled hot and neutral, and eventually ground, wires in a single flexible sleeve.

Is knob and tube wiring up to code?

Currently the NEC code and most local jurisdictions do not specifically say that knob and tube wiring is illegal, however they do have some very specific requirements if it is to be left installed and in use (NEC 2008 – article 394). … Knob and tube wiring is only rated to be used in free air, un-insulated spaces.

Does Romex need conduit?

Code and common sense both dictate that Romex shouldn’t be left exposed but must run through conduits. If you are running it through the basement or attic (or both), the wire must past through studs or be secured on top of joists or trusses.

Article first time published on

Why is MC cheaper than Romex?

When it comes to pure MC cable versus Romex cost, Romex is about 25% cheaper than MC cable due to the fewer source materials and lower shipping costs. In terms of installation, Romex can cost more than MC cable if a protective conduit is required.

Why is Romex illegal?

Staffers there said house wiring known by the brand name Romex can be dangerous if the insulation is gnawed by rodents or punctured by nails. They said the flexible insulation on the cable lacks the protection of conduit, the rigid metal tubes that encase wires.

Can you buy a house with knob and tube wiring?

Yes, you can…. You just need to update it after your purchase it or better yet, here’s the idea: When negotiating to buy the house, ask the seller to reduce his price based on work to be done to replace knob and tube wiring, convince the seller that that is not legal on houses anymore…

Can Romex be exposed in garage?

No, you cannot expose Romex wires or non-metallic sheath wires in the detached garage or anywhere. Because it’s not safe to expose it on the outside. Besides, it goes against the National Electrical Code or NEC.

Does Geico insure knob and tube?

Geico Insurance “We work as an agency with a number of underwriters. While most of them do not accept knob and tube wiring, we do have one that will insure knob and tube in some cases. For your convenience please visit our website.

Can you put insulation over knob and tube wiring?

The existing knob and tube wires could be covered with a box large enough to maintain three inches of air space around each conductor, and then insulation could be spread over that. … This type of wiring system can be buried in insulation, and it does carry a grounding conductor for shock protection.

How much does it cost to update knob and tube wiring?

According to Networx, the average cost of replacing knob and tube wiring in a two story home could be in the range of $7,000. It’s important to hire a certified electrician and follow building code. Replacement of knob and tube wiring is costly, but it’s a good investment.

Does FHA require GFCI outlets?

6. GCFI outlets – while the FHA no longer requires GFCI outlets, many appraisers will defer to the local building code when calling for replacement. In most municipalities, a GCFI outlet should be installed if the outlet is within 6‐feet of any water source.

Is a fireplace considered a permanent heat source?

Definition of Permanent Heat Source This would include forced warm air heated by gas or electric, radiant heat, baseboard units heated by electric, or installed wall units. Sources such as space heaters that are not installed or fireplaces and wood stoves would not fit the description of permanent and self-fueled.

Are ungrounded outlets knob and tube?

‘Knobs’ are ceramic knobs connected to the house framing to hold the conductors in place. … Knob and tube wiring doesn’t have a separate grounding conductor, so it’s largely an ungrounded system. Some homes may still have grounded receptacles through a separate wire run to a nearby metallic water line, however.

What gauge wire is knob and tube?

Knob and tube wiring is often #12 gage copper wire and can handle 20 amps. Note: Even though some knob and tube wiring is capable of handling 20 amps, we suggest that it be protected by 15 amp fuses because, in all likelihood, some modern #14 gage wire may be connected to the older #12 gage wiring.

How do you cap off knob and tube wiring?

You can cut them back to the nearest knob, with a couple of inches to spare, then double back the wire and tape it well to the wire on the other side of the knob. That will satisfy the inspector. If there won’t be an inspection, then at least fold over the end of the wire and tape it.

Can Romex be run exposed?

No. Romex is not allowed to run exposed in any situation. In a dry, exposed area, you can use MC cable and metal boxes. In a damp area as your patio cover could be, you could use non-metallic seal-tite or the trade name is Carflex or EMT.

Can you use Romex in basement?

Romex is fine when it is inside a wall/ceiling/floor because it is protected from puncture/cuts/etc. but if it is just running along the exposed walls of a basement that is not up to code.

Can Romex touch concrete?

Yes, Romex can pass through concrete without any additional protection, but it should not be exposed to a situation where it may suffer physical damage.

Can you put a plug on Romex wire?

You can but shouldn’t. NMC (Romex®) is not flexible as it uses solid, not stranded conductors so is not approved for portable service. That said, I have done it temporarily on a job site. The correct cable to use for portable use is type S, SJ, SJO, SJT, etc.

How many 12 AWG wires can you put in a 1 inch conduit?

Size and Type of Conduit14 AWG Wire12 AWG Wire1/2-inch EMT1293/4-inch EMT22161-inch EMT35261 1/2-inch EMT8461

Why has Romex doubled in price?

These price increases are due to factors such as China’s economic recovery from the pandemic, sustainable green energy stimuluses, and supply disruptions. China’s rising industrial production along with aggressive sustainable energy initiatives accredits the country to being the highest consumer of copper in the world.

Is Romex wire copper?

Romex Wires are non-metallic wires that are commonly used for electrical wiring in homes. Romex consists of one or more copper wires, a neutral conductor and a ground wire. The copper wires are individually insulated and the entire bundle of wires is sheathed in a plastic coating.

Why did Romex wire go up in price?

The coverings are made from Petroleum products and as the price fluctuates with that the price varies as well not just the price of good copper. Because of supply and demand in the copper market. In the last 5 years copper prices have quadrupled.

What happens if you put Romex in conduit?

The answer is a resounding yes. In fact, the National Electrical Code (NEC) calls for all non-metallic wires to be used in conduits to avoid protection from physical damage; especially if stripped.
