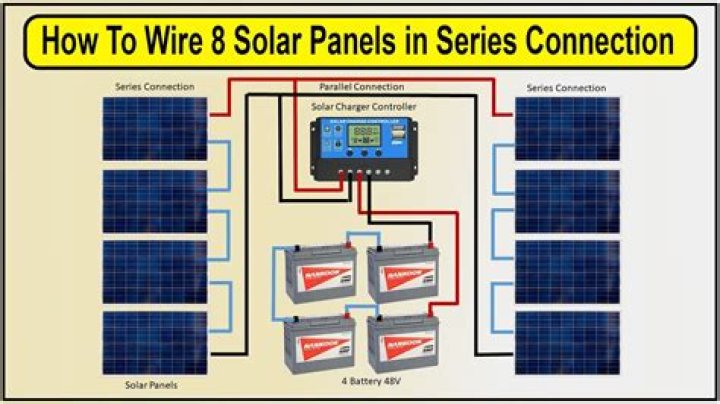

Solar panels are wired in series when you connect the positive terminal of one panel to the negative terminal of another. When solar panels are wired in series, the voltage of the panels adds together, but the amperage remains the same.

Do solar panels need wires?

To have a functional solar PV system, you need to wire the panels together to create an electrical circuit through which current will flow, and you also need to wire the panels to the inverter that will convert the DC power produced by the panels to AC power that can be used in your home and sent to the grid.

Can you get shocked by a solar panel?

The panels will still generate DC power and can cause a shock. If the solar system has a battery backup, it will also continue to produce power. Remember, as long as the sun is shining, solar panels will stay energized.

What wires do solar panels use?

There are two types of wire commonly used in solar farms: PV wire and USE-2 wire. They can both be used in grounded arrays, but only PV wire can be used in ungrounded ones. PV wire is used for interconnecting PV modules, and was developed to be able to handle 90°C in wet conditions and 105°C in dry conditions.

Where do solar panel wires go?

The simplest possible solar battery charging circuit is just to connect the positive wire from a solar panel to the positive battery terminal, and the negative solar panel wire to the negative battery terminal.

Can I use speaker wire for solar panels?

Yes indeed, the ‘speaker wire’ will likely handle the current, but I also agree that the insulation will not handle the heat on the roof.

Can all solar panels be wired in series?

If you are wiring your solar array in series, all of the panels should have the same current rating. The voltages will still add together, but the current output will be equal to the lowest-rated panel in the series.

Why solar energy is bad?

However, some toxic materials and chemicals are used to make the photovoltaic (PV) cells that convert sunlight into electricity. Some solar thermal systems use potentially hazardous fluids to transfer heat. Leaks of these materials could be harmful to the environment.

Can you join solar cable?

If you have two or more solar modules to wire in series, the solar connectors make it very simple. … A series connection is when you wire the modules together by connecting the positive lead on one module to the negative lead on another module. The male connector will snap directly into the female connector.

Is solar electricity safe will it burn us?

Overall, the small risk of your solar system causing a fire is, for most people, not enough to turn them off to installing solar altogether. It’s no riskier than any other electrical system within your building.

Article first time published on

What are the dangers of solar panels?

• Strains.
• Sprains.
• Muscle pulls.
• Back injuries.

Can I hook a solar panel directly to a battery?

A solar panel can be connected directly to a 12 volt car battery, but must be monitored if it’s more than 5 watts. Solar panels rated higher than 5 watts must not be connected directly to a battery, but only through a solar charge controller to protect against over-charging.

What is string in solar?

A series-connected set of solar cells or modules is called a “string”. … This is electrically identical to the case of one shaded solar cell in series with several good cells, and the power from the entire block of solar cells is lost.

How do solar panels get wired?

Solar panels are wired in series when you connect the positive terminal of one panel to the negative terminal of another. When solar panels are wired in series, the voltage of the panels adds together, but the amperage remains the same. … Putting panels in series makes it so the voltage of the array increases.

How many solar panels would it take to power a house?

We estimate that a typical home needs between 20 and 25 solar panels to cover 100 percent of its electricity usage. The actual number you’ll need to install depends on factors including geographic location, panel efficiency, panel rated power, and your personal energy consumption habits.

How many volts does a 100W solar panel produce?

When a 12V solar panel is rated at 100W, that is an instantaneous voltage rating. So if all of the test conditions are met, when you measure the output, the voltage will be about 18 volts.

How many amps does a 100w solar panel produce?

A 100 watt panel produces an average of about 6 amps per peak sun hour, or about 30 amp-hours per day. Given the above example, you would need three 100 watt solar panels to fully recharge on the average day (80 / 30 ≈ 3).

Can I run 12v through speaker wire?

You can definitely use speaker wire for 12v power. The only factor to consider is the wire gauge. Various gauges will allow for higher or lower amperage, which, when multiplied with volts (in our case 12v), will give you the electrical load (watts) that the electrical device or appliance should be.

Do speaker cables carry power?

Speaker wires carry whatever level of voltage that comes out of the amplifier they are connected to. For a 100-watt amplifier that is driving an 8 Ohm speaker, the voltage that will be transmitted through the speaker wires would be about 30 volts. This voltage is entirely dependent on the power rating of the amplifier.

Can you bury solar cable underground?

Run the wire from the solar to an above ground junction box and connect it to UF 6AWG to 10AWG cable as required. … Yes, you can bury it in the ground.

Are all solar connectors the same?

These solar panel connectors are available in male and female types made to snap together. Connectors are of various types, the major ones being MC3, MC4, PV and Tyco Solarlok. Similarly, they come in many shapes such as T-Joint, U-Joint, X-Joint or Y-Joint. The most common type of solar connector is the MC4 connector.

What is the biggest problem with solar energy?

The Disadvantages of Solar Energy One of the biggest problems that solar energy technology poses is that energy is only generated while the sun is shining. That means nighttime and overcast days can interrupt the supply.

What happens to solar panels after 25 years?

In reality, solar panels can last quite a bit longer than that: the warranty typically guarantees panels will work above 80% of their rated efficiency after 25 years. A study by NREL shows that the majority of panels still produce energy after 25 years, albeit at slightly reduced output.

What is the lifespan of a solar panel?

But the solar panels generating that power don’t last forever. The industry standard life span is about 25 to 30 years, and that means that some panels installed at the early end of the current boom aren’t long from being retired.

Do solar panels start fires?

Solar panels pose an extremely low fire hazard. In fact, Photon magazine has recorded no more than 1 incident per 10, 000 installations. So a house equipped with properly installed solar panels will not catch fire. First off, it must be noted that photovoltaic solar panels cannot start a fire in and of themselves.

Can a solar panel explode?

Solar panels may not produce as much energy as traditional power sources, but you can’t point those other sources at the sun and get free electricity either. Solar panels aren’t dangerous; they can’t explode when you drop them and they can’t set your house on fire.

Why are solar panels exploding?

Old solar hot water systems Older solar hot water systems which see infrequent use can form a calcium buildup which blocks valves, leading to an explosion. Thermal panels can freeze in colder areas, leading to expansion and small explosions, such as these panels bursting in Victoria.

What are the 2 main disadvantages to solar energy?

However, solar energy does still have significant disadvantages which we should be aware of. The 2 main disadvantages of solar energy are dependence on weather conditions and the inability to store electricity. Solar energy output depends mostly on direct sunlight.

Can solar panels attract lightning?

Solar panels do not attract lightning, but they can still get damaged when hit. … Both direct and indirect lightning strikes can result in solar panel downtime and damage. Direct strikes, although rare, can melt your panels and inverters. Indirect strikes, on the other hand, are much more common.

Are solar panels good for your health?

Some solar PV technologies contain heavy metals that are considered toxic to humans if ingested in high doses or through prolonged exposure. The most common heavy metals used in a certain type of PV technology, referred to as ‘thin film’ technology, include cadmium, indium, gallium, and selenium.

Can solar panel power fridge?

As a general rule, 100 watt solar panel can run a refrigerator for a short time only and would also need a battery. 100 watts of solar panels can generate on average 400 watt-hours of energy per day. A refrigerator with combined freezer needs 2000 watt-hours/day.
