Good drainage is important to ensure that a home stays dry and free of mold. … The old way of installing French drains is to do it without the gravel and the fabric. Without the gravel and the fabric, however, the drain can clog up with sand and soil over time.

Why do you need gravel for a French drain?

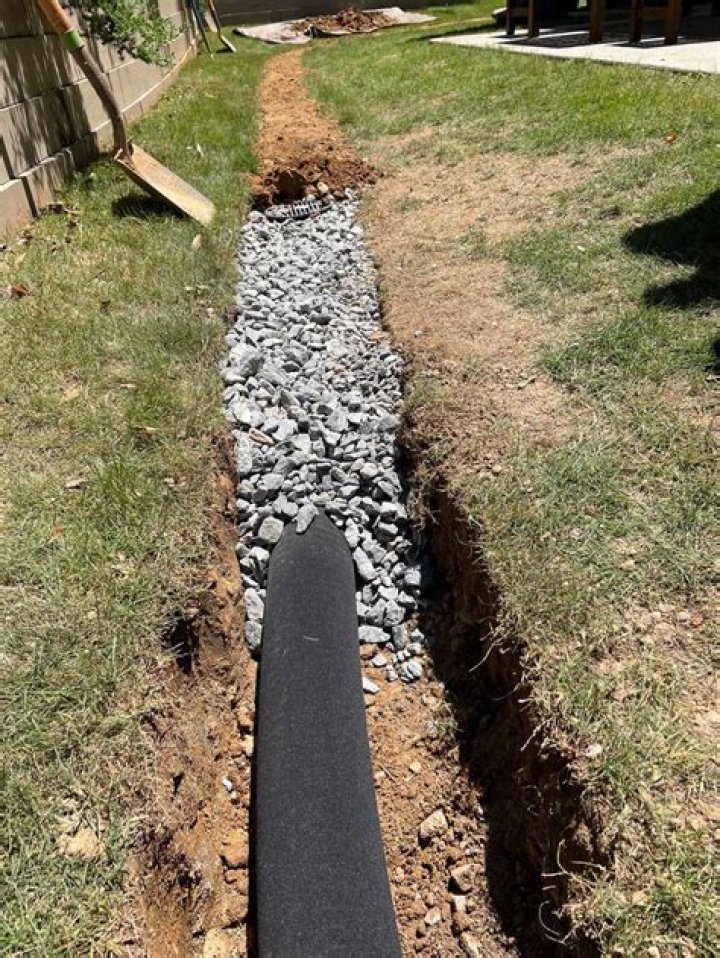

A French drain or a drain tile is built by filling a trench with gravel and a perforated pipe is used at the bottom to divert underground water. A geotextile fabric wraps the pipe and gravel acting as a sieve where fine sediments will not pass to the area where the gravel is located.

What kind of gravel do I need for a French drain?

The stone should be no less than ¾” and dense (we suggest Granite, or River Gravel) so it will allow good water flow. Lime Rock, although inexpensive, is a poor choice for a French Drain because it will begin to deteriorate over time and eventually begin to pack down and restrict flow.

Does a French drain need rocks?

Proper drainage rock is crucial for adequate permeability and drainage. Using a clean natural round stone for your drain fill material enables good flow through the aggregate and won’t clog the system. … Avoid Crushed Rock (minus) that compacts and has “fines” that will clog pipe inlets.

What materials are needed for a French drain?

• Clean or washed gravel (not crushed limestone – it becomes cement like)
• Permeable landscape fabric (they kind water passes through)
• Rigid plastic perforated drain pipe (not flexible corrugated pipe – read why not)

Can you cover a French drain with grass?

The simplest drain is a classic French drain, which is nothing more than a trench filled with coarse stone or gravel. … The drain can be left open or, if aesthetics are a concern, can be covered with a couple of inches of topsoil and sod.

How deep should French drains be?

French drain depth: About 8 inches to 2 feet deep should be sufficient for many water-diverting projects, though related systems, such as those built around foundations and sub-ground living spaces, as well as the bases of retaining walls, may be deeper.

Can I use pea gravel for a French drain?

Do NOT Use Pea Gravel, Pea Pebble, Pea Stone When Building a French Drain. When building a French drain, you want to use a coarse rock that has been screened and washed. The rock that you see in this French Drain is 3/4″ and larger. You end up with large voids that’ll move far more water.

How much gravel do I need for a 100 foot French drain?

How much gravel do I need per foot of French drain? You would need around 0.72 cubic feet of gravel per foot length of French drain for a typical French drain width of 10 inches and a depth of 12 inches if you’re using a 4″ drain pipe.

Can you cover a French drain with dirt?

Can I cover a French drain with dirt? Because a French drain has holes throughout the pipe which allow it collect water, you should not install dirt on top of the drain pipe. Installing dirt will clog the pipe and the holes, rendering it useless.

Article first time published on

Can I use #57 gravel for French drain?

For large projects, such as a gravel driveway, pour a 3–4-inch deep layer of #3 gravel. Then, top it off with 2–3 inches of #57 gravel. … You can use #57 gravel for paths and small runoff drains. For larger and more complex drains, such as a french drain, we recommend #3 crushed stone.

Does a French drain need an outlet?

A properly designed French drain system does not require an outlet. The water will simply soak into the soil as it flows along the perforated pipe. In fact, a French drain doesn’t require an inlet on just one end either. You can construct the drain to accept water along its length, and disperse it underground.

Why do French drains fail?

Over time, a French drain may become clogged. Tiny soil and clay granules slip through the pores of the landscape fabric and gradually build up inside the pipe. Another common cause of French drain clogs is root intrusion from grass, shrubs, and trees.

How do you layout a French drain?

1. Plan the Location. Figure out where the excess water is pooling and where you want it to go. …
2. Dig a Trench. …
3. Line the Trench with Filter Fabric. …
4. Pour the Gravel Bedding. …
5. Hook Up the Pipe Connections. …
6. Set the Pipe Drain in the Trench. …
7. Cover with Gravel and Filter Fabric. …
8. Backfill with Topsoil.

How far does a French drain need to be from the foundation?

We recommend installing the french drains between 2 and 5 feet away from the foundation. There are a few variables that impact the exact distance to dig the new drain lines to carry water away from your home. Finding the right distance: Check where water is pooling naturally during heavy rains.

Can a French drain be too deep?

While you dig, you may encounter gas and water lines, electrical wires, and sewer pipes, all of which pose hazards. It’s also important not to dig too deep. If the drain is dug below the level of the footer, it may undermine the foundation, causing the home to settle.

Do French drains really work?

How Effective is a French Drain System? French drain systems are incredibly effective because, unlike typical surface drains, they collect water over the entire length of the drain as opposed to one dedicated area. The force of gravity helps to guide water along a reliably smooth path to a desired discharge point.

How much does it cost to install a French drain?

French drain Installation PricesMinimum cost$2,000Maximum cost$10,000

How long should a French drain be?

The average French drain should be about eight inches to two feet deep. Systems built around foundations, retaining walls, and sub-ground living spaces may need to be deeper. Pipe length. This factor depends on specific elements of the project.

How do I put drainage in my yard?

1. Reduce Your Watering Schedule. …
2. Extend Your Downspout. …
3. Dig a Creek Bed or Swale. …
4. Construct a Rain Garden. …
5. Install a French Drain and/or Dry Well.

Can you use landscape fabric for French drain?

The best type of fabric for a drainage project such as a drain field or french drain is non-woven geotextile landscape fabric. If you’re project requires high strength and also good drainage then a high end combination woven fabric could be suitable for your application.

How much water can a French drain handle?

Generally, a French drain should drop at least one percent in depth for every 100 feet of length.

What is the best aggregate for drainage?

In general, you want to aim for ½ inch to 1-inch gravel for drainage. Areas that will see especially heavy flow may need larger gravel. Or, projects without drainage pipes may also need larger gravel. For example, a French drain without perforated pipe needs 1 ½ inch gravel.

Will water drain through pea gravel?

Pea gravel is laid first, then your pipe. Being careful not to injure the pipe, drainlayers form a layer of larger stone on top of the pipe then finish with a layer of pea gravel. The large stone on the bottom helps give maximum drainage while the smaller pea gravel on top makes laying sod over the drain possible.

Will gravel stop water?

Water moves through gravel a lot faster than it does through the majority of soil and other materials. … When it comes to drainage material layer size, typically a two- to three-inch layer of gravel will effectively deter water buildup.

Can you put rock over French drain?

Hard rocks such as granite or river gravel prove viable options for a French drain because they won’t break down over time as much as other rock varieties, such as sandstone and limestone.

How often should French drains be cleaned?

Despite the design’s best efforts, French drains get clogged by dirt, debris and silt. They do need to be cleaned out regularly – about once per year – to ensure that they continue to direct water away from the building’s foundation. The best way to clean a French drain is mechanically, using an electric snake.

How do you keep animals out of drain pipes?

1. Cover Up Pipe Openings. …
2. Seal Up Cracks and Openings. …
3. Trim Trees and Shrubs Around Your Home. …
4. Clean the Drain. …
5. Remove any Food.

How do you drain water away from a house foundation?

Proper drainage is the best way to keep water away from your home’s foundation. Install a French drain system around the house foundation – Dig a trench around the foundation, line it with gravel, and place a drain with perforations in it to pull the water away. Cover the drain with gravel and add soil over it.

What does a French drain connect to?

An outdoor French drain is a trench you cover in rocks. It’s connected to pipes to guide water away from your home. The first part of French drains is the elevated or higher end, referred to as a drain field. The drain field is where the groundwater or excess surface water enters the drainpipes.

Should a French drain have standing water?

French drains are designed to collect rainwater and channel it downhill. If surface water is standing in low areas of the yard that are supposed to flow into your French drain, you have a drainage problem. If the low areas of your yard are as firm and dry as higher spots, then your French drain is working as expected.
