Note: The NEC and many jurisdictions REQUIRE the installation of a 120V outdoor GFCI outlet. It is to be located 10-20 feet away from a spa or pool, for safe operation of corded appliances.

Is it safe to use a hot tub without a GFI?

According to the National Electrical Code, any outlet that supplies a hot tub or spa must be GFCI protected.

Can you plug a hot tub into a regular outlet?

One of the nicest things about 110v or “plug and play” hot tubs is that once it’s sitting in your backyard, all you have to do to enjoy it is fill it up and plug it in. You don’t need to hire an electrician and hard wire anything. Because it only draws 11 amps, it can be plugged into a regular outdoor outlet.

Do you need a special electrical outlet for a hot tub?

Most hot tubs require a 240v electrical hookup—which for most people means you have to call an electrician and have new wiring done. However, a Plug n’ play spa runs on standard 110V power, which can be plugged into most standard household power sources without the need for additional wiring.

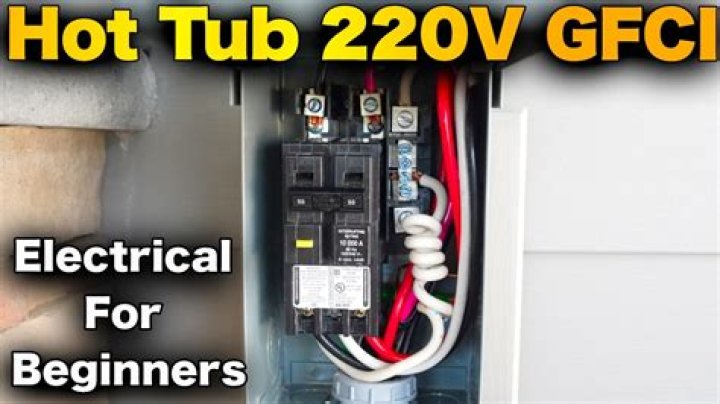

What is a GFCI for hot tub?

Why Does A Hot Tub Need A GFCI Breaker? A hot tub needs to have gfci protection to protect you the user in the event of a malfunction of the electrical circuit supplying it. This is to prevent electrical shock. All building and electrical codes state that the electrical device.

Does a plug and play hot tub need a dedicated outlet?

120-VOLT PLUG & PLAY SPAS These spas come with a GFCI protected plug that should be plugged into a standard dedicated outlet as mentioned above. OUTLET SHOULD BE WITHIN 5-10 FEET OF THE SPA for use with supplied cord. Total supplied cord length is 15 feet.

What are the electrical requirements for a hot tub?

What are the Electrical Requirements for hot tub installation? Hot tubs either require 110V or 220V of electricity. If you choose a 110V model— often referred to as “plug-and-play”—then you may be able to simply plug the spa into an electrical outlet in the backyard.

Does a 110 hot tub need its own circuit?

110v units do require a dedicated outlet so it is important to identify a proper outlet that isn’t shared with any other outlets in the home. … Most 110v plug and play hot tubs can be easily converted to run on 220v which can provide advantages such as the ability to run your heater and motor at the same time.

Can a hot tub run on a 30 amp breaker?

Yes, you can run many spas on 30 amps, and just as you have said, the heat will go off when the jets are on.

Does a Jacuzzi tub need its own circuit?

Use a Dedicated Circuit The whirlpool tub motor must be wired to its own dedicated circuit in the service panel. If your whirlpool tub has a heater, that must have its own dedicated circuit, as well. Tubs requiring 240 volts must be directly connected to the power supply.

Article first time published on

Can you run a hot tub with an extension cord?

Never use an extension cord for your best hot tub. The cord provided with your spa is the proper length and gauge for current to travel safely from the electrical outlet to your spa. An extension cord forces the current to travel a longer distance and may result in a voltage drop or the cord overheating.

What size GFCI do I need for a hot tub?

The National Electrical Code (NEC) requires: Hard-wiring the spa into a ground fault circuit interrupter (GFCI)-protected 220 to 240V, 50- or 60-amp dedicated circuit.

Why is there no power to my hot tub?

Check the main circuit breaker that provides power to the spa. This may be located in the home main panel, or inside a smaller panel near the hot tub. … If the breaker begins to repeatedly trip (known as nuisance tripping), it may need to be replaced, or there could be voltage irregularity.

Do you need a sub panel for a hot tub?

You May Need an Electrical Subpanel If your spa or hot tub is 220 volt, we’ll need to install a subpanel with a GFCI circuit breaker to comply with UL listings from the manufacturer (and protect your hot tub from unusual fluctuations or deviations in your power supply).

What type of breaker do you need for a hot tub?

The most valid answer to the question, “What size breaker do I need for a hot tub?” is 50 amps. This is, of course, assuming you also have a standard 40 amp, 220V, or 240V hot tub. A 50 amp hot tub breaker is fairly common among homeowners, as are 40 amp and 60 amp varieties.

Do I need 200 amp service for a hot tub?

If you wish to install a hot tub, have electric heat or have a small shop 200-amp service is recommended. If you are not a high user of electricity, 100-amp service may suit you just fine or your electrician can install a sub panel as well.

Do you need a disconnect for a hot tub?

An emergency switch for spas and hot tubs is required by 680.41. … It must be readily accessible, within sight and not located closer than 5 feet from the inside walls of the spa or hot tub. This rule applies to all occupancies except one-family dwellings. A disconnecting means for motors is required by 430.102.

Can you run a hot tub on 100 amp service?

How Many Amps for a Hot Tub? The normal power supply for a hot tub or spa is 220/240 volts and somewhere in the range of 30-60 amps. … Your electrical service must be able to supply that load, but almost all houses built in the last 40 years will have at least a 100 amp service.

Do I need a concrete slab for a hot tub?

A hot tub requires a stable surface — whether it’s a concrete slab, reinforced deck, or firmly compacted soil with crushed gravel. There’s also the option to have the hot tub installed in the ground but that still requires a concrete vault.

How much does it cost to install a 220 outlet?

Installing a 220/240-Volt Outlet Average costs for a journeyman electrician to install a 220/240-volt outlet is about $300.

Does a hot tub need 220v?

All hot tubs require electricity. Regular hot tubs run on 110 volts, while an electrical hot tub runs on 220 volts. Electrical hot tubs will provide more power to the hot tub’s heater and jets.

Can a hot tub share a circuit?

You cannot share that circuit. For one thing, you wouldn’t be able to run the air conditioner and the hot tub at the same time, but the other thing is it could be dangerous. So you have to direct wire or home run, as it’s called, the circuit right from the hot tub into the main electric panel.

How many amps does an inflatable hot tub use?

This may seem slow but is a fairly standard temperature build curve on all inflatable hot tubs. Remember this is a large volume of water and that the heater runs from a 12 amp outlet. Once up to temperature though the heater can easily and quickly maintain it.

What amps does a hot tub use?

Amps or ampage is the power required for each hot tub to perform, 13 amp is the same power as you may already be accustomed to within most standard homes, whilst a 32-amp supply is more powerful and may require a specific installation by a qualified electrician.

What size breaker do I need for a 110 hot tub?

BREAKER AMPERAGE 110 volt hot tubs can use 20 or 30 amp breakers. Most people have one or two in their breaker box. Either that, or your 110 volt spa comes with its own cord and GFCI (ground fault breaker) making this type of spa a perfect option for renters since you don’t have to alter any electrical wiring.

How far away does a GFCI have to be from an outdoor hot tub?

Note: The NEC and many jurisdictions REQUIRE the installation of a 120V outdoor GFCI outlet. It is to be located 10-20 feet away from a spa or pool, for safe operation of corded appliances.

Should I leave my hot tub on all the time?

One question we sometimes get asked is should I leave my hot tub on all the time? The answer is yes! Hot tubs are designed to be left on permanently and this is how they work best. Of course, they’ll need to be drained regularly but for the most part, they are left on 24/7.

Do I need an outdoor socket for a hot tub?

If you’re looking for a 32A hard-wired hot tub which generally will have higher performance for a more powerful hydrotherapy massage, you need a different type of outside socket. The hot tub needs to be protected by an MCB (mains circuit breaker) and needs to cover the maximum amperage of the hot tub (ie. …

Do lazy spas use a lot of electricity?

On an energy tariff of around 12-13p per kWh. You can then work out how much the electricity tariff will be by taking a look at the watts required for your model. For example, the Lay-Z-Spa Cancun uses a voltage of 2,050 W at 20 Celcius, which is 2.05 kWh.

Can I use a 60 amp breaker for a 50 Amp hot tub?

Most spas will run effectively on a 50amp 2 pole main circuit breaker. Some spa manufacturers require a 60amp breaker. Although some manufacturers state their spas can use 8 guage wiring for a 50amp circuit, we recommend 6 gauge wiring on all 50/60 amp installations.

How far does a GFCI have to be from a hot tub Canada?

The National Electrical Code in Canada specifies that a manual disconnect device for your hot tub be installed at least 10 ft. away, and within line of sight of the spa for safety.
