If the clutch pedal in your Jeep Wrangler begins to feel spongy, you have difficulty shifting and sometimes the gears in the manual transmission grind, you may need to adjust the clutch. Bleeding or adjusting the clutch can be done in less than 30 minutes using simple tools. …

Can a Jeep Wrangler clutch be adjusted?

If the clutch pedal in your Jeep Wrangler begins to feel spongy, you have difficulty shifting and sometimes the gears in the manual transmission grind, you may need to adjust the clutch. Bleeding or adjusting the clutch can be done in less than 30 minutes using simple tools. …

How do you know when your clutch is out of adjustment?

1. Acceleration Problems. Oftentimes, a clutch that is wearing down won’t catch, and you will end up with acceleration problems. …
2. Hard Gear Shifts. …
3. Slipping Clutch/Gears. …
4. Squeaking/Grumbling Noises. …
5. Stickiness or Sponginess.

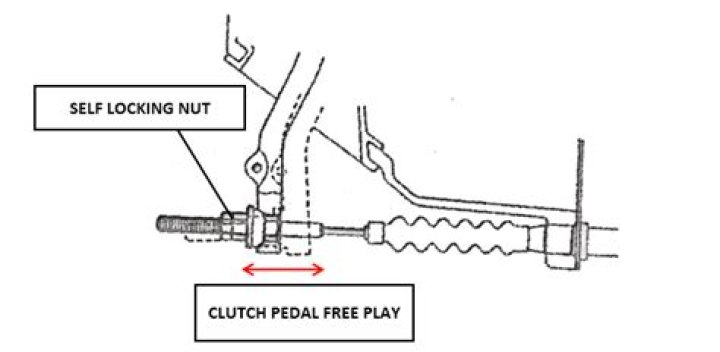

Can a clutch pedal be adjusted?

To adjust, simply pull up on the clutch cable and loosen the locknut and the adjuster nut slightly. … While keeping pressure on the clutch cable so it’s in that exact position, tighten both the locknut and adjuster nut so the cable holds in that position. Your clutch pedal should now be in the optimal position.

How much does it cost to get a clutch adjusted?

Labor adds significantly to the clutch replacement cost when you entrust it to professionals. Total labor costs will vary between $500 and $700, making for a total repair cost that can fall anywhere between $600 and $1,1000. Common prices do not fall outside $700-$900.

Can you adjust the biting point on a hydraulic clutch?

Still, you may not feel comfortable with the clutch biting point and want to change it. In this case, the options are limited as the hydraulic clutch itself is simply not adjustable. The system can be bled to correct the height of the biting point is too high.

Why is my clutch pedal so low?

These are the most common causes of lowered clutch pedal position you should know about: Improper clutch repair. Hydraulic fluid leaks. Air bubbles in the hydraulic fluid lines.

How much play should be in a clutch pedal?

Your clutch pedal should move down three-quarters of an inch to 1 inch without effort and then require a good deal more effort to travel the rest of the way down to the floor. This pedal free-play ensures that when you release the pedal, the clutch disk is fully engaged.

When making a clutch adjustment it is necessary to?

1. A. Measure clutch pedal free travel.
2. Lubricate the clutch linkage.
3. Measure flywheel clearance.
4. Place the transmission in reverse.

How do you bleed a clutch with no pressure?

Fill reservoir, Depress clutch pedal (person 2 or use a bar to block pedal down) Open bleed valve, close as soon as pressure goes, ( a pipe into a jar is good to keep area clean) Release pedal, wait 3 seconds then depress and hold again.

Article first time published on

How do you bleed a clutch?

1. Jack up the front of the car.
2. Open the hood.
3. Remove the cap from the clutch fluid reservoir. …
4. Screw the pressure bleeder onto the top of the reservoir.
5. Pump the clutch a few times.
6. If using a power bleeder, watch the gauge and pump it to a PSI of about 12.

Why is my clutch biting point so high?

A bite point that is high up the clutches working travel (close to where the clutch stops before removing your foot) may be an indication that the clutch is worn and close to need replacing. This is only an indication however as it may simply need adjusting as every cars bite point is in a different location.

Should a clutch be high or low?

In normal use the clutch is biting point should be used a little as possible and only for moving off. So it is better to hold the car on the brakes until ready to move off.

Why is my clutch grabbing?

Why does a clutch grab? … Apart from the clutch itself, poor engine setting or worn engine or transmission mounts can prevent smooth clutch engagement. Other possible causes for grabbing clutches are installation of the wrong clutch disk or incorrect installation.

How many miles should a clutch last?

Most clutches are designed to last approximately 60,000 miles before they need to be replaced. Some may need replacing at 30,000 and some others can keep going well over 100,000 miles, but this is fairly uncommon.

How do I know when I need a new clutch?

1. 1: That spongy feeling. Many of us drive our vehicles every single day so diagnosing clutch failure at an early stage could be easier than you think. …
2. 2: Burning smell. …
3. 3: Difficulty changing gears. …
4. 4: A higher biting point. …
5. 5: Visible damage.

How much does a new clutch pad cost?

Answers: Clutch plate cost is Rs. 1700 , pressure plate cost is Rs. 1400 & clutch release bearing cost is Rs. 1700 & the labor cost is Rs.

What can too much clutch pedal free play cause?

Clutch Pedal Play and Adjustment. Too little clutch pedal play leads to clutch slip, but too much clutch pedal play can lead to clutch drag. If your clutch system doesn’t automatically adjust, or there’s an issue with your clutch linkage in an automatic adjusting system, you may find and, possibly, fix the problem.

Why does my clutch pedal go all the way to the floor?

Broken Clutch Cable: The most common reason to have a clutch pedal that goes all the way to the floor is a broken clutch cable. This is extremely common, particularly on older cars. … Low Fluid: If you have a hydraulic clutch, there are a couple of other things it could be. One is low fluid in the master/slave cylinder.

How do I get the pressure back in my clutch?

Open the bleeder valve and allow the fluid to run out until it slows down, while your friend maintains pressure on the clutch pedal. When the fluid flow slows, while your friend still has pressure on the clutch pedal, close the bleeder valve. Let the clutch pedal back up and repeat the process.

How do you loosen a stiff clutch pedal?

The only solution to a worn, hard clutch, is to replace it’s 3 parts: pressure plate, disc, and bearing; it’s a lot of work because the gearbox needs to come out, so DO NOT ride the clutch; keep you FOOT OFF of it as much as possible, and take off with minimum gas, (ATTENTION»»»: do not stall it!

Where is the clutch biting point?

Finding the biting point Place your right foot to the accelerator pedal and hold it steady. As you slowly start to lift your left foot off the clutch, you’ll feel the engine and wheels starting to engage and may see the front of the bonnet rise a little.

How do you adjust the engagement point on a hydraulic clutch?

Hydraulic clutches are generally not adjustable in the same way that a cable clutch is. The only adjustment is in the height and free play of the pedal itself. This can be adjusted typically using a nut at the top of the clutch pedal lever.

What does a low biting point mean?

Yep, a high bite point is a sign of a worn clutch – a low bite point indicates problems with clutch release.

What squeezes the clutch disc to flywheel?

When the clutch is engaged, the disc is “squeezed” between the flywheel and pressure plate, and power from the engine is transmitted by the disc’s hub to the input shaft of the transmission. In layman’s terms, a pressure plate is a spring-loaded “clamp,” which is bolted to the flywheel.

Should my clutch pedal have play?

Most brake and clutch pedals should have just a little bit of free play, usually about a centimeter, which is less than half an inch. If you feel that your free play is more generous than this, or that you don’t have any at all, you’ll need to adjust your pedals.

Why is clutch free pedal play important and how it is adjusted?

Anything less than the correct amount of free play (or clearance) will result in clutch slip, because the pressure plate will be unable to exert its full pressure on the friction plate. Failure to cure this fault will quickly lead to a burned-out friction plate, and possibly a ruined pressure plate.

How do you check clutch performance under load?

Drive with the car in 3rd or 4th gear and, with your foot still on the accelerator, push the clutch in and release it. It should immediately come down in RPM. If the RPMs do not come down when you release, that means your clutch is worn out and slipping.
