The designation refers to the diameter of the base, in millimeters. Candelabra bases are smaller than conventional A-lamps which use a medium base (E26 or E27). … Intermediate base lamps, E17, are far less common than candelabra and can be found in small table lamps, novelty fixtures, and ceiling fans.

How do I know what size my light bulb is?

The light bulb size is determined by the maximum overall diameter (MOD) of the bulb’s shell. It is represented in eighths of an inch (1/8″). It’s also important to keep in mind the bulb’s length (or height) that is defined as the maximum overall length (MOL) expressed in inches.

What is an E17 base light bulb?

Intermediate Screw Base (E17) Bulbs are sometimes called Intermediate Edison Screw (IES), “E” stands for “Edison” and “17” indicates the diameter in millimeters as measured across the peaks of the thread on the base, e.g., E-17 base bulbs have a diameter of 17 mm.

Are C9 and E17 bulbs the same?

C7 bulbs have E12 bases and C9 bulbs have E17 bases, however many other bulb sizes are also available in these same base sizes. The great part about different size bulbs having the same size base is that you can use the same E12 or E17 socket size stringer and swap out your bulbs if you want to change up your display!

Does E12 work with E17?

These adapters candelabra (E12) bulbs to be used in intermediate (E17) sockets.

What are standard light bulb sizes?

• A15 bulb: 15/8 = 1-7/8″ diameter.
• A19 bulb: 19/8 = 2-3/8″ diameter.
• A21 bulb: 21/8 = 2-5/8″ diameter.
• A25 bulb: 25/8 = 3-1/8″ diameter.
• G11 bulb: 11/8 = 1-3/8″ diameter.
• G14 bulb: 14/8 = 1-3/4″ diameter.
• G16/G50: 16/8 = 2″ diameter.

What is a Type S bulb?

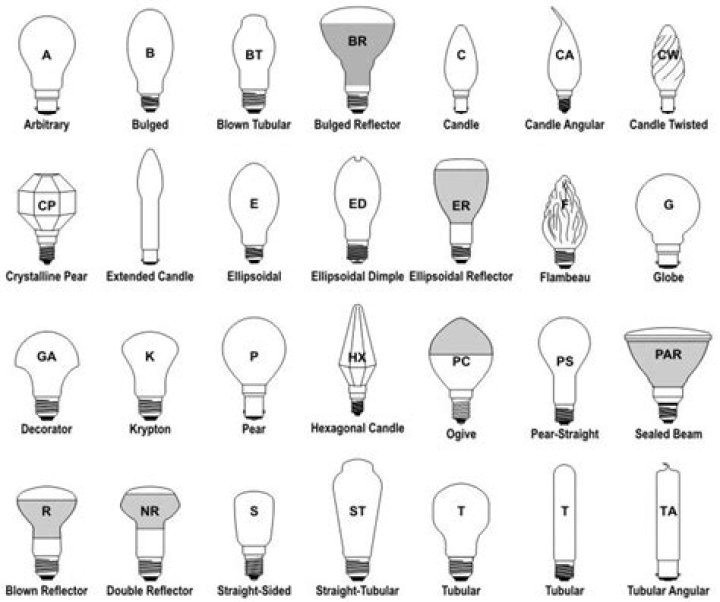

Type S Light Bulb Type S doesn’t refer to the mount; rather, it indicates the shape. Type S light bulbs are shorter, rounder-shaped bulbs and can use the same mount as a Type A or Type B light bulb.

Is E17 same as intermediate base?

E12 is the smaller “candelabra” base. It’s used for nightlight bulbs, and sometimes for decorative light bulbs used in chandeliers and over bathroom mirrors. E17, “intermediate” base, is in between these two sizes. It’s sometimes used for desk lamps and appliance bulbs, but is not as common.

Are all light bulbs the same size?

Most bulbs are measured in eighths of an inch, however decorative lighting globe-shaped (or G) bulbs are measured in millimeters. For example, an S14 would be a sign bulb shape and 14/8″ (or 1.75″) and our decorative lighting G40 bulbs are globe shape and 40 mm (or approximately 1.5″).

What size are C9 bulbs?

C9 bulbs are Lit Professional Lighting’s light of choice. They still maintain the shape of C6, and C7 lights, but are the largest yet. They are 1 ¼” round and 2.5” tall, a full inch taller than the C7. C9 light wattage can be up to twice as powerful as C7 lights.

Article first time published on

Which is bigger C6 or C9?

C6 lights are the smallest of the strawberry-shaped lights that many consider the “traditional Christmas bulb” shape. … C9 lights have the same traditional strawberry shape as C6 and C7, but are slightly larger than C7. C9 lights measure 1 1/4 inches in diameter and 2 1/2 inches tall.

Are E26 and G25 the same?

The G25 shape is usually pared with a E26 (medium) base, similar to that of a standard A19 and come in outputs ranging from 25 watts to 60 watts. G25 LED Bulb Replacements G25 shaped LED bulbs now exist and are a great replacement for decorative and vanity applications.

What is A19 bulb size?

By definition, an A19 bulb has a diameter of approximately 2.4 inches. In countries that use the metric system, A19 bulbs can also be called A60, where 60 refers to the diameter in millimeters. The length of an A19 bulb is typically 3.9 – 4.3 inches (100-110 mm) in length.

Can E26 fit in E12?

【Application】 – This JACKYLED E12 to E26 adapter can be devoted to transform your E12 candelabra base light fixture to fit any standard E26/E27 medium base bulb that meets energy efficiency standards.

What is difference between E12 and E14?

When a ruler is not available, the most common fittings, the E26/E27, and E12/E14, is roughly the same length of an adult’s thumb (the E26/E27) and little finger (the E14, the E12 is 2mm shorter.)

What is an E12 bulb?

E12 is most commonly used for decorative, candelabra light bulbs. … As a result, the wattage ratings for incandescent E12 bulbs are typically 40W or less. Rather than a focus on providing raw brightness, E12 bulbs are typically used where accent or decorative lighting effects are desired.

What are the 4 types of light?

• Ambient lighting.
• Task lighting.
• Accent lighting.
• Decorative lighting.

Can I use LED instead of incandescent?

Can You Put LED Bulbs in Halogen and Incandescent Fixtures? If everything fits and is the correct voltage, yes, you can easily swap all your halogen and incandescent bulbs in your fixtures with LED replacements. The fitting of the bulb base is the first thing you need to keep in mind.

What is Type G bulb?

Type G bulbs, or globe lights, are the ones you normally see on vanity lighting or around mirrors. They are big and bright and a great choice for bathrooms and bedrooms. They range in size from G25 to G40.

What is the standard light bulb size UK?

The most popular ES or E27 fitting is 27mm diameter and is widely used in UK and Europe. This cap is the standard 27mm diameter screw cap for UK 240V light bulbs – not to be confused with E26, which is a 26mm size and is designed for the 120V US market.

Can light bulb sizes?

The number following the letters in a recessed light bulb indicates size: it’s the diameter of the light bulb in eighths of an inch. So, a BR30 is 30/8 inches, or three and 3/4 inches. An MR11 is 11/8 inches. So, you can swap out a PAR30 for an R30 or a BR30 – they are all the same size.

Which is bigger C9 or C7?

C7 bulbs are smaller than C9s. … C9 bulbs are larger, over 2 inches long, and fit an E17 base. They are usually available in 7 or 10 watts for incandescent bulbs and are generally used in the same ways as a C7 bulb.

What is C9 lights?

C9 lights are the larger of the two most traditional Christmas light bulb sizes. They have E17 threaded bases that fit into E17 sockets. This size is what is traditionally used for C9 bulbs.

How big is a C3 Christmas light?

Package Dimensions6.69 x 2.76 x 2.44 inchesASINB07WNQBP4PCustomer Reviews4.5 out of 5 stars 167 ratings 4.5 out of 5 stars

Can you use C6 lights on House?

C6s for Perimeter Lighting? … Yes, the bulbs are a lot smaller than the more popular C9 lights that many people use for building perimeter applications, but as long as the correct clip is used, the closer spacing on a C6 stringer set will create very clean, crisp lines along the perimeter of a home or business.

What are C7 lights?

C7 Christmas light bulbs have E12 bases and are smaller than C9 bulbs. Because of their small size, C7 bulbs are popular for use indoors and on smaller residences like condos and townhomes. C7 bulbs can be wrapped around indoor trees and used to illuminate a festive mantle display.

How many watts is a C7 bulb?

No.5510900Lamp ShapeC7Energy Used (Watts)0.75Lamp BaseE12 (Candelabra)Volts120

Is A15 the same as E26?

There’s a “bulb size” and a “base size.” The bulb size is self explanatory. The A15’s are smaller bulbs, while the A19’s are larger. They both fit in a standard household medium base (E26 base.) … A15 bulbs are usually recommended in a close quarters area, maybe on a small lamp or something.

Is E26 the same as A19?

All A19 lamps have an E26 base, but not the other way around The standards that govern the dimensions and design of A19 light bulbs also dictate that it must use an E26 screw base. In other words, all A19 light bulbs also have an E26 base.

What is the difference between E26 and A19?

A19 is the size and shape of the overall bulb. E26 is the Size, shape, and threading of the metal base. A19 E26 is the common bulb used in the US. 33 of 33 found this helpful.

Is A15 same as A19?

How to Buy: A15 LED Light Bulbs. … A15 bulbs are slightly smaller than A19 bulbs and typically come in outputs ranging from 10 watts to 40 watts. These smaller wattages are frequently used in applications such as appliances, signage and decorative lighting.
