EtherChannel technology only bundles ports of the same type. On a Layer 2 switch, EtherChannel is used to aggregate access ports or trunks.

What is the difference between Layer 2 and Layer 3 EtherChannel?

Layer 2 EtherChannel bundles access or trunk ports between switches or other devices (e.g., servers). Layer 3 EtherChannel bundles routed ports between switches.

What is EtherChannel networking?

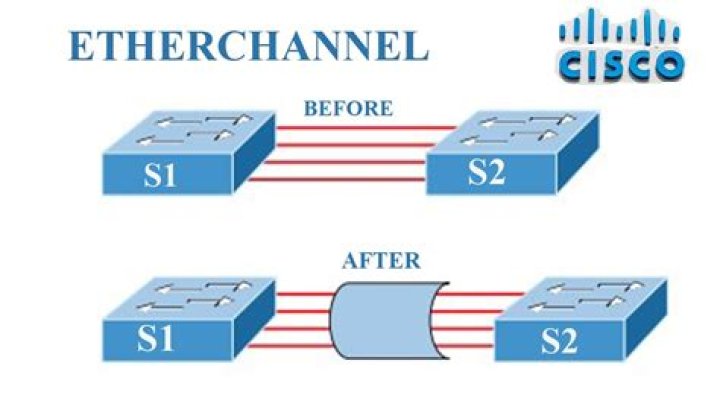

EtherChannel is a port link aggregation technology or port-channel architecture used primarily on Cisco switches. It allows grouping of several physical Ethernet links to create one logical Ethernet link for the purpose of providing fault-tolerance and high-speed links between switches, routers and servers.

Is Lacp Layer 2?

Starting in Junos OS Release 15.1X49-D40 and Junos OS Release 17.3R1, Link Aggregation Control Protocol (LACP) is supported in Layer 2 transparent mode in addition to existing support in Layer 3 mode for SRX5400, SRX5600 and SRX5800 devices. … LACP is compatible with other peers that run the 802.3ad LACP protocol.

What is a Layer 3 port channel?

Layer3 port channel are used for interconnecting routers with routers or routers with multilayer switches for the same reasons of increased performance and link fault tolerance. No L2 signalling protocol including STP plays a role on Layer3 port channel.

What is PAGP and Lacp?

LACP stands for Link Aggregation Control Protocol. While PAGP stands for Port Aggregation Protocol. IEEE Standard. The IEEE standard of LACP is IEEE 802.3ad. Etherchannel.

What is Port Channel vs EtherChannel?

PARAMETERPORT CHANNELETHERCHANNELCisco’s way of distinguishingPort-channel is the name of Cisco’s virtual interface for the purpose of Link aggregationEtherchannel is a term used by Cisco to describe a link aggregation

How do you make EtherChannel?

1. PAgP (Cisco proprietary)
2. LACP (IEEE standard)
3. Manual.

What does Lacp stand for?

Link Aggregation Control Protocol or LACP is one element of an IEEE specification (802.3ad) that provides guidance on the practice of link aggregation for data connections. Importantly, LACP typically applies to strategies that bundle individual links of Ethernet connections, and not wireless transfers.

What is Lacp in Cisco?

Link Aggregation Control Protocol IEEE 802.3ad (LACP) is an open standard of Ethernet link aggregation. LACP allows Cisco switches to manage Ethernet channels between switches that conform the 802.3ad protocol. You can configure maximum 16 ports to form a channel depending on IOS version and platform.

Article first time published on

Is Lacp the same as 802.3 ad?

Link Aggregation Control Protocol is an IEEE standard defined in IEEE 802.3ad. LACP lets devices send Link Aggregation Control Protocol Data Units (LACPDUs) to each other to establish a link aggregation connection.

What is actor in Lacp?

Two devices (actor and partner) exchange LACP. LACP is used for the collective handling of multiple physical ports that can be seen as a single channel for network traffic purposes. data units when forming a LAG. A LAG combines a number of physical ports together to make a single high-bandwidth data path.

What are the types of EtherChannel?

• Port Aggregation Protocol (PAgP) – Port Aggregation Protocol is a Cisco proprietary protocol used to form an EtherChannel. …
• Link Aggregation Control Protocol (LACP) –

How many types of EtherChannel are there?

There are 3 methods to configure EtherChannel in your network: the PAgP and LACP negotiating protocols, or Static mode.

What type of interface represents an EtherChannel as a whole?

As ports are configured to be members of an EtherChannel, the switch automatically creates a logical port-channel interface. This interface represents the channel as a whole.

How do I setup a layer 3 switch in Packet Tracer?

1. Navigate to the Distribution Switch’s details page from Monitor > Switches.
2. Click Initialize layer 3 under the Status section.
3. Enter the following settings: Name: Uplink. Subnet: 192.168. 128.0/24. Interface IP: 192.168. 128.1. VLAN: 20. Default Gateway: 192.168. 128.254.
4. Click Save.

What are the two modes you can set with LACP?

Link Aggregation Control Protocol (LACP) has two Channel modes and they are “Active” and “Passive”.

How do I get rid of EtherChannel?

1. Type smitty chinet and select the interface belonging to your EtherChannel. …
2. On the command line type smitty etherchannel .
3. Select Remove an EtherChannel and press Enter.
4. Select the EtherChannel that you want to remove and press Enter.

How many ports can be in an EtherChannel?

Multilayer switches are capable of layer-3 channels. A number of commands are used to place an interface or interface range into channel mode and to verify etherchannel operation. EtherChannel can have up to eight similar ports in a bundle and a switch can have multiple port-channels.

What is difference between EtherChannel and link aggregation?

Cisco EtherChannel It’s become a generic term used that is often used interchangeably with the more correct term, link aggregation. While link aggregation is the term used to describe the overall technology, EtherChannel is a Cisco proprietary method for actually configuring link aggregation on Cisco equipment.

What are port channels?

A port channel is a communication link between two switches supported by matching channel group interfaces on each switch. A port channel is also referred to as a Link Aggregation Group (LAG). Port channels combine the bandwidth of multiple Ethernet ports into a single logical link.

Should I use PAgP or LACP?

The most significant difference is the vendors supported for them. LACP is open standard and supported by most of vendors, while PAGP is Cisco proprietary only used between Cisco devices. … Thus if you need to form the Etherchannel on stack switch, it is better to choose LACP instead of PAGP.

What is EtherChannel with Cisco PAgP?

Port Aggregation Protocol (PAgP) also called EtherChannel is a Cisco proprietary protocol that is used for bundling two or more physical ports into single logical port. EtherChannel can provide high availability and increase bandwidth at the same time.

Which mode S of EtherChannel will not transmit LACP or PAgP frames?

A port in the passive mode cannot form an EtherChannel with another port that is also in the passive mode because neither port starts LACP negotiation.

What does PAgP stand for?

Port Aggregation Protocol (PAgP) is a Cisco proprietary protocol which is used for the automated, logical aggregation of Ethernet switch ports, known as an Ether Channel.

What is lag in VLAN?

View link aggregation (LAG) configurations. Link aggregation is a method of grouping multiple Ethernet ports into a virtual link with aggregated bandwidth. The system treats the set of ports in a LAG as a single port. All the ports within the LAG use the same Layer 2 MAC address and same default VLAN. … Multiple VLANs.

Which is a characteristic of EtherChannel?

EtherChannel uses physical ports that have been upgraded to provide a faster connection. STP will not block redundant EtherChannel bundles between two switches. STP treats all interfaces in an EtherChannel bundle as a single logical link.

Does EtherChannel need IP address?

To balance the load, EtherChannel uses MAC addresses, IP addresses, or Layer 4 port numbers, and either the message source or message destination, or both. Use the option that provides the greatest variety in your configuration.

What is EtherChannel AIX?

ETHERCHANNEL: EtherChannel is a trademark registered by Cisco Systems and is generally called multi-port trunking or link aggregation. If your Ethernet switch device has this function, you can exploit the support provided in AIX.

How do I view EtherChannel?

To display the EtherChannel details for all aggregated ports and port channels, use the command show interfaces etherchannel in Privileged EXEC Mode.

Does Cisco use LACP?

LACP is defined in IEEE 802.3ad standard and enables Cisco switches to manage Ethernet channels between switches that conform to the standard. … By using LACP, the switch learns the identity of partners capable of supporting LACP and the capabilities of each port.
