The pulley is a simple machine made with a wheel and a rope, cord, or chain.

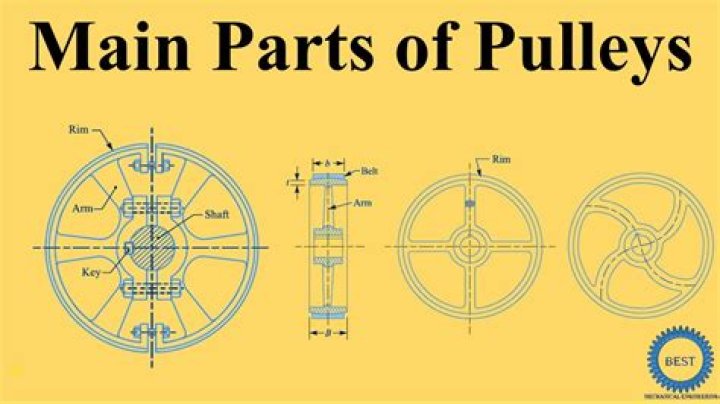

What are the main parts of a pulley?

The three different pulley parts are a wheel, an axle, and a rope. The advantage of using a pulley is that it both changes the direction and point of application of force, making it much easier to lift weights.

What are the 3 kinds of pulley?

There are three main types of pulleys: fixed, movable, and compound.

How does a 2 pulley system work?

With a two-wheel pulley, you reduce the effort you exert to lift the same amount of weight. You lift the weight with half the force. This is called the mechanical advantage (ME) and your two-wheeled pulley gives you an ME of two. The larger your ME, the less force you need to lift a weight.

What is a combined pulley?

A compound pulley is a combination of the simple and moveable pulley. It is sometimes called a combination pulley. It is designed to make the effort less than half the weight of a load. It is common at construction sites where cranes lift heavy steel and concrete objects.

How a pulley makes work easier?

The pulley, a simple machine, helps to perform work by changing the direction of forces and making easier the moving of large objects. When thinking of pulleys, most people think of the type of pulley that allows a person to redirect the direction of a force.

What is a pulley ks2?

A pulley is a simple machine that makes it easier to lift or move a heavy object. It includes at least one wheel and a length of rope.

What items use pulleys?

• Wells. Wells are one of the oldest applications that make use of a pulley. …
• Elevators. One of the most common applications of a pulley mechanism in the engineering domain lies in the construction of elevators. …
• Exercise Equipment. …
• Theatre Curtains. …
• Construction Equipment. …
• Flagpoles. …
• Blinds.

What is pulley in mechanical engineering?

In engineering, a pulley is a wheel which has a grooved rim for carrying a line. The pulley turns in a frame or block, with the purpose of either changing the direction of force or transmitting force. The simplest use of a pulley is when one end of the line is pulled to raise a weight at the other end.

What is a compound pulley example?

Multiple pulleys can be installed on the fixed and movable axles of a block and tackle, significantly improving the mechanical advantage. The compound pulley examples are sailboats, elevator, flagpole etc.

Article first time published on

What does a moveable pulley do?

In a moveable pulley, the Load is attached directly to the pulley and both can move from place to place. One end of the rope is attached to a point that does not move. This type of Pulley takes less effort or force to move a Load.

What is a 2 to 1 pulley ratio?

The 1:1 ratio is ideal for an exercise where a lot of resistance will be required and the movement will not be very fast such as lat pulldown or leg press. A 2:1 ratio still gives a fair amount of resistance while allowing more travel with slightly better responsiveness.

What is a 2 1 mechanical advantage?

This page explains 2:1 mechanical advantage systems. In a 2:1 system, you pull with approximately half as much force as the weight of the load. Refer to the overview on raising systems to learn more about mechanical advantage systems.

What is a pulley object?

A pulley is a simple machine that consists of a rope and grooved wheel. The rope fits into the groove in the wheel, and pulling on the rope turns the wheel. Pulleys are generally used to lift objects, especially heavy objects. The object lifted by a pulley is called the load.

How do you make a paper clip pulley?

Unbend the center of a Paperclip 1 so that it makes a hook. Tie Paperclip 1 to the end of a piece of string. Thread the loose end of the string through Paperclip 2. You just made a pulley!

What is a 3 1 pulley?

An easy way to calculate the ratio of a pulley system is to count the amount of lines that apply effort on the load. … In this system there are three ropes that exert effort on to a load of 90kg, so each rope is supporting 1/3 of the loads weight (30kg).

What are the two types of pulleys what are their uses?

• Fixed: A fixed pulley has an axle mounted in bearings attached to a supporting structure. …
• Movable: A movable pulley has an axle in a movable block. …
• Compound: A combination of fixed and movable pulleys forms a block and tackle.

What are the 5 types of pulleys?

• Fixed.
• Moving.
• Block and Tackle.
• Cone.
• Swivel eye.

What is pulley answer?

A Pulley is a small fixed wheel or a group of such wheels with a rope or chain in a grooved rim that is used to lift something up. An example of a pulley is a device for raising a flag.
