Free egress means that the person exiting may do so without delay or obstruction. Delayed egress means there is a delay between the attempt to exit and the ability to exit, usually 15 or 30 seconds. Delayed egress is used in health care to contain those who are ambulatory, but incapable of self preservation.

What is free egress?

Free egress means that someone can exit an egress door without any delay and by using only a single motion, such as by turning a lever or pushing on a panic bar. Delayed Egress means that there is a timed delay before someone can pass through the egress door and exit. Usually the delay is 15 seconds.

What is considered an egress door?

An egress door is designed to allow an easy escape from a building in the case of an emergency or during an evacuation. … That means if your business has hallways and walkways that lead to the emergency exit, any and all doors installed along the way become egress doors.

What defines egress?

In building code, a means of egress is a way to exit a property in the case of a fire or other emergency. Every apartment or other residence must have at least two means of egress. These can be door, windows, ramps, corridors, or fire escapes. An elevator is not considered a means of egress.

How is egress determined?

Egress capacity for an exit route is determined by figuring egress capacity for each egress component and determining the most restrictive component in the exit tour. In general, the egress capacity feet factor for stairs is 0.3 inches per person and for ramps and level components is 0.2 inches per person.

Where do you need panic hardware?

The required locations for panic hardware vary depending on which code has been adopted, but typically, panic hardware is required for assembly, educational/daycare, and high hazard occupancies, where the calculated occupant load is 50 people or more (International Building Code (IBC) and International Fire Code (IFC …

What are egress windows for?

An egress window looks just like a regular large window, but opens fully to allow a building’s inhabitants to escape in the event of an emergency, such as a house fire. … And an egress window installed below ground level (also known as “below grade”) requires a “window well.”

Do all windows need to meet egress?

Where are Egress Windows Required? Egress windows are required in every room that will be used for sleeping purposes. For example, if a basement will be used as a bedroom, then an egress window will be required. Any habitable room qualifies as a required space for this window.

Do egress windows have to open?

Egress regulations actually only apply to rooms like bedrooms and home offices that don’t have doors opening to outside. Egress laws for at least one window in these rooms require the following: The window must open a minimum width of 20 inches. The window must open a minimum height of 24 inches.

What are the three components of egress?

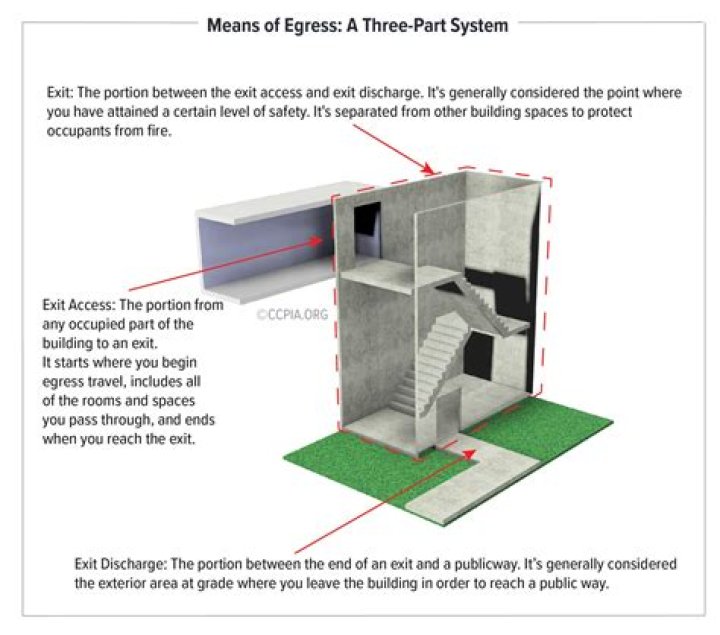

A means of egress consists of three separate and distinct parts: the exit access, the exit and the exit discharge. ! ! ! ! ! ! ! ! ! !

Article first time published on

What is the difference between exit and egress?

As verbs the difference between egress and exit is that egress is to exit or leave; to go or come out while exit is to go out.

Is a sliding door an egress door?

At approximately the same time, horizontal sliding doors were approved as an acceptable means of egress in all applications, regardless of occupancy loads, except for applications known as Category H applying to storage of flammable and toxic materials.

What is an emergency egress?

Emergency egress is a method of exit which people can access safely in an emergency. … Adequate means of escape for the occupants of a building in the event of a fire are a fundamental aspect of both legal obligations and good fire safety planning.

What is the minimum required size for an entry door?

The minimum width of each door opening shall be sufficient for the occupant load thereof and shall provide a clear width of not less than 32 inches (813 mm). Clear openings of doorways with swinging doors shall be measured between the face of the door and the stop, with the door open 90 degrees (1.57 rad).

How many people can exit a 36 inch door?

36” = 120 persons. 62” = 206 persons. 38” = 126 64” = 213 40” = 133 66” = 220 42” = 140 68” = 226 43” = 143 70” = 233 44” = 146 persons. 72” = 240 45” = 150 74” = 246 46” = 153 76” =252 48” = 160 78” =260 50” = 166 80” =266 52” = 173 82” = 273 54” = 180 84” =280 56” = 186 86” =286 58” = 193 88” =293 persons.

How is egress width of stairs calculated?

Therefore, the egress width of a stair is measured as the clear width above the handrails (between obstructions such as a wall, guard, etc.), unless handrails project more than 4 ½ inches into the stair, in which case the stair width is the measurement between the interior surface of the handrails plus 4 ½ inches on …

Why do we need egress?

The reason for needing a means of egress are twofold; to allow for an exit in case of an emergency, and to provide access for a firefighter to gain entrance.

What is the best egress window?

Casement windows—with hinged sashes that swing free and clear of the opening—can be relatively small and still meet egress requirements. This makes them ideal for basement egress and for other areas where space is limited.

Do bedroom windows need to open?

An effective means of egress in the event of a fire is the reason there are window requirements on the bedroom space. Technically, a bedroom must have two means of egress, so a second door will suffice, but it must open to the outside, which makes the exterior door a less practical solution. Not any window will do.

What is the difference between panic hardware and fire exit hardware?

Panic Hardware is an exit device which is tested for use on a door that is required to have panic hardware, but cannot be used on a fire door. … Since fire doors require positive-latching, fire exit hardware does not incorporate mechanical dogging.

Do exit doors need panic bars?

Keep in mind that when an application requires panic hardware, all of the doors in the means of egress from that room or area will typically require panic hardware, including the exit access, the exit and the exit discharge.

Do mechanical rooms require panic hardware?

Panic hardware or fire exit hardware may also be required for mechanical rooms such as boiler rooms, incinerator rooms, furnace rooms, and refrigeration machinery rooms. The IBC also requires panic hardware on some electrical rooms.

How much do egress windows cost?

The average egress window costs range from $1,000 to $5,000 per window to install. However, if you were to install an egress casement window you could expect a much cheaper installation cost. Labor costs usually average around $38 per hour for regular window types.

Can a double hung window be used for egress?

Double-Hung Windows They can be used as egress windows, but even when they’re fully open, more than half of their overall area is blocked by glass. That said, their overall height must be close to four feet nine inches to meet the requirements.

Does every bedroom need a fire escape window?

For new build, Building Regulations say that each habitable room (i.e. not a kitchen, bathroom or cupboard) above the ground floor needs a fire escape window. … It’s worth considering your escape strategy when you’re installing your windows and once they’re installed, make sure that you always keep the route clear.

What is code for a bedroom window?

Unless the bedroom has a door that connects to the outdoors, at least one of the windows should be at least 24 inches tall by 20 inches wide. The window opening should be at least 5.7 square feet.

Are basement windows required by code?

Egress window installation is a must for every house to meet the local building code. … Basements are required to have windows that can be used as an escape should an emergency arise. It is unlawful to utilize any space as a bedroom without meeting the requirements.

How low can a window be to the floor?

Minimum Window Sill Heights According to the 2018 IRC, all windows that are more than 6 feet above the grade outside the window must have a bottom opening a minimum of 24 inches above the room’s interior floor.

Is a balcony a means of egress?

Balconies used for egress purposes shall conform to the same requirements as corridors for width, headroom, dead ends and projections. 1019.2 Wall separation. Exterior egress balconies shall be separated from the interior of the building by walls and opening protectives as required for corridors.

What is opposite of egress?

The act of entering something — like a building or a highway — is called ingress (antonym “egress”).

What requirements must exit routes meet?

An exit route must meet minimum height and width requirements. The ceiling of an exit route must be at least seven feet six inches (2.3 m) high. Any projection from the ceiling must not reach a point less than six feet eight inches (2.0 m) from the floor.
