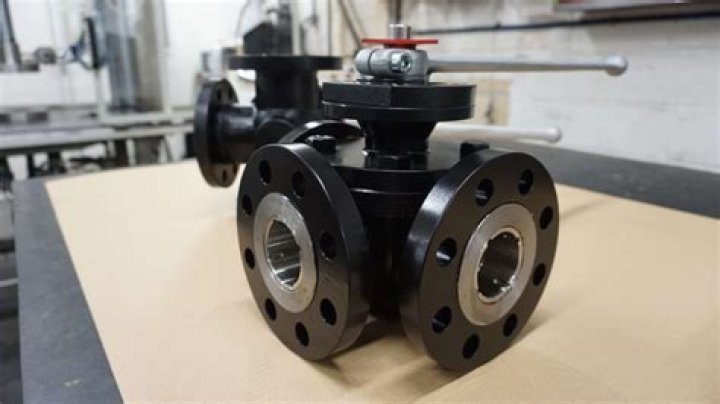

A three-way ball valve has three ports or openings that are connected to piping or tubing for gas or fluid flow (media) to pass through. These ports are usually described as one inlet and two outlet ports or one outlet and two inlet ports depending upon the flow direction through the valve.

How does a 3 way ball valve work?

A 3-way ball valve works by turning the handle, which rotates a ball in the valve body, to align the cut-out channels in the ball with the inlets and outlets of the valve. The “L” shape cut-out of the ball on an L-port valve sends fluid through 90 degrees from one port to another.

What is the difference between 2 way and 3 way valve?

A 2-way valve is any type of valve with two ports: an inlet and an outlet port, typically labelled A and AB respectively. With two ports, the valve passes the water in one direction only. 3-way valves have three ports, labelled A, B, and AB. With three ports, the 3-way valve passes the water in two directions.

What is a 3 way valve used for?

A 3-way control valve shuts off water flow in one pipe while opening water flow in another pipe. In a modulating or 3-point floating application the valve can also mix water from two different pipes into one pipe or divert water from one pipe into two different pipes.

What is a 3 piece ball valve?

A 3-piece ball valve is a valve that swings open on both ends in order to provide easy access to the valve’s internals for maintenance and repair purposes.

How does a 3 way hydraulic valve work?

A 3-way valve allows fluid flow to an actuator in one position and exhausts the fluid from it in the other position. Some 3-way valves have a third position that blocks flow at all ports. A double-acting actuator requires a 4-way valve.

What is a 3 way mixing valve?

Three-way mixing valves are microprocessor-controlled valves designed to regulate supply-water temperatures to radiant heating systems by modulating the position of the valve. Configure mixed supply water temperature to reset (or vary) based on the outdoor temperature or control to a fixed, constant temperature.

How many exit ports does a two way valve has?

Explanation: A 2 way valve has 1 exit port.

What is a globe valve?

A globe valve regulates flow in a pipeline. It is used to control or stop the flow of liquid or gas through a pipe. Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. … Globe valves are also known as throttle valves.

What is the advantage of a 3 piece ball valve?

Advantages of 3-Piece Ball Valves Changing seats and seals is more affordable than replacing the entire valve, and not having to remove the pipe connectors prevents a line shutdown should maintenance be required.

Article first time published on

What are the types of ball valves?

Types. There are five general body styles of ball valves: single body, three-piece body, split body, top entry, and welded. The difference is based on how the pieces of the valve—especially the casing that contains the ball itself—are manufactured and assembled. The valve operation is the same in each case.

What is a Part 2 ball valve?

A Part 2 ball valve or diaphragm ball valve is a ball valve made to British Standard specification 1212, Part 2. … When the water level in the cistern rises, the float arm pushes the plunger into the valve. The plunger then pushes the diaphragm washer onto the valve seating, closing the valve.

Are all 3 way valves the same?

There are four basic types of 3-way solenoid valves. Each of these different types is used for different purposes. Two of the main types include 3-way normally closed and 3-way normally open. These two valves vary simply by the fact that one has a normally open passageway, while the other has a normally closed one.

What is a 2 position 3 way valve?

Three-way, 2-position valves typically feature a three-ported design allowing flow paths in several different configurations, while only connecting two ports in any single position. The valve consists of a series of tapered cylinders with diameters that get smaller from top to bottom.

What is the difference between 3 2 and 5'2 solenoid valve?

The first one has 2 positions with 1 supply, 1 outlet and 1 exhaust, and the second one has 2 positions with 2 outlet, 2 exhaust and 1 inlet. Push buttons and check valves are the main uses of 5/2.

What is meant by butterfly valve?

Definition of butterfly valve 1 : a valve consisting of two semicircular clappers hinged to a cross rib that permits fluid flow in only one direction. 2 : a damper or valve in a pipe consisting of a disk turning on a bisecting axis.

What is the difference between a ball valve and a globe valve?

The main difference between these two types is the way they close. A globe valve uses a plug (stem) that closes against the flow, and a ball valve has a gate (ball) that closes across the flow. Globe valves are good for regulating flow, whereas ball valves are better for on/off control without pressure drop.

What is the difference between globe valve and butterfly valve?

The globe valve raises the stem when it opens or closes, meaning that the handwheel rotates and lifts along with the stem. For butterfly valve, disc-shaped butterfly plate in the body around its own axis rotation, so as to achieve the purpose of opening and closing or adjustment.

What is a 3 port valve?

Three way valves This type of three way motorised valve has port A normally closed with no power to the valve. In this state, water can flow from port AB to port B. When the electrical supply is activated, the actuator motor overcomes the force of the internal spring and closes port B.

What is the difference between 2 piece and 3 piece ball valve?

One piece ball valves are inexpensive and generally not repaired. Two piece ball valves consist of two separate pieces, with the connection between them being either threaded or a bolt and flange assembly. As you may have guessed, a 3 piece ball valve consists of three pieces, two end caps and a body.

What is the difference between a 2 piece and 3 piece golf ball?

Two-piece golf balls are composed of a solid center core with a hard, surlyn cover. Three-piece golf balls, on the other hand, contain a solid or liquid center core, an outer layer composed of rubber and a soft cover.

What is a unibody ball valve?

The Keckley Style BVF1 Unibody flanged end ball valves are constructed from rugged investment castings that are machined to exacting specifications. Unibody construction provides high structural strength and minimizes external leak paths.

Why is it called a ball valve?

A ball valve is a shut off valve that controls the flow of a liquid or gas by means of a rotary ball having a bore. By rotating the ball a quarter turn (90 degrees) around its axis, the medium can flow through or is blocked. … As a result, they are more popular as a shut off valve then for example the gate valve.

Why do ball valves fail?

A variety of factors can contribute to ball valve failure including poor design (chemical compatibility, rated pressure/flow rate, etc.), faulty installation, and/or improper operation.

Which way does a ball valve go?

VALVE ORIENTATION: Installation upside down is not recommended because it can cause dirt to accumulate by the stem packing. The best practice is to install with the valve stem facing upwards whenever possible.

What is the difference between a Part 1 and a Part 2 ball valve?

Part 1 and Part 2 ball valves – the main differences On a Part 1 or ‘Portsmouth’ valve, the outlet is on the underside of the valve. However, on a Part 2 or ‘diaphragm’ valve, the outlet is on the top. Water is directed down into the cistern via a small plastic spout which screws onto the valve body.

What is the difference between a Part 2 and Part 3 float valve?

Part 3 float / ballcock valves look like part 2 valves and operate in the same way – the main difference is that they are made from plastic instead of brass. Part 3 ballcock valves are typically used as fill valves in older handle flush WC toilet cisterns.

What Is A Part 1 or 2 ball valve?

A part 1 Valve has the water outlet spout on the underside of the float valve and a part 2 has it on top of the body with a plastic nozzle which directs the water downwards into the tank. Both types are typically found in loft cold water tanks or feed and expansion tanks.

What is 2-way valve and 3-way valve in HVAC?

A 2-way valve is any type of valve with two ports: an inlet and an outlet port, typically labeled “A” and “AB” respectively. … 3-way valves are commonly found in constant flow/volume pumping systems and can be either mixing or diverting valves. 3-way valves can be piped in the supply or return.
