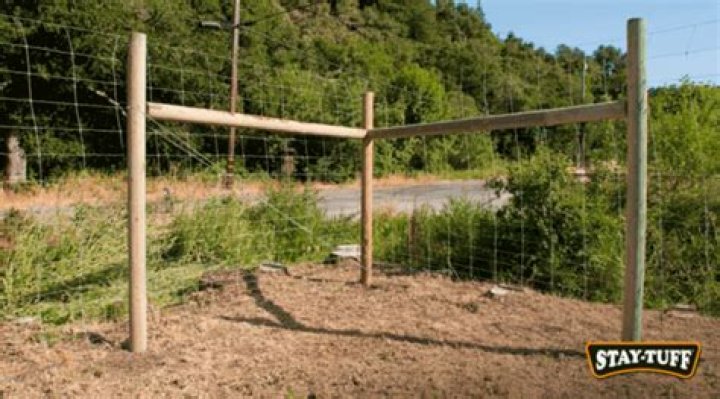

High tensile fencing is a strong material in its own right. … Bracing is the backbone which supports the rest of the fence. The braces used when constructing high tensile fence are called “H braces,” due to their shape containing two vertical posts and a horizontal post spanning the gap between them.

What is the purpose of an H brace?

An H-brace is the support system in your fence line. They are located at corners, gates, direction changes, in the middle of long stretches of fence line, and at points of elevation change. H-braces add strength to the fence line and are used as stable points to pull, stretch, and secure wire fencing.

How do you brace a wooden fence?

Dig a hole about 8 inches away from the corner post and place the “upright” in this hole. Set brace pins by drilling a horizontal hole in the upright, about 12 inches from the top. Repeat this step on the corner post and place pins in the holes. Cut your “H” brace to fit directly between the post and upright.

What is a fence Deadman?

Priefert’s H-Brace Dead-Man is designed to help increase the longevity of your fence by providing additional support to your braces. … The Dead-Man angles toward the ground, running alongside the fencing wire, increasing the leverage of the H-Brace. This helps to keep your fencing taut, preventing slack in the fence.

Should I use concrete for fence posts?

Do Fence Posts Need To Be Set in Concrete? No, fence posts don’t need to be set in concrete, and there are plenty of other ways to fix your posts if this feels a bit too permanent. If you are using wooden posts, concrete may actually be the worst option.

How do you make a Deadman out of drywall?

1. Cut an upright out of a 1-by-4 or 2-by-4 piece of lumber. …
2. Cut a cross member for the top of the deadman brace. …
3. Fasten the center of the cross member to the top of the upright using 16d nails for 2-by-4 lumber or 8d nails for 1-by-4 lumber.

How deep should h braces be?

Depending upon soil type, soil moisture and wire tension, your corner or end post will need to be 3 to 5 feet in the ground. Additional depth enables the post to withstand more force.

How many feet apart should T posts be?

You should position T-posts no more than 8 feet apart.

How do I make my fence post more sturdy?

For a stronger solution, pour a bag of fast-setting concrete directly into your new hole and around the base of the post. Next, slowly pour about a gallon of water into the hole and soak all the way through the dry concrete.

Is 2 ft deep enough for fence post?

2 feet is the minimum depth that you should dig your fence post holes for. To dig the holes one-third to one-half of the post’s aboveground height, is a general formula. The deeper you dig the holes, the more stability your fence has.

Article first time published on

Is 1 foot deep enough for fence post?

Determining Post Length You should always bury one-third of your fence post underground. … This means that unless you are building a 2-foot fence, which is unlikely in any garden, a 1-foot hole will not be deep enough to support your post. For main and gateposts, you should dig the holes an additional 6 inches deep.

Should a fence post wiggle?

WOBBLY wooden fence posts should be repaired promptly before they cause other fence parts to loosen. Posts that have been in the ground for less than five years usually wobble because of improper installation; ordinarily, tightening them is fairly easy.

What is overlap fence?

Overlap fence panels are constructed from overlapping horizontal boards and offer high levels of privacy at a very good price, with heavy duty vertilap being the strongest fence panels, offering a perimeter fencing that is very sturdy with a high privacy level.

What is a Deadman brace?

A deadman brace serves the same purpose as another assistant when you’re installing drywall, wood paneling or any type of sheet material on a ceiling. The brace consists of a vertical leg with a crosspiece assembly at the top that supports any portion of a sheet during installation.
