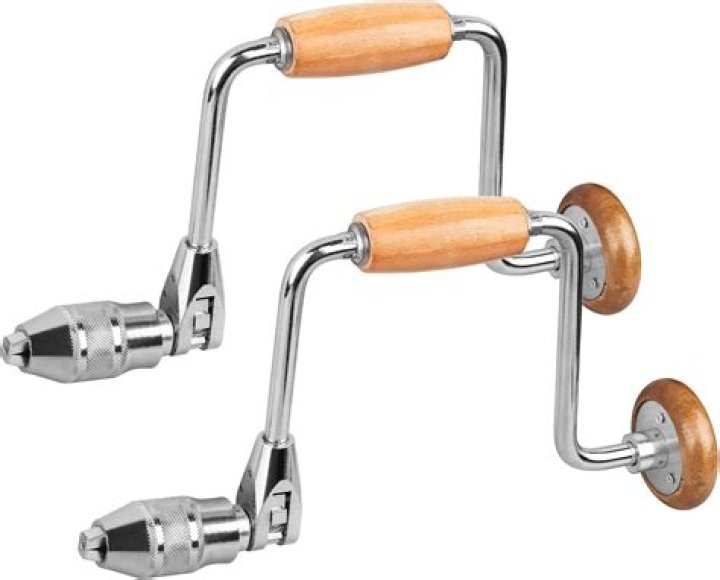

brace and bit, hand-operated tool for boring holes in wood, consisting of a crank-shaped turning device, the brace, that grips and rotates the hole-cutting tool, the bit. The auger bit shown in the Figure is of the style traditionally used by carpenters; its six parts are shown in the Figure.

What is Carpenter's brace?

brace and bit, hand-operated tool for boring holes in wood, consisting of a crank-shaped turning device, the brace, that grips and rotates the hole-cutting tool, the bit. The auger bit shown in the Figure is of the style traditionally used by carpenters; its six parts are shown in the Figure.

What is ratchet brace in carpentry?

Definition of ratchet brace 1 : a carpenter’s bitbrace that has a ratchet-driven chuck and is used in close quarters where complete revolutions of the handle are impossible. 2 : a lever that has a ratchet-driven chuck at one end and is used for drilling holes in metal by hand.

What is the difference between a hand drill and a brace?

Braces. A carpenter’s brace has a ‘U’ shaped crank/frame that is used to turn the chuck and drill into wood. The sweep handle of a brace helps it to generate more torque than a hand drill, due to it having a greater distance from the centre of rotation so providing more leverage than the turning handle of a hand drill.

What are boring tools used for?

Boring is used to achieve greater accuracy of the diameter of a hole, and can be used to cut a tapered hole. Boring can be viewed as the internal-diameter counterpart to turning, which cuts external diameters.

How old is the bit and brace?

The hand brace was the next big step forward in drilling. However, it did not appear until the early 1400s. The oldest remaining example of a brace came from an English ship that sunk in 1545. Wood was used to construct the first braces which had the drill bit permanently attached.

What is a Whimble brace?

A nice, simple brace, fitted with just one bit. So this craftsman had several braces, presumably, for different sized holes. Here is a brace from Pilgrim Hall, showing a removeable “pad” – thus a brace that could have several bits. The caption uses a common period term, “wimble” for the brace.

What is a bradle?

A bradawl is used to make indentations in wood or other materials in order to ease the insertion of a nail or screw. The blade is placed across the fibres of the wood, cutting them when pressure is applied.

What is the purpose of a hand drill?

A hand drill is a simple tool used to ignite a pile of dried tinder. Because hands create less friction than a bow drill, this method is only effective in hot climate when wood is very dry. Steps to Make a Hand Drill: The drill is cut from a straight, dry piece of hardwood such as ash, birch, hickory, maple or oak.

Can you use regular drill bits in a brace?

Drill bits with hex shanks are readily available in many sizes. It’s the ideal brace for anyone with a stock of modern drill bits. … The square shank of drill bit is inserted so that the end of the shank sits in the square socket at the base of the chuck to stop the drill bit from slipping.

Article first time published on

What do you use Forstner bits for?

Unlike the standard twist bit, Forstner bits are optimized for woodworking applications and cut exceptionally precise, clean-edged holes in wood. Because they’re designed to produce a minimum amount of tear-out when exiting the material, Forstner bits are the best bit for drilling through holes.

What are old hand drills called?

Archimedean drills resembled what many people know today as Yankee screwdrivers, while hand drills were often called eggbeater drills for their similarity to that common kitchen tool. Before drills and braces, T-shaped augers were used to poke holes into wood, while smaller gimlets were used to start them.

How do you maintain a ratchet brace?

Gears on hand drills and exposed ratchets can become clogged with shavings, preventing them from turning correctly or increasing wear between them. After brushing off any shavings, take a soft cloth and wipe over the frame of the drill or brace.

What does a twist drill bit do?

Twist drill bits are used for drilling through anything from wood to plastic to metal products, but not masonry and concrete products. However, their primary use is for drilling through metal.

What is a ratchet drill?

Definition of ratchet drill : a hand drill in which the drill holder is revolved intermittently by a lever through a ratchet wheel and pawl.

Which boring machine has the highest accuracy?

The tool is rotated and advanced parallel to the axis of the hole in the workpiece. Jig boring machines are designed to establish the location of holes in surfaces to the highest level of accuracy possible with a machine tool.

Is used for boring holes on wood or metal?

Twist drills can be used for drilling holes in either wood or metal, and their use is recommended where there is danger of striking a nail or other metal that would dull an auger bit.

How were holes drilled in medieval times?

While the pump-drill and the bow-drill were used in Western Civilization to bore smaller holes for a larger part of human history, the Auger was used to drill larger holes starting sometime between Roman and Medieval ages. The auger allowed for more torque for larger holes.

When was the brace bit invented?

Bit braces first appeared in Europe in the 1400s, though the underlying mechanics—the principle of the crank—had been known in China centuries before. By the dawn of the 20th century, the brace had evolved to the tool we recognize.

What is the tool used for boring holes either in metals woods or plastics?

General-purpose drill bits can be used in wood, metal, plastic, and most other materials.

When was hand drill invented?

development of drilling tools holes until the first geared hand drill was invented in 1805.

Who invented the drill bit?

The twist drill bit was invented by Steven A. Morse of East Bridgewater, Massachusetts in 1861. The original method of manufacture was to cut two grooves in opposite sides of a round bar, then to twist the bar (giving the tool its name) to produce the helical flutes.

Are hand drills still used?

Hand drills may be considered old-fashioned, but are still useful forwoodworking and other tasks where you want to have total control. Hand drills are useful tools for woodworkers and those who prefer not to use power tools.

How many types of drill are there?

The amount of drills available is rather mind-blowing. All of these different drills can be categorized into just three primary types: traditional drills, impact drivers, and hammer drills.

What does a Bradawl look like?

A bradawl is a hand tool, slightly resembling a screwdriver, but is much smaller. It consists of a handle, shank and chisel-shaped point. Although, technically, the tip of a bradawl is shaped like a chisel, there are two other shapes of tip which can be considered bradawls: tapered round and tapered square.

Is an awl a carpenter's tool?

A scratch awl is a woodworking layout and point-making tool. It is used to scribe a line to be followed by a hand saw or chisel when making woodworking joints and other operations. The scratch awl is basically a steel spike with its tip sharpened to a fine point.

Whats the difference between a Bradawl and an awl?

The Awl is a small hand-held tool with a sharpened point. A Bradawl is similar but is flattened at its tip to produce a sharp chisel edge.

When did Stanley buy Russell Jennings?

The bits were patented in 1855. The three-tiered box was patented in 1890. They were bought out by STANLEY in 1944.

What is a manual hand drill called?

A brace is a hand tool used with a bit (drill bit or auger) to drill holes, usually in wood. Pressure is applied to the top and the tool is rotated with a U-shaped grip.

Are Forstner bits better than spade bits?

Make sure you don’t increase the speed too much—a huge benefit of the Forstner bit is the precision, and you will need to work slowly to achieve that. Unlike the spade bit, the Forstner bit is ideal for creating a neat, precise cut. You can use them to create flat-bottomed holes and even overlapping holes!

What is spade bit?

Also commonly known as paddle bits, spade bits have a wide, flat blade. … The flat, broad blade of a spade bit has a pilot point attached to a 1/4-inch diameter shank that can be chucked into both regularly-chucked drills and quick-chuck impact drivers.
