A rafter is defined as one of a series of sloped structural pieces (typically wooden beams) that extend from the hip or ridge to eave, wall plate, or downslope perimeter. They’re designed to support the roof deck, shingles, and everything else that goes with the roof. Rafters are the traditional way to frame a roof.

What's the difference between a truss and a rafter?

Rafters contain two main outer beams which support the roof structure. On the other hand, trusses come with multiple beams which add more support. Moreover, as said earlier, the entire weight of the roof is equally shared by a series of triangles inside the main frame.

What is a rafter and where is it located?

A rafter is a structural component that is used as part of a roof construction. Typically, it runs from the ridge or hip of the roof to the wall plate of the external wall. Rafters are generally laid in series, side by side, providing a base to support roof decks, roof coverings and so on.

Do all houses have rafters?

A visit to the attic of almost any older home will reveal the fact that rafters were the overwhelmingly popular method in the past. Today, however, about four out of five new houses built in the U.S. utilize truss construction.

What are 3 types of rafters?

There are basically seven different types of roof rafter designs used to create a roof: common, hip, hip jack, valley, valley jack, cripple jack and flying hip.

What is the most common roof pitch?

Conventional slope roofs are most common with residential roofs. This means the slope has a pitch between 4/12 and 9/12 on most homes. Roofs with a pitch exceeding 9/12 are called steep slope roofs.

Is it cheaper to build or buy roof trusses?

Lower cost – Building with roof trusses is 30% to 50% cheaper than building a stick roof.

How far apart are rafters in a house?

But they do tend to space rafters in one of several industry-standard increments, typically either 12, 16 or 24 inches apart. These spacing intervals are measured “on center,” meaning that the measurement is taken from the center of one rafter’s horizontal surface to the center of the next rafter.

What holds a house roof up?

Trusses are pre-fabricated, triangulated wooden structures used to support the roof. The alternative is to build up the roof’s frame with 2x8s and 2x10s. Trusses are quite common these days because they have five big advantages from the builder’s standpoint: Trusses are incredibly strong.

What are roof rafters?

A rafter is defined as one of a series of sloped structural pieces (typically wooden beams) that extend from the hip or ridge to eave, wall plate, or downslope perimeter. They’re designed to support the roof deck, shingles, and everything else that goes with the roof. Rafters are the traditional way to frame a roof.

Article first time published on

Where are the rafters in a house?

In a sloped roof, common rafters run from the peak of the roof down to the top of the exterior walls of the building. At the peak, the rafters are nailed to a ridge board, and at the top of the wall, rafters are attached to the horizontal top plate of the wall framing.

Are roof joists structural?

Roof beams may support the weight of the floor above or roof, but they are also a vital component in structural integrity. Roof beams attach to walls and stop them from spreading or leaning in. This image below shows metal beams supporting many timber joists.

Where do Rafter ties go?

Rafter ties are installed between opposing rafters, and they should be installed as close as possible to the top plate. Rafter ties resist the outward thrust that rafters exert on the exterior walls. They help keep walls from spreading due to the weight of the roof. When the walls spread, the ridge board might sag.

What is rafter framing?

Rafters are long wooden boards used for the frame of the roof, also known as stick framing. Rafters are made on the job site by the roofers and they are typically cut into 2×10 or 2×12 beams, which slope down from the peak of the roof. Ceiling joists then help secure the rafters and the exterior walls.

How thick is a rafter?

Most Common Thickness For rafters spaced 20 or more inches apart, 1/2- or 5/8-inch plywood is recommended. The most common rafter spacing is 24 inches, and 5/8-inch plywood is recommended for that.

What are rafter feet?

The rafter feet are a key part of your roofline structure. … Rafter feet are generally spaced just under a meter apart, along the length of the run.

What is a Perling?

A purlin (or historically purline, purloyne, purling, perling) is a longitudinal, horizontal, structural member in a roof. In traditional timber framing there are three basic types of purlin: purlin plate, principal purlin, and common purlin.

What is the difference between joists and rafters?

The main difference between Joist and Rafter is that the Joist is a horizontal structural element transferring load from flooring to beams, typically running perpendicular to beams and Rafter is a structural members in architecture.

Which roof pitch is best?

For metal panel roof systems, NRCA recommends slopes of 1/2:12 or more for structural panel systems and 3:12 or more for architectural panel systems. For asphalt shingle, clay and concrete tile, metal shingle, slate and wood shake and shingle roof systems, NRCA recommends slopes of 4:12 or more.

What is the average roof pitch on a house?

The most commonly used roof pitches fall in a range between 4/12 and 9/12. Pitches lower than 4/12 have a slight angle, and they are defined as low-slope roofs. Pitches of less than 2/12 are considered flat roofs, even though they may be very slightly angled.

How much should a roof slope?

As a general rule of thumb, commercial buildings have a slope of at least one-quarter inch per foot. This means that for every foot of the roof, it must slope downward by at least one-quarter inch. Commercial buildings with a slope like this are considered low slope.

What is the wood under a roof called?

Also known as the wood sheathing, this is the base on which everything else is laid on. It’s essentially the foundation of the roof. This is typically made with OSB or oriented strand board or plywood that’s attached with nails onto the rafters.

How is your roof attached to your walls?

Roof to Wall Connections: In houses with masonry walls, it is common to find a horizontal or “flat wise” 2×8 lumber plate that is bolted or strapped to the top of the masonry wall. The roof and the trusses or rafters are then connected to this plate using toe nails and, in wind resistant construction, metal straps.

Can roofs be flat?

A flat roof is a roof which is almost level in contrast to the many types of sloped roofs. The slope of a roof is properly known as its pitch and flat roofs have up to approximately 10°. Flat roofs are an ancient form mostly used in arid climates and allow the roof space to be used as a living space or a living roof.

How long can roof rafters be?

Maximum Span (ft – in)Nominal Size (inches)Rafter Spacing, Center to Center, OC (inches)Lumber Grade2 x 81221′ – 7”1619′ – 7”2417′

How far can a rafter span without support?

A 2×6 spaced 16 inches apart can span a maximum distance of 13 feet 5 inches when used as a rafter, 10 feet 9 inches when used as a joist, and 6 feet 11 inches when used as a deck beam to support joists with a 6-foot span.

Which is better trusses or rafters?

Once in place, rafters use up more wood, so they weigh more, but trusses are stronger because they are more efficient and have the capacity to produce maximum strength using fewer materials in the end.

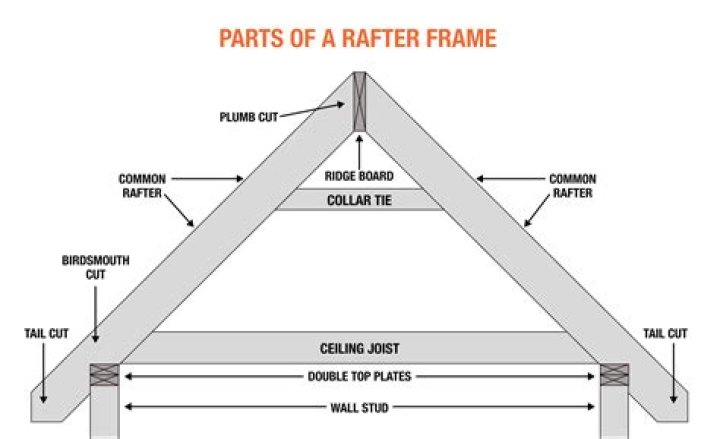

What are the parts of a rafter?

• Plumb cut, typically called the ridge cut, at the top end of the rafter.
• Birdsmouth, which consists of two cuts – a horizontal seat cut and a vertical shoulder cut.
• Tail cut, which may be cut plumb or square, depending on how the eaves are detailed.

How are rafters made?

Building a roof frame with rafters is known as stick framing. This means that each rafter is built on the job site using dimensional lumber. Every piece is measured, cut, and fastened together to form the rafter. … Rafter boards are fastened to the ridge board at the peak and the top plate where they join the wall.

What do rafters rest on?

In homes with flat ceilings and an attic space, the bottoms of opposing rafters should be fastened together with ceiling joists, which form “rafter ties.” When rafters have been installed perpendicular to the ceiling joists, rafter ties typically rest on top of the ceiling joists.

What is the difference between a rafter and a purlin?

is that rafter is one of a series of sloped beams that extend from the ridge or hip to the downslope perimeter or eave, designed to support the roof deck and its associated loads or rafter can be a raftsman while purlin is a longitudinal structural member two or more rafters of a roof.
