Type L vents are designed for venting approved oil-fired and natural-gas appliances that produce draft hood flue gasses that do not exceed a temperature of 570º F (299º C), or 926º F (299º C) for 10 minutes in an over-fire situation. … Type L vents should not be used to vent coal- or wood-fired appliances.

What is Type C vent pipe?

Type C vents are used only as connectors. They are single walled galvanized pipes, and as such often called “galvanized pipes”. They are used only for venting gas or oil. Using a C vent with solid fuel appliances can cause extremely toxic fumes. This is the least expensive of the pipes.

What is Type 3 vent pipe?

Category III refers to positive vent pressure which is created by exhaust blowers in unit heaters. These vent systems must be constructed of AL29-4C® stainless steel, contain gaskets for sealing, and have a built in mechanical locking band among other requirements.

What is the difference between Type A and Type B vent pipe?

Definition of Vent or chimney vent or flu vent: A metal chimney which is “thin walled” – either a single wall of metal or a thin double wall in some areas is called a “vent”. A double-walled metal flue used for venting gas fired appliances in the U.S. and Canada is a Type-B vent.

What does Type B vent mean?

B vent: This approach, also called natural vent, pulls air from indoors for combustion and vents it outside. It features a chimney with a double wall pipe which runs from the fireplace to outside of the home. … This tightly-sealed system eliminates use of any inside air. This type of fireplace does not require a chimney.

Is B-vent a Category 3?

B-vent is ONLY allowed on Category 1 appliances unless the appliance manufacturer has specifically certified a particular B-vent system to be used alternatively.

What is class A stove pipe?

Class A pipe is used to vent high-temperature exhaust released from wood, coal, and oil-burning appliances such as fireplaces, stoves, boilers, and furnaces. Not every venting system requires a Class A pipe, but it is absolutely necessary for use with all wood-burning fireplaces and stoves.

Can B-Vent be cut?

2 Answers. The short answer is no. B-vent cannot be cut.

Is Type B-Vent double wall?

AmeriVent Type B gas vent uses a double wall of metal pipe for insulation and safety. The inner pipe of reflecting aluminum heats quickly, containing the warm flue gases inside. … The outer pipe of corrosion-resistant galvanized steel ensures strength, safety, and durability.

What is Category 4 vent pipe?

Category IV Appliances are mainly high efficiency water heaters and furnaces that use plastic vent pipes. These appliances also operate with positive vent pressure and cannot share a common vent with a gravity-vented water heater. Inspectors should not confuse fan-assisted furnaces with those that are power vented.

Article first time published on

What is a Category 1 Vent?

Gas appliances are divided into four venting categories based on vent operating pressure and whether they are condensing or non-condensing. Category I is negative pressure, non-condensing. Category II is negative pressure, condensing. Category III is positive pressure, non-condensing.

What is a Category 4 appliance?

Category IV appliance – an appliance that operates with a positive vent static pressure and with the flue loss less than 17%. Draft – the flow of air or combustion products, or both, through an appliance and its venting system.

Which is better direct vent or B vent?

Direct-vent appliances are typically higher in efficiency than b-vent appliances and put out a lot of heat even with a low flame setting but still do not produce as much heat as their vent free counterparts.

What is B Vent vs direct vent?

A B-vent must be vented vertically and uses fresh air from inside the home to provide oxygen to the fire. A direct vent has a sealed glass front and pulls all of its fresh air from outside the home. Direct vents can be vented vertically or horizontally through an exterior wall.

How long does Class A stove pipe last?

Average Lifespan of Chimney Liners The average lifespan of a chimney liner is 15 to 20 years. After two decades you will probably need to get the entire liner replaced to make sure it’s still up to code and not a serious fire risk.

Is Class A chimney pipe double wall?

Class A chimney pipe is a double wall pipe that is designed to vent any fuel. This double wall chimney pipe is insulated with one inch of insulation on all sides of the pipe. So a 6″ inner pipe will have an 8″ outer pipe. The double wall construction can reduce the clearance to combustibles to 2″.

How do I know what class my chimney pipe is?

Class A chimney pipe usually has a UL-listing, which allows it to be used with a wider variety of manufacturer’s stoves, fireplaces, etc. The majority of brands have an inner layer constructed of stainless steel but the out layer can be either stainless steel or galvanized steel.

What is a Type L gas vent?

Type L vents are designed for venting approved oil-fired and natural-gas appliances that produce draft hood flue gasses that do not exceed a temperature of 570º F (299º C), or 926º F (299º C) for 10 minutes in an over-fire situation. The minimum clearance from combustible materials is generally 3 inches.

Can you put screws in B vent?

It is acceptable to use screws to attach the B-Vent to the appliance outlet.

Can you install B vent through wall?

Any portion of your B vent system that passes through the occupied area must be enclosed to protect against any emergency, such as the system’s burning. But we will not recommend installing the B vent pipe on the outside wall of the building, especially when the outside weather is cold.

Is B vent zero clearance?

Type B Gas Vent requires a minimum of one-inch clearance to combustibles. This one-inch is a typical clearance for all brands of Type B Vent, but each section of vent pipe is marked with the clearance required by Underwriter Laboratories, so it should be checked.

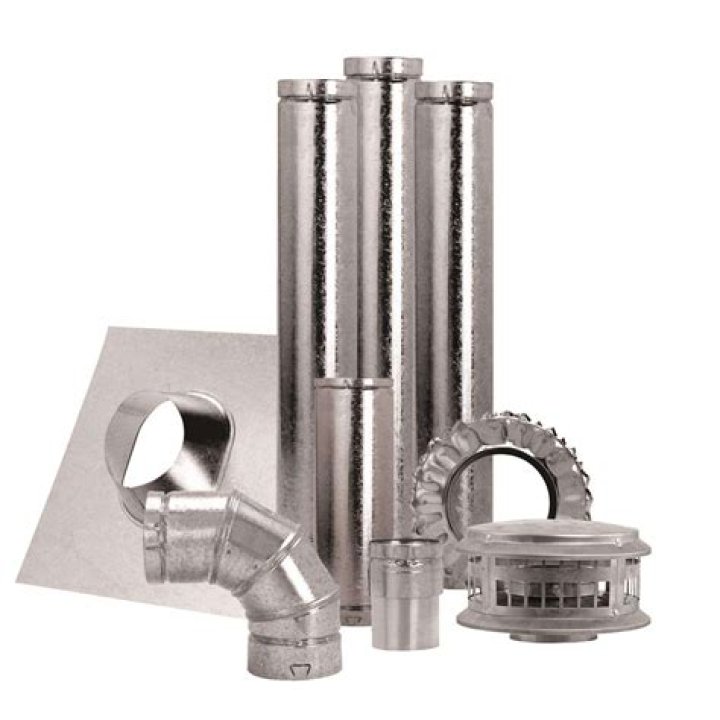

What is Type B flue pipe?

Type-B Gas Vent is a chimney venting system that is specifically designed to make use of air within the room to aid combustion. … Dura Vent Type-B Gas Vent Pipe has been engineered to heat up rapidly. It remains hot during the operation of the appliance with minimal condensation in the appliance and vent system.

When would you use a double wall vent?

Type “B” double-wall vent pipe allows you to install it within 1 inch of combustible materials, such as wood framing and wall materials. The air space between the inner and outer walls of the vent’s double wall construction insulates the pipe, preventing the hot inner wall from coming in contact with combustibles.

What is B vent flue pipe?

Sometimes referred to as Natural Vent – B-Vent appliances use pipe (b-vent) that must be installed through the home and terminate above the roof. They also use room air for combustion, but the amount of air they use is minimal. Pros: Combustion fumes are vented outside.

Can insulation touch a furnace vent?

What is this? To safely insulate your furnace exhaust, always use high-temperature caulking, do not allow insulation to touch the vent by creating a dam first, and be sure you know what kind of vent pipe you are dealing with.

How far can you run B-vent horizontal?

The Type B or single-wall vent connector cannot be installed horizontally. But it can be run almost horizontally: 1/4” per foot slope upward toward the vent, with no dips or sags, per International Residential Code (IRC G2427. 10.7). The vent it connects to must terminate vertically.

Are different brands of B-vent compatible?

Our B-Vent 3” through 6” is UL listed to adapt to any competitor’s UL listed B-Vent products. Metal-Fab’s universal adaptability with identified competing brands provides a competitive advantage in the field and you the installer only need one brand of B-Vent. … Metal-Fab B-Vent provides a solution in two easy steps.

What are the two types of venting?

Active ventilation pulls the air in from the outside and pushes it out from the inside. Passive ventilation means the air in the attic is moved around by natural sources, such as wind. Both ventilation systems do their job, and one isn’t better than the other.

What type of vent is used with 80 Category I furnaces?

80% furnaces use type B vent and 90% furnaces use PVC pipe for venting material.

What type of vent is designed specifically for Category I gas appliances?

The vent connector is the pipe running from the furnace to the vent. What type of vent is designed specifically for category I gas appliances? Type B vent.

What is positive pressure venting?

Positive-pressure ventilation means that airway pressure is applied at the patient’s airway through an endotracheal or tracheostomy tube. The positive nature of the pressure causes the gas to flow into the lungs until the ventilator breath is terminated.
