Edge Welding Joint. Edge welding Joints are often applied to sheet metal parts that have flanging edges or are placed at a location where a weld must be made to attach to adjacent pieces. Being a groove type weld, Edge Joints, the pieces are set side by side and welded on the same edge.

What is tee joint and edge joint?

Tee welding joints are formed when two pieces intersect at a 90° angle. This results in the edges coming together in the center of a plate or component in a ‘T’ shape. Tee joints are considered to be a type of fillet weld, and they can also be formed when a tube or pipe is welded onto a base plate.

What are 3 different weld joint types?

There are five types of joints referred to by the American Welding Society: butt, corner, edge, lap, and tee. These configurations may have various configurations at the joint where actual welding can occur.

How do you do edge welding?

—One side root opening—Both sides root opening—Bevel angle cut—Bevel angle cut with root opening—V angle cut—V angle cut with root opening

In which cases we can use the edge joint weld?

Edge Joint Welding. Edge joints are usually used when two pieces of sheet metal have flanging edges. Other applications tend to be in places where a weld is the only way to attach pieces that are next to each other.

What is half corner weld?

Options: where longitudinal shear is present. to join two pieces of metals in the same manner as rivets join metals. where efficiency of joint should be 50%

What are tee joints used for?

As the name infers, the T-joint (Fig. 5.4b) is one where one member is positioned at approximately right angles to its partner with the most usual applications being plate to plate or branch connections.

What is a slot weld?

A slot weld joins the surface of a piece of material to another piece through an elongated hole. The hole can be open at one end and can be partially or completely filled with weld material.

What are the factors considered for edge preparation?

The thickness of the metal plates usually determines the type of edge preparation. For example, sheet metal easily melts so that it does not require special edge preparation but when welding fabrication involves metal plates, it is important to take into account joint edge preparation and proper spacing between edges.

What are the G positions in welding?

Welding SymbolWelding PositionWeld Type1 GFlat positionGroove weld2 FHorizontal positionFillet weld2 GHorizontal positionGroove weld3 FVertical positionFillet weld

Article first time published on

What are the 4 different types of welding?

There are four main types of welding. MIG – Gas Metal Arc Welding (GMAW), TIG – Gas Tungsten Arc Welding (GTAW), Stick – Shielded Metal Arc Welding (SMAW) and Flux-cored – Flux-cored Arc Welding (FCAW). We dive deeper into each type of welding here.

Which weld joint is strongest?

What is the strongest weld? The absolute strongest weld that can be made in routine applications would be a type of weld made via the welding technique of Tungsten Inert Gas (TIG) Welding, also known as GTAW welding. TIG welders are known for creating clean and strong welds.

What is the strongest corner joint weld?

Open corner joint is used on heavy material. It is the strongest of the corner joints. Corner joints on heavy material are welded on both sides.

What is wrapped tap?

Wrapped Tap or Tee Joint • This is used on large solid conductors where it is difficult to wrap the heavy tap wire around the main wire.

What is the meaning of tee joint?

Definition of tee joint : an electrical connection used for joining a branch conductor to a main conductor where the main conductor continues beyond the branch.

What is T fillet joint?

Fillet welding refers to the process of joining two pieces of metal together when they are perpendicular or at an angle. These welds are commonly referred to as tee joints, which are two pieces of metal perpendicular to each other, or lap joints, which are two pieces of metal that overlap and are welded at the edges.

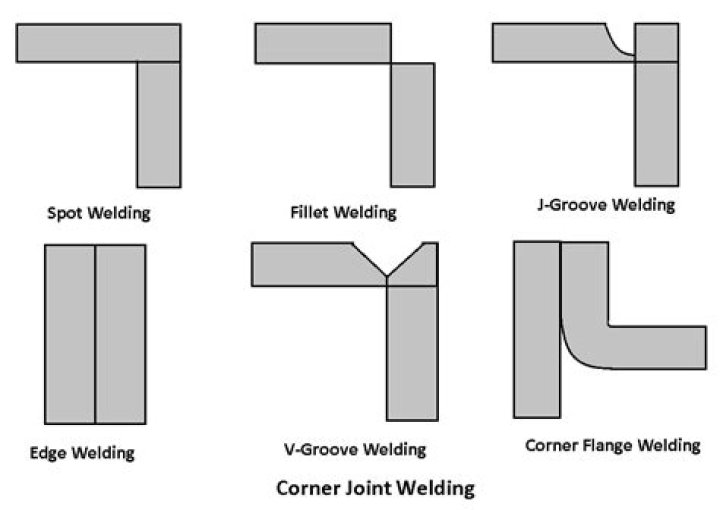

What is Corner joint?

4 The corner joint. The corner joint may be regarded as a butt joint and is used to join two plates at right angles to each other (Fig. 5.4f). It can be difficult to assemble and maintain correct alignment, particularly in thin flexible sheet.

What does Corner Joint mean?

[′kȯr·nər ‚jȯint] (engineering) An L-shaped joint formed by two members positioned perpendicular to each other.

What does a corner joint consist of?

A corner joint consists of two pieces of material joined at their edges to form an L shape. When the edge of one piece lies flush against the edge of the other piece, it is called a closed corner joint.

Which machine is used for edge preparation?

The most used methods for cutting edge preparation of solid carbide tools or inserts are abrasive jet machining and brushing, in addition to those there are also other methods that can be used to achieve desired cutting edge microgeometry [4] . One of these methods is drag finishing. …

What metals is TIG welding good for?

TIG welders can be used to weld steel, stainless steel, chromoly, aluminum, nickel alloys, magnesium, copper, brass, bronze, and even gold. TIG is a useful welding process for welding wagons, bike frames, lawn mowers, door handles, fenders, and more.

How do I choose a welding joint?

1. Factor # 1. Edge Distance:
2. Factor # 2. Overlap:
3. Factor # 3. Fit-Up:
4. Factor # 4. Accessibility:
5. Factor # 5. Electrode Marking or Indentation:
6. Factor # 6. Welding Sections of Unequal Thicknesses:
7. Factor # 7. Weld Strength:

What are plug weld and slot weld?

Use the same procedure to create a plug weld or a slot weld. The only difference is that a plug weld’s shape is defined by a diameter, and a slot weld’s shape is defined by a diameter and a length. … To set the weld type, click the Symbol tab, and then choose Plug, Slot, or Detect Automatically.

What is plug weld joint?

Plug welds are a round weld that is made inside of an existing hole most commonly in one piece of metal, welding that piece to another member. … Some plug welds may include a countersink of the hole of the plug weld. This is called the included angle of countersink.

What are groove welds?

0 Standard Welding Terms and Definitions as “A weld in a weld groove on a workpiece surface, between workpiece edges, between workpiece surfaces, or between workpiece edges and surfaces.” A weld groove is defined as “A channel in the surface of a workpiece or an opening between two joint members providing space to …

What is 5G and 6G welding?

There are mainly four types of pipe welding positions- 1G – Horizontal Rolled Position. 2G – Vertical Position. 5G – Horizontal Fixed Position. 6G – Inclined Position.

What does 5G stand for when welding pipe?

The different welding positions for pipe welding are 1G, 2G, 5G and 6G positions. The 1G is horizontal rolled position weld. The 2G is Vertical Position. The 5G is horizontal fixed position. And the 6G is inclined fixed position that is at about 45 degrees.

Why electrode is coated with flux?

The electrode is coated in a metal mixture called flux, which gives off gases as it decomposes to prevent weld contamination, introduces deoxidizers to purify the weld, causes weld-protecting slag to form, improves the arc stability, and provides alloying elements to improve the weld quality.

What are the 7 basic types of welding?

These include metal inert gas (MIG) welding, stick welding, tungsten inert gas (TIG) welding also know as gas tungsten arc welding (GTAW), gas welding, metal active gas (MAG) welding, flux cored arc welding (FCAW), gas metal arc welding (GMAW), submerged arc welding (SAW), shielded metal arc welding (SMAW) and plasma …

What type of welding is easiest?

Types of welding FAQs MIG welding is generally the easiest to learn. TIG welding is a slower, more precise process that works with many different types of materials. ARC and Oxy-acetylene welding produce strong welds on thick materials and can operate outdoors and underwater.

What type of welding is used for pipelines?

Arc welding is the most common type of welding and is a daily activity at pipelines. It brings serious risk of electric shock from the arc that extends between the electrode and the base material used to fuse materials together.
