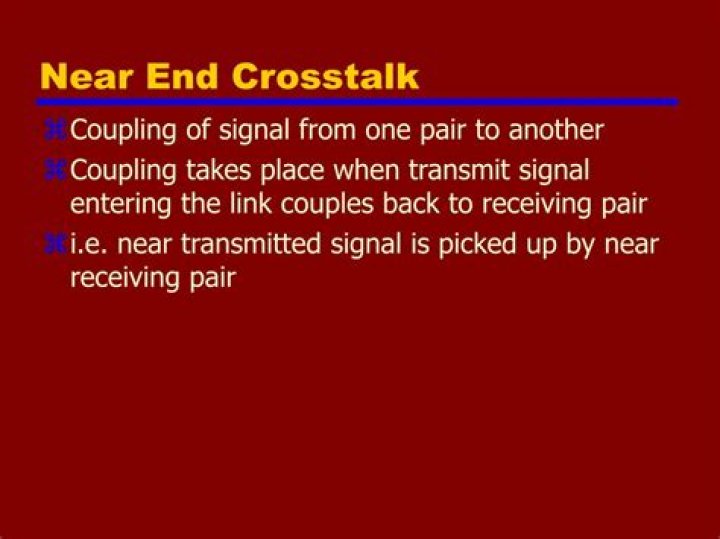

Near end crosstalk (NEXT), is a performance parameter measured within a single link/channel. It measures the signal coupled from one pair to another. The pair causing the interference is referred to as the “disturbing pair” while the pair impacted by the crosstalk is the “disturbed pair.”

What is near end and far end crosstalk?

Near-end and far-end crosstalk define the location (or polarity) where a crosstalk signal is measured in an interconnect: near-end refers to the driver side of the victim interconnect, while far-end refers to the receiver side.

How do I reduce near end in crosstalk?

Best practices to minimize crosstalk To prevent crosstalk, wire pairs in a Cat5e cable should not be untwisted more than 0.5 inches and not more than 0.375 inches for Cat6 cables. Crosstalk can also happen when cables are poorly designed or installed.

What is near end crosstalk measured in?

Near end crosstalk, also known as NEXT, is a performance parameter measured within a single link/channel. It measures the signal from one pair to another. NEXT is measured in decibels (dB). The higher the dB, the less crosstalk is received.

What is next and Fext?

Near- end cross talk (NEXT) happens when a signal from a transmitter at one end of a cable interferes with a receiver at the same end of the cable. Far-end cross talk (FEXT) occurs when a signal interferes with a receiver at the opposite end of the cable from the transmitter.

Which statement accurately describes what near end crosstalk next is?

Which statement accurately describes what near end crosstalk (NEXT) is? NEXT is crosstalk that occurs between wire pairs near the source of a signal.

What is acceptable crosstalk?

Spoiler summary: In single-ended systems, the maximum amount of crosstalk to design for, from all sources, should be less than about 5% of the signal swing. In high speed serial links, a safe value for the maximum crosstalk to design for should be less than -50dB, or 0.3%.

What causes Next on cat6?

If wires are not tightly twisted, the result is Near End Crosstalk (NEXT). … In LANs, NEXT occurs when a strong signal on one pair of wires is picked up by an adjacent pair of wires. NEXT is the portion of the transmitted signal that is electromagnetically coupled back into the received signal.

What is the speed supported by a CAT 5 cable?

The speed of Cat5e cabling supports high-performance networking. Category 5 enhanced cables can deliver Gigabit Ethernet speeds of up to 1000 Mbps. Devices connected by the cable, including switches and routers, should also support the desired data speeds.

What is equal level far end crosstalk?

ACR-F is a calculated result, rather than a measurement. … It is derived by subtracting the Insertion Loss of the disturbing pair from the Far End Crosstalk (FEXT) this pair induces in an adjacent pair. This normalizes the results for length.

Article first time published on

What is the most popular punch down block used for LANS?

The most common punchdown block is the 66 block (or M-Block, which has 50 rows, each with four columns of electrically bonded metal peg clips. The 66 model is often used to cross connect work area outlets and patch panels. 66 model types are a 25-pair standard non-split version and a 25-pair split version.

What can cause crosstalk?

Crosstalk is usually caused by undesired capacitive, inductive, or conductive coupling from one circuit or channel to another. Crosstalk is a significant issue in structured cabling, audio electronics, integrated circuit design, wireless communication and other communications systems.

How is crosstalk prevented?

The only way to reduce alien cross-talk in a traditional UTP system is to increase the physical distance between the cable pairs concerned. In the past, this could be achieved through various measures, all of which were designed to prevent the pairs in the cable from being too close together.

How is next measured?

NEXT is expressed in decibels (dB), and it varies with the frequency of the transmission since higher frequencies create more interference. The higher the dB value, the less crosstalk is received by the disturbed link/channel.

What is crosstalk in Ethernet cables?

The unwanted cable crosstalk is the leaking of signals from one cable pair into another pair. It does not require contact between wires. Crosstalk can impact data transfer rates and impede signal. transmissions. Twisting pairs within the cable helps to reduce crosstalk.

Why is twisted pair wire called twisted pair?

When two wires with separate insulation are twisted around one another, twisted pair cable is the result.

What is crosstalk and how can it be avoided?

Try to spread signals as much as possible and plan your board stack-up is such a way, that also crosstalk can be avoided by signals that lay on top of each other. … By terminating a trace, we can also eliminate or reduce crosstalk.

How do pacemakers prevent crosstalk?

Bipolar electrodes, sophisticated sensing and pacing circuits, and introduction of programmable blanking periods have reduced the susceptibility for AV cross-talk. If cross-talk occurs, inhibition of ventricular pacing can be prevented by the ventricular safety pace option.

What is crosstalk in fiber optics?

Crosstalk in fiber optic network | What is Crosstalk The undesired coupling from one channel to the other is referred as crosstalk. The same has been shown in the figure-1. Far End Crosstalk: It is ratio of optical power from output port-1 and output port-2. The wavelength of the two ports are equal in value.

What does RG rating measure?

RiskGrades (RG) is a trademarked method for calculating the risk of an asset. RiskGrades is a standardized measure for evaluating the volatility of an asset across a variety of asset classes. The scale starts at zero which is the least risky rating.

What is the fastest Ethernet standard that can?

10 Gigabit Ethernet is the fastest and most recent of the Ethernet standards. IEEE 802.3ae defines a version of Ethernet with a nominal rate of 10Gbits/s that makes it 10 times faster than Gigabit Ethernet. Unlike other Ethernet systems, 10 Gigabit Ethernet is based entirely on the use of optical fiber connections.

What is the minimum category of UTP?

Category 5e cable is now the minimum recognized cable for data networking applications, as defined by the current standard. Like Category 5 cable, it also is rated for up to 100 MHz frequencies. Additional performance standards enable it to support transmission speeds of up to 1000 mbps (“gigabit Ethernet”).

Can Cat 5 go over 100 Mbps?

At its time Cat5 cable would become the first ethernet cable to be able to power 10/100 Mbps (Megabits per second). … The Cat 5 speed is capable of 10/100 Mbps and frequencies up to 100MHz all at a length up to 100m (328 Feet).

Is Cat6 faster than Cat5e?

Because CAT6 cables perform up to 250 MHz which is more than twice that of CAT5e cables (100 Mhz), they offer speeds up to 10GBASE-T or 10-Gigabit Ethernet, whereas CAT5e cables can support up to 1GBASE-T or 1-Gigabit Ethernet.

Is there a cat 7a?

Category 7 (Cat7) and Category 7a (Cat7a) are the newest cable standards for Ethernet and other interconnect technologies. Cat 7 cable was developed with strict specifications on crosstalk and EMI protection. … Cat7/7a cable provides a copper solution for 10-Gigabit Ethernet at 100 meters.

What is alien crosstalk?

Alien crosstalk – the interference caused by wire pairs in one cable inducing noise into other wire pairs in adjacent cables – is the transmission parameter that most significantly impacts 10GBASE-T performance.

What is PS next on a Fluke tester?

Power Sum NEXT (PS NEXT) is a calculation, not a measurement. PS NEXT is derived from the summation of the individual NEXT effects on each pair by the other three pairs.

What is the maximum length of a network cable?

Standards for cable distance recommend that Cat5, 5e, and 6 cables have a maximum cable segment run length of 100m or 328 feet. Four pairs of twisted wires are used to construct Category 5, 5e, 6, and 6a cable, which is most commonly unshielded, as in UTP.

How does crosstalk affect a signal?

Crosstalk – Crosstalk occurs when a signal transmitted on one copper twisted pair in a bundle radiates and potentially interferes with and degrades the transmission on another pair. Left unchecked, this can reduce the signal to noise ratio (SNR), and historically was a limiting factor to transmission over copper.

How do you test cable for interference?

1) Disconnect the cable from the data-processing equipment and connect the cable to a cable tester. 2) Take a noise reading. The lower the reading, the less the electrical noise.

How do I reduce crosstalk?

The best way to eliminate crosstalk is to exploit the very parallelism that leads to its creation by closely coupling the return path to ground to your high-speed signals. Since the return path is equal in magnitude but opposite in direction, the fields cancel out and reduce crosstalk.
