In an FMEA, Occurrence is a ranking number associated with the likelihood that the failure mode and its associated cause will be present in the item being analyzed. For System and Design FMEAs, the occurrence ranking considers the likelihood of occurrence during the design life of the product.

What is severity occurrence and detection in FMEA?

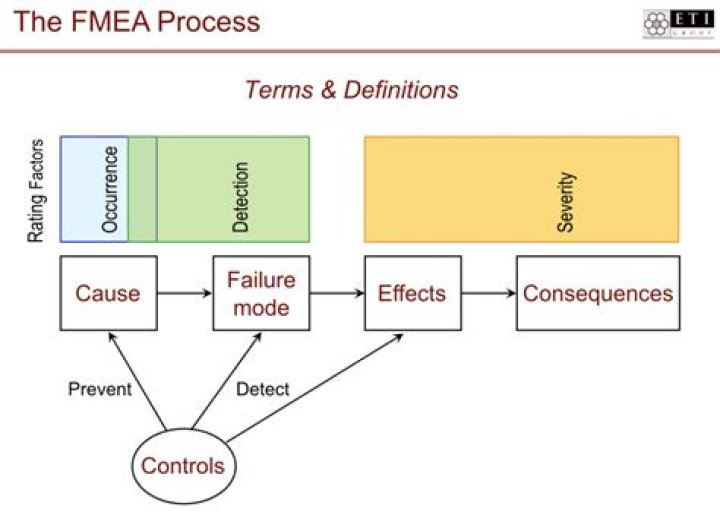

Severity, which rates the severity of the potential effect of the failure. Occurrence, which rates the likelihood that the failure will occur. Detection, which rates the likelihood that the problem will be detected before it reaches the end-user/customer.

How do you determine severity occurrence and detection?

→ The RPN is calculated by multiplying the three rankings together. → Multiply the Severity ranking times, Occurrence ranking times and Detection ranking. → Calculate the RPN for each failure mode and effect.

How do you reduce occurrence in FMEA?

Change the design to eliminate the failure mode or cause It is possible to eliminate the failure mode or cause by changing the design of the product or the process. In FMEA language, eliminating the failure mode or cause will reduce the likelihood of occurrence to the lowest possible level.

What are the 5 steps of the FMEA process?

• Step 1: Identify potential failures and effects. The first FMEA step is to analyze functional requirements and their effects to identify all failure modes. …
• Step 2: Determine severity. Severity is the seriousness of failure consequences of failure. …
• Step 3: Gauge likelihood of occurrence. …
• Step 4: Failure detection.

What Dfmea stands for?

Design failure mode and effect analysis (DFMEA) is a systematic group of activities used to recognize and evaluate potential systems, products or process failures.

What are the 3 types of FMEA?

Types of FMEA: Process FMEA (PFMEA) Functional FMEA (FFMEA) / System FMEA (SFMEA)

What is severity Dfmea?

The severity ranking is an estimate of how serious an effect would be should it occur. To determine the severity, consider the impact the effect would have on the customer, on downstream operations, or on the employees operating the process.

What is potential failure mode in FMEA?

A failure mode is defined as the manner in which a component, subsystem, process, etc. could potentially fail. Failure modes can be identified through existing data, or by brainstorming possible instances when the process, product, or service may fail.

How is detection calculated in FMEA?

1. Risk Priority Number = Severity x Occurrence x Detection.
2. Critical Number (CN) = Severity (S) x Occurrence (O)
3. SOD = 100 x S + 10 x O + D.

Article first time published on

What is a good RPN score?

Severity of event (S)RankingCurrent controls (C)High7Very lowModerate6LowLow5ModerateVery low4Moderately high

What is RPN formula?

The RPN is calculated by multiplying the three scoring columns: Severity, Occurrence and Detection. … RPN = Severity x Occurrence x Detection. For example, if the severity score is 6, the occurrence score is 4, and detection is 4, then the RPN would be 96.

How do you calculate severity in FMEA?

Severity is usually rated on a scale from 1 to 10, where 1 is insignificant and 10 is catastrophic. If a failure mode has more than one effect, write on the FMEA table only the highest severity rating for that failure mode. For each failure mode, determine all the potential root causes.

What is the difference between Dfmea and Pfmea?

DFMEA stands for Design Failure Mode and Effects Analysis and PFMEA stands for Process Failure Mode and Effects Analysis. … So what is the difference between DFMEA and PFMEA? The main difference is objective. While DFMEA focuses on design problems, PFMEA focuses on process problems.

What is boundary diagram in FMEA?

An FMEA Block diagram (or Boundary diagram) is a visual depiction of the entire system or design to clearly show the boundaries of the FMEA (i.e., what is included and not included), the interfaces between the items and other information that can help to depict the scope of the analysis.

What are the main elements of FMEA?

FMEA Pre-Work and Assemble the FMEA Team. Path 1 Development (Requirements through Severity Ranking) Path 2 Development (Potential Causes and Prevention Controls through Occurrence Ranking) Path 3 Development (Testing and Detection Controls through Detection Ranking)

What is an FMEA Matrix?

FMEA is a risk assessment tool, that evaluates the severity, occurrence and detection of risks to prioritize which ones are the most urgent. The two most popular types of FMEAs are Process (PFMEA) and Design (DFMEA). Each category has a scoring matrix with a 1-10 scale.

Who constructs FMEA?

It was developed by reliability engineers in the late 1950s to study problems that might arise from malfunctions of military systems. An FMEA is often the first step of a system reliability study.

How do you write Dfmea?

1. STEP 1: Review the design. …
2. STEP 2: Brainstorm potential failure modes. …
3. STEP 3: List potential effects of each failure. …
4. STEP 4: Assign Severity rankings. …
5. STEP 5: Assign Occurrence rankings. …
6. STEP 6: Assign Detection rankings. …
7. STEP 7: Calculate the RPN. …
8. STEP 8: Develop the action plan.

What is the output of a design FMEA?

Outputs. The main output from an FMEA is a Risk Priority Number (RPN) for each failure mode. The RPN is an objective measure of the priority for fixing any one failure mode or failure mode effect.

What is Pfmea manufacturing?

Process Failure Mode Effects Analysis (PFMEA) is used by manufacturers to detect potential failures that are rooted in the physical process of producing a part. … PFMEA allows manufacturers to build in process safeguards to offset potential failures from occurring.

How do you use Pfmea?

1. Step 1: Review the process. …
2. Step 2: Identify potential failures modes. …
3. Step 3: List the potential effects of each failure mode. …
4. Step 4: Assign severity rating. …
5. Step 5: Define the cause of the failure. …
6. Step 6: Assess current design controls. …
7. Step 7: Assign occurrence ranking.

What is the difference between FMEA and risk analysis?

A Risk Analysis and an FMEA differ in what they analyse – the former examines risks whereas the latter examines failure modes. Consequently, they also differ in the applied method. Yet these differences are often not considered by manufacturers, which can lead to inefficient and ineffective risk analysis processes.

What is DFM and Dfmea?

Design for Manufacturing and Assembly or DFMA is a design process that targets on ease of manufacturing and efficiency of assembly. … DFMA is a combination of two methodologies which are: Design for Manufacturing (DFM): DFM focuses on the design of constituent parts to ease up their manufacturing process.

What is risk priority?

Risk priority combines the assessed likelihood of a risk to occur (i.e. risk probability) and its projected impact. Risk urgency, on the other hand, is a different risk dimension. … By assessing risk priority, project managers can identify and focus on the high-priority risks.

What does detection ranking D 1 indicate?

Explanation: According to common industry scale, the detection ranking (D) 1 indicates the certainly detectable ranking and ranking 10 indicates the uncertainty in detection. It helps engineers rely on the current control measures to detect the likelihood of occurrence of the given failure mode.

Can we change detection in FMEA?

The FMEA team can recommend changes to the existing detection-type controls to increase the likelihood of detection of the cause. … The FMEA team recommends changing the valve test regimen to include foreign material intrusion.

How do you prioritize an RPN?

1. Enable the QoS Control, and select which direction to which you would like QoS to apply.
2. Enter a ratio of bandwidth that you would like to reserve for VPN connection.
3. Click OK to save.

What is sod in FMEA?

A risk priority number (RPN) is calculated in FMEA to analyze the risk associated with potential problems. The RPN takes into consideration: severity, occurrence, and detection (SOD). … Ensure that the team understands the intent of FMEA.

What is a good FMEA score?

Criticality/Severity Definition5Catastrophic3Moderate2Good1Excellent

What is detectability in risk assessment?

Detectability is often defined as the ability to detect a failure before it causes harm. The purpose of considering detection in any scenario is to ensure that potential or actual failures can be identified with enough time to take action before the user is adversely affected.
