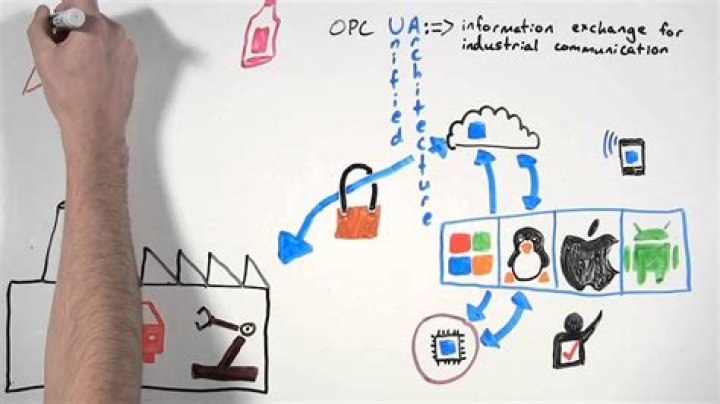

The OPC Unified Architecture (UA), released in 2008, is a platform independent service-oriented architecture that integrates all the functionality of the individual OPC Classic specifications into one extensible framework.

What is OPC UA stands for?

The OPC Unified Architecture (UA), released in 2008, is a platform independent service-oriented architecture that integrates all the functionality of the individual OPC Classic specifications into one extensible framework.

What is OPC standard?

The OPC standard is a series of specifications developed by industry vendors, end-users and software developers. … into a standardized interface allowing HMI/SCADA systems to interface with a “middle-man” who would convert generic-OPC read/write requests into device-specific requests and vice-versa.

Is OPC UA real time?

OPC UA TSN is designed as a real-time Ethernet communication standard that provides open, deterministic, real-time communication between automation systems, as well as to the cloud for Industrie 4.0/IIoT-based production.

What is OPC UA a practical introduction?

OPC stands for Open Platform Communications… … and is one of the most important communication protocols for Industry 4.0 and the IoT. With OPC, access to machines, devices and other systems in the industrial environment is standardized and enables similar and manufacturer-independent data exchange.

What protocol does OPC UA use?

OPC UA supports two protocols. This is visible to application programmers only via changes to the URL. The binary protocol is opc. tcp://Server and is for Web Service.

Is OPC UA an API?

One of the more popular mechanisms to interface applications is Web Services. It’s sometimes helpful to think of Web Services as merely some kind of API wrapped in HTTP. … OPC UA is an open architecture standard way for applications, controllers, sensors and other devices to interact.

What is OPC DA and UA?

OPC DA allows to access only the current data and is incapable to generate alarms, historical events whereas OPC UA supports features like historical events, multiple hierarchies and provides methods and programs (that are called commands).

Where is OPC UA used?

OPC UA is compatible with Windows, macOS, Android, and Linux. It can also be used in embedded systems and bare-metal systems, which do not use an operating system. OPC UA works on PCs, cloud-based infrastructures, PLCs, micro-controllers, and cyber physical systems (CPS).

Is OPC UA a fieldbus?

Extending OPC UA to the field level ‘will end fieldbus wars’ – Drives and Controls Magazine. The OPC Foundation has announced plans to extend vendor-independent end-to-end interoperability down to field-level devices such as sensors and actuators.

Article first time published on

How does OPC UA work?

OPC UA is used as a transport route and IT standard featuring integrated security. As an OPC UA client, the controller pushes the data as “historical access” data directly into the “big data management solution” stored in the cloud.

Is OPC UA free?

OPC UA Client is a free client tool that supports the main OPC Unified Architecture information models. These models are Data Access, Alarms & Conditions, and Historical Data Access.

What is OPC UA PDF?

OPC Unified Architecture (OPC-UA) is the data ex- change standard for safe, reliable, manufacturer- and platform-independent industrial communication. It enables data exchange between products from different manufacturers and across operating sys- tems.

What is OPC UA data model?

OPC UA defines a generic object model including the associated type system. The base model provides object and variable types as well as reference and data types. … Based on this model, OPC UA can represent every kind of data including their metadata and semantics.

Does OPC UA use TCP or UDP?

Just as with HTTP, SOAP is used as the request-response protocol to move the OPC UA requests between Clients and Servers. UA TCP TRANSPORT – UA TCP is a simple TCP-based protocol designed for Server devices lacking the resources to implement XML encoding and HTTP/SOAP type transports.

Is OPC TCP or UDP?

Firewalls and security. DCOM relies on dynamically-assigned TCP ports. When an OPC client connects to an OPC server, it connects to port 135 (the RPC port mapper), which assigns one TCP port and one UDP port to the component. Communication between client and server is directed to those ports.

What is OPC UA stack?

OPC UA Stack OPC UA application software development is based on a layered architecture. OPC UA stacks implement the TCP/IP communication protocol defined by OPC Foundation. There are different stacks for different programming languages and environments, including ANSI C Stack, . NET Stack and Java Stack.

What are the advantages of OPC UA?

OPC UA is the main successor to classic OPC and one of its main advantages is that it is platform independent so it can be easily incorporated with Windows, Linux, Mac, Android and other platforms, which is significant for the manufacturing industry where machines and systems are often running on different platforms.

Is OPC UA the future?

OPC UA is in your future Hands down, OPC UA is the most open, reliable, secure technology for moving data between factory, enterprise applications, and the cloud. For that reason alone, it will be part of your future industrial network. There are two other reasons, however.

What IEC 62541?

IEC 62541-5:2020 defines the Information Model of the OPC Unified Architecture. The Information Model describes standardized Nodes of a Server’s AddressSpace. These Nodes are standardized types as well as standardized instances used for diagnostics or as entry points to server-specific Nodes.

How do I connect fieldbus?

Connect the FOUNDATION fieldbus Power Plug to the FF pwr terminal and the positive (red) terminal on the lead set. Open the Field Communicator application. Tap Fieldbus. Tap Yes when prompted if you want to provide power to the device from the Trex unit.

What is OPC Quick Client?

The OPC Quick Client enables users to read and write data, perform structured test suites, and test server performance. Its comprehensive error reporting provides detailed feedback regarding any OPC errors returned by the server, helping diagnose common OPC client/server issues.

Which security modes are supported by OPC UA?

Security Mode: According to the white paper, the OPC UA Security Mode “should be [set to] ‘Sign’ or ‘SignAndEncrypt’. This ensures that authentication at the application level is forced. Security Mode ‘SignAndEncrypt’ must be used if integrity and confidentiality of data has to be protected.”

What layer is OPC UA?

Transport Layer OPC UA defines message security for the binary as well as for the web service protocol.
