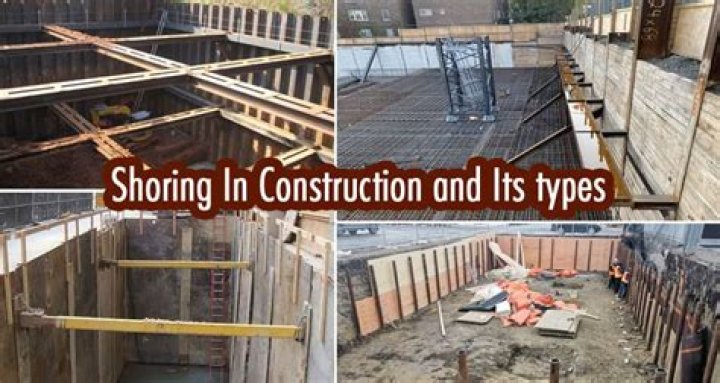

Shoring or shielding is used when the location or depth of the cut makes sloping back to the maximum allowable slope impractical. Shoring systems consist of posts, wales, struts, and sheeting. There are two basic types of shoring, timber and aluminum hydraulic.

At what depth do you need shoring?

Trenches 5 feet (1.5 meters) deep or greater require a protective system unless the excavation is made entirely in stable rock. If less than 5 feet deep, a competent person may determine that a protective system is not required.

What is shoring used for?

Shoring is the process of temporarily supporting a building, vessel, structure, or trench with shores (props) when in danger of collapse or during repairs or alterations. Shoring comes from shore, a timber or metal prop. Shoring may be vertical, angled, or horizontal.

Where is shoring required?

Cracked Wall Repairs Require Shoring If there are cracked walls in construction sites, it’s necessary to repair them.

In what circumstance that is required to implement the shoring?

Trenches are very prone to collapse though, and because of this they need to be stabilized with trench shoring. Trench shoring is material that is used to support a trench so that it doesn’t collapse, and it is very important to the safety of any workers that will be moving around in the trench.

What is the proper slope for excavation?

SOIL OR ROCK TYPEMAXIMUM ALLOWABLE SLOPES (H:V)(1) FOR EXCAVATIONS LESS THAN 20 FEET DEEP(3)STABLE ROCK TYPE A (2) TYPE B TYPE CVERTICAL (90º) 3/4:1 (53º) 1:1 (45º) 1 ½:1 (34º)

When should a trench box be used?

In rules set for trench box applications, OSHA requires a protective system be used when trench depths reach 5 ft. or more. Protective systems also are required for trenches less than 5 ft. deep if the soil could cave in when the trench is dug, according to United Rentals.

What are the rules for careful excavation?

• Inspect trenches daily before work begins. …
• Check weather conditions before work, be mindful of rain and storms.
• Keep heavy equipment away from trench edges.
• Be mindful of the location of utilities underground.
• Always wear proper protective equipment.
• Don’t work beneath raised loads.

What is the purpose of trench shoring?

As long as you are in the trench you should stay inside the box. Shoring is a system that supports walls to prevent soil movement. It also helps to support underground utilities, roadways and foundations. The two types of shoring most commonly used are timber and hydraulic.

What is the purpose of excavation?

Excavation is the process of moving things like earth, rock, or other materials with tools, equipment, or explosives. It includes earthwork, trenching, wall shafts, tunneling, and underground. Excavation has several critical purposes, including exploration, environmental restoration, mining, and construction.

Article first time published on

How do you use a sheet pile?

1. Arrange the sheets in sections to check if the piles will interlock correctly or not.
2. Hammer the first sheet to the defined depth as per the design.
3. Use vibratory hammers for installation, but use impact hammers if the soil is hard or dense.

What are the methods of shoring?

• Soldier Pile and Lagging.
• Pressure / Chemical Grouting.
• Soil Nails and ShotCrete.
• Hydraulic Shoring.
• Pneumatic Shoring.
• A choice of Timber or Aluminium materials.

How is shoring done?

The process begins with digging into the earth, the depth depends on how many floors of underground parking is proposed for the building. Once the digging is complete, the shore is lowered into the ground. The shore, or prop, is made of concrete and is the first layer of building material.

Why is underpinning required?

For most homeowners, underpinning is required when the original foundation is not strong enough to support the house. … the soil supporting the foundation has changed in some way e.g. through subsidence, expansion/contraction due to moisture, large trees nearby, damaged plumbing left unrepaired.

What are the forces considered in the design of shoring?

Typically, there are two systems in excavation shorings that must be designed: A) the Earth Retention System that contains the earth i.e. the support wall (sheet pile, diaphragm wall, etc.), and b) the Support System (i.e. the internal or external bracing such as rakers, struts, or tiebacks) that supports the earth …

What is 4H 1V slope?

Side slopes of 1V:4H or flatter are considered traversable and recoverable. Slopes of 1V:3H are traversable, but are not recoverable. Slopes steeper than 1V:3H are neither traversable nor recoverable.

What is 2H 1V slope?

Footnote(2) A short-term maximum allowable slope of 1/2H:1V (63 degrees) is allowed in excavations in Type A soil that are 12 feet (3.67 m) or less in depth.

What is the OSHA standard for excavation?

OSHA requires employers to provide ladders, steps, ramps, or other safe means of egress for workers working in trench excavations 4 feet (1.22 meters) or deeper. The means of egress must be located so as not to require workers to travel more than 25 feet (7.62 meters) laterally within the trench.

Why should timbering be used when excavating?

to prevent damage to adjacent property which may occur if trenches are got out too close to structures such as boundary walls, etc.; if the trench bottom is below the foundation the wall may become unsafe and will possibly overturn.

When must an excavation inspection be undertaken?

Inspection. A competent person who fully understands the dangers and necessary precautions should inspect the excavation at the start of each shift. Excavations should also be inspected after any event that may have affected their strength or stability, or after a fall of rock or earth.

What precaution should be taken during excavation of foundation trenches?

Excavations shall have at least one ladder per 15 m of length in case of hazardous work and per 30 m of length in case of less hazardous works. Every part of a trench, in public areas, fences, guards or barricades shall be provided to prevent any accidents. Excavation areas shall be adequately lighted for night work.

What you should do before you begin an excavation?

• Inspect your trenches daily before work begins. …
• Check the predicted weather forecast. …
• Ensure every worker is wearing appropriate PPE. …
• At the beginning of the day, conduct an atmosphere test.

What are some safety precautions for scaffolding?

• Use proper safety equipment. …
• Mind load limits. …
• Know all relevant regulations and standards. …
• Inspect scaffolding materials. …
• Build properly. …
• Inspect the site and equipment – again. …
• Keep vehicles and heavy equipment clear. …
• Stay organized.

What should I do after excavation?

After excavation, layout the foundation and backfill the remaining excavated area around foundation with soil. Floor levels of residential buildings are higher than the natural ground level. Fill the area with soil up to floor levels and compact the soil. Now earth work of residential building is finished.

What does the word excavation?

1 : to form a cavity or hole in. 2 : to form by hollowing out. 3 : to dig out and remove. 4 : to expose to view by or as if by digging away a covering excavate the remains of a temple.

Why sheet piles are used?

Sheet pile walls have been used to support excavations for below-grade parking structures, basements, pump houses, and foundations, to construct cofferdams, and to construct seawalls and bulkheads. Permanent steel sheet piles are designed to provide a long service life.

What are steel piles used for?

Steel pipe piles and steel pipe sheet piles are used in a number of applications, from foundation piles to retaining walls. Sluice gates, estuary weirs, revetments, etc. Other foundation piles, landslide prevention piles, retaining walls, column structures, etc.

Why sheet piles are provided and which is the preferred position?

They have good driving qualities and are designed to provide the good strength for low weight. The interlocking system facilitates easy positioning of the piles (pitching) and driving, as well as providing a close-fitting joint to form an effective water seal.

What is the purpose of diaphragm wall?

Diaphragm walls are underground structural elements commonly used as retention systems and permanent foundation walls. They can also be used as groundwater barriers.

What are the three types of shoring?

• 1). H or I-Beam Shoring. The first on this list of common shoring types is the H or I-Beam Shoring. …
• 2). Secant Pile Shoring. The next type of shoring on this list is the Secant Pile Shoring. …
• 3). Contiguous Pile Shoring. …
• 4). Sheet Piles.

When should an excavation be battered back?

What is the 1.2m excavation rule? The 1.2m rule for trenches used to be in older health and safety regulations and is often still quoted today. The basis of the rule is that, if a trench is under 1.2m deep, then people can enter the trench without the sides of the excavation being supported or battered back.
