Helium is used to inflate the balloon as it is low density means there is little turbulent flow, so the balloon can inflate fast and deflate slowly. It is also relatively benign and eliminated quickly if there is a leak or rupture in the balloon.

Does a balloon pump use helium?

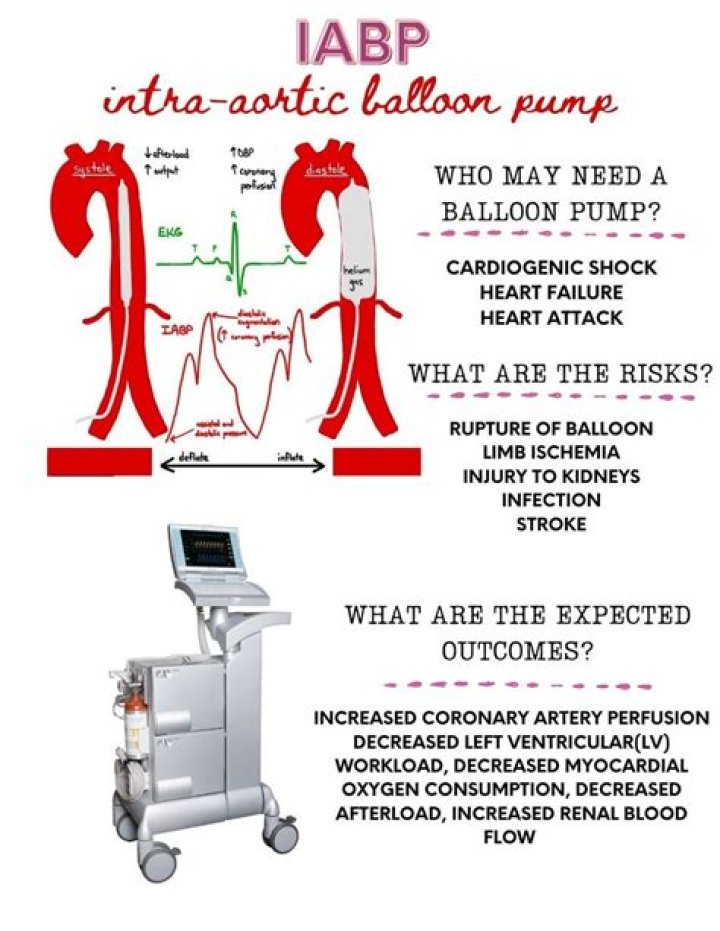

The balloon pump catheter is inserted into an artery in the leg and then guided into the aorta. The device is connected to a machine that regulates the balloon to increase and decrease in size. It uses helium to inflate the balloon as helium doesn’t cause problems in the body if it leaks.

What is the purpose of an IABP?

An IABP allows blood to flow more easily into your coronary arteries. It also helps your heart pump more blood with each contraction. The balloon is inserted into your aorta.

What are IABP filled with?

The IABP consists in a polyethylene or PU balloon mounted at the distal tip of a large bore catheter. The catheter is generally inserted into the aorta through the femoral artery in the leg. Outside the catheter is connected to a console that inflates the balloon with helium.

What is the augmentation on a IABP?

The IABP augments coronary per- fusion pressure (CPP) by increasing aortic diastolic pres- sure (DBP) and decreasing the left ventricular end-diastolic pressure (LVEDP) in the form of the equation: CPP = DBP − LVEDP.

Does IABP decrease preload?

Aorta↓systolic pressure, ↑diastolic pressureHeart↓afterload, ↓preload, ↑cardiac outputBlood flow↑→ coronary blood flow

How does IABP reduce afterload?

The intra-aortic balloon, by inflating during diastole, displaces blood volume from the thoracic aorta. In systole, as the balloon rapidly deflates, this creates a dead space, effectively reducing afterload for myocardial ejection and improving forward flow from the left ventricle.

When should IABP inflation occur?

IABP is required to be timed accurately to give maximum benefit. Inflation of the IABP should occur on the dicrotic notch of the arterial waveform. Deflation should occur prior to systole as indicated by the downward stroke.

What is cardiogenic shock?

Cardiogenic shock is a life-threatening condition in which your heart suddenly can’t pump enough blood to meet your body’s needs. The condition is most often caused by a severe heart attack, but not everyone who has a heart attack has cardiogenic shock. Cardiogenic shock is rare.

What is IABP ratio?

The amount of aid a balloon pump provides can be quantified as a ratio of native beats to assisted beats. Full support is at a ratio of 1:1; that is, every beat is augmented by the IABP. Weaning occurs by gradually reducing the augmentation ratios to 1:2, 1:4, and then 1:8.

Article first time published on

How does IABP help cardiogenic shock?

The use of the IABP reduces systolic LV afterload and augments diastolic coronary perfusion pressure, thereby increasing cardiac output and improving coronary artery blood flow. The IABP is effective for the initial stabilization of patients with cardiogenic shock.

What is the functions of aorta?

The aorta is the main artery that carries blood away from your heart to the rest of your body. The blood leaves the heart through the aortic valve. Then it travels through the aorta, making a cane-shaped curve that allows other major arteries to deliver oxygen-rich blood to the brain, muscles and other cells.

Why is IABP contraindicated in aortic regurgitation?

Significant aortic regurgitation is considered a contraindication for the usage of an IABP, because inflation of the balloon during diastole increases the amount of blood regurgitating into the left ventricle.

What does Dicrotic notch represent?

The dicrotic notch, which is widely believed to represent the closure of the aortic valve, (but in fact…) The diastolic phase, which represents the run-off of blood into the peripheral circulation.

How does IABP increase cardiac output?

The balloon, sitting approximately an inch distal to the subclavian artery, inflates and deflates in diastole and systole, respectively, thereby delivering counterpulsation. This increases coronary blood flow and myocardial oxygen delivery and decreases afterload resulting in a rise in cardiac output.

What is the normal pulse pressure?

The normal range of pulse pressure is between 40 and 60 mm Hg. Pulse pressure tends to increase after the age of 50. This is due to the stiffening of arteries and blood vessels as you age.

What is augmented pressure?

Abstract. Augmentation pressure (AP), the increment in aortic pressure above its first systolic shoulder, is thought to be determined mainly by pressure wave reflection but could be influenced by ventricular ejection characteristics.

What increases stroke volume?

Your heart can also increase its stroke volume by pumping more forcefully or increasing the amount of blood that fills the left ventricle before it pumps. Generally speaking, your heart beats both faster and stronger to increase cardiac output during exercise.

How long can IABP be used?

The catheter connects to a computer that controls the rate of inflation and deflation. While most patients only use the IABP for a few days, it can stay in place for up to a month.

What is ventricular afterload?

The afterload is the amount of pressure that the heart needs to exert to eject the blood during ventricular contraction. This is recorded as the systolic pressure of the heart. The changes in the afterload affect the stroke volume, end-systolic volume, end-diastolic volume, and left ventricular end-diastolic pressure.

Why is a defibrillator used?

AEDs are used to revive someone from sudden cardiac arrest. This usually occurs when a disruption in the heart’s electrical activity causes a dangerously fast heartbeat (ventricular tachycardia) or a fast and irregular heartbeat (ventricular fibrillation).

What is hypotensive shock?

Hypovolemic shock is a dangerous condition that happens when you suddenly lose a lot of blood or fluids from your body. This drops your blood volume, the amount of blood circulating in your body. That’s why it’s also known as low-volume shock. Hypovolemic shock is a life-threatening emergency.

What are the 3 types of shock?

• Cardiogenic shock (due to heart problems)
• Hypovolemic shock (caused by too little blood volume)
• Anaphylactic shock (caused by allergic reaction)
• Septic shock (due to infections)
• Neurogenic shock (caused by damage to the nervous system)

When does the IABP balloon inflate?

In normal inflation-deflation timing, balloon inflation occurs at the onset of diastole, after aortic valve closure; deflation occurs during isovolumetric contraction, just before the aortic valve opens. In a properly timed waveform, as shown, the inflation point lies at or slightly above the dicrotic notch.

What is unassisted systole?

The second arterial pressure waveform shows a balloon inflation/deflation cycle. The systolic peak of this waveform is called unassisted systole because the previous cardiac cycle (first waveform) wasn’t assisted by the IABP.

Where does the balloon of the IABP lie when properly inserted?

The IABP is placed inside your aorta, the artery that takes blood from the heart to the rest of the body. The balloon on the end of the catheter inflates and deflates with the rhythm of your heart.

How is cardiogenic shock treated?

Medications to treat cardiogenic shock are given to increase your heart’s pumping ability and reduce the risk of blood clots. Vasopressors. These medications are used to treat low blood pressure. They include dopamine, epinephrine (Adrenaline, Auvi-Q), norepinephrine (Levophed) and others.

How do you advance an IABP?

Advance IAB catheter through sheath using short strokes until correct placement is achieved, then advance sheath seal into hub of sheath. Remove IAB catheter from T-handle by pulling STRAIGHT out to avoid damaging it. Do not dip, wipe, or handle membrane prior to insertion.

Where should balloon pump be on xray?

Radiographic features The balloon should be located in the proximal descending aorta, just below the origin of the left subclavian artery. On a chest radiograph, it should be at the level of the AP window.

How does an Impella work?

The Impella pulls blood from the ventricle and pushes it out into the aorta, delivering oxygen-rich blood to the rest of your body. This allows your heart to rest while the doctor performs the PCI. Once the PCI procedure is complete, the Impella is turned off and guided out.

How do you use a pink balloon pump?

1. Plug in the power supply. Put a latex ball around the air nozzle.
2. Put the switch, Cover inflation port with balloon.
3. Choose manual and automatic pumping modes inflate balloon.
4. Release and stop the exhaust when balloon size is suitable.
