A 30-amp circuit breaker requires a minimum of 10-gauge wire for the conductor, according to the American Wire Standard, or AWS. Using a wire larger than 10-gauge on a 30-amp circuit can pose a significant fire and safety risk. … The cost of the thicker wire gauge can be significantly more expensive than thinner wire.

How far can you run 10 gauge wire for 30 amps?

How far can 10 gauge wire carry 30 amps? 30 amps carried over a 10 gauge wire is not meant to be run over far distances. If you plan on going over 150 feet, you should upgrade the wire size from 10 gauge to 8 gauge.

Can I put a 35 amp breaker on 10 gauge wire?

Number 10 AWG wire can be used in motor circuits with a 35A calculated load. Example a motor full load current rating of 28A X 125%= 35A. The number 10 wire may be used per the National Electrical Code (USA).

What size wire do I need to run for a 30 amp breaker?

For a maximum of 30 amps, you’ll need a wire gauge of 10. The most common household item that requires a 30 amp circuit is a central air conditioner.

What size wire do I need for a double pole 30 amp breaker?

In the breaker panel it’s hooked up to a 30-amp double pole breaker with #12 wire. Inspector notes that #10 wire should be used for 30-amp circuits so that the wire does not melt before the breaker can do its job in an over-current situation.

Can you use 12 gauge wire on a 30 amp breaker?

You should not use a 30-amp circuit breaker on a 12-gauge wire. The circuit breaker installed on a circuit is of a specific size to protect a certain wire gauge. … This higher current can damage the thinner wire, melt the insulation, cause short circuits, fire, and even lethal shock.

What size wire do I need to run 300 feet?

for 300 feet for 100 amp rated service I would use Aluminum direct burial 1/0-1/0-1/0-1/0, the forth can be as low as #4 for the ground (but also in conduit, even if in conduit must still be rated underground wire and required by code also) Also note the size wire the breaker can handle, cannot cut strands to make fit, …

How many amps can a 30 amp breaker handle?

Keep loads within the safe maximum for each breaker. The safe maximum calculation is 80%. If breaker is rated 30 amp, then 30 x . 8 = 24 amp safe maximum.

Can you use 8-gauge wire on a 30 amp breaker?

Originally Answered: Can an 8-gauge wire handle 30 amps? Yes, it can. Under the NFPA Article 70 (National Electrcal Code), #8 wire is rated for 50 amps under certain conditions, however it is usually protected at 40 amps.

Will 10-gauge wire carry 50 amps?

A 10-gauge bare copper wire can carry a 50-amp load, but the resistance in the cable will cause it to heat up substantially.

Article first time published on

How many amps is a 10 gauge wire good for?

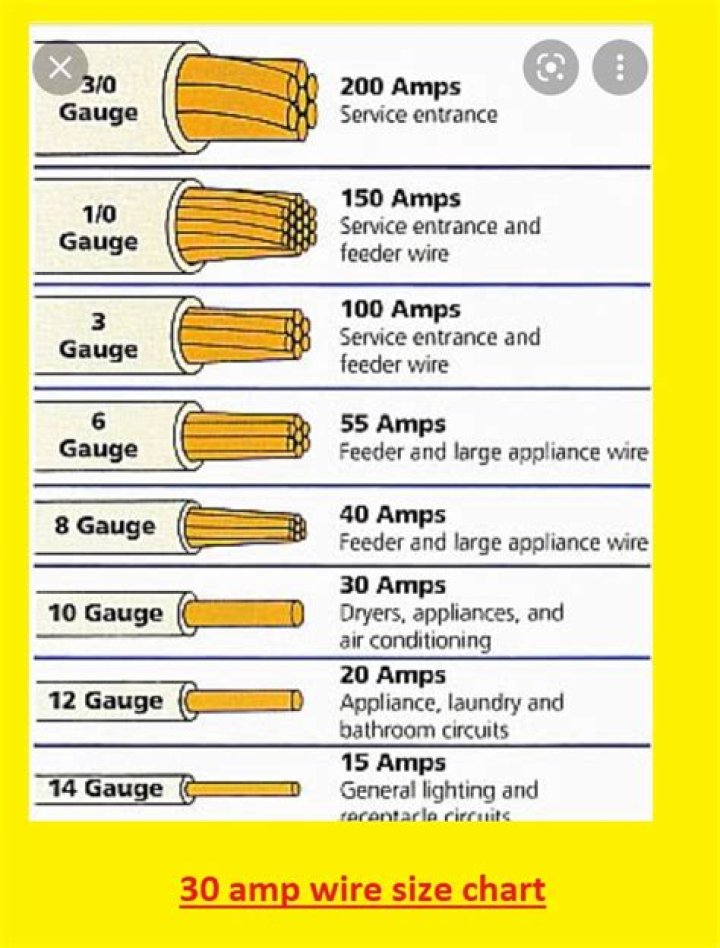

NM, TW, & UF WIRE (Copper Conductor)SE CABLE (Copper Conductor)14 AWG – 15 AMPS8 AWG – 50 AMPS12 AWG – 20 AMPS6 AWG – 65 AMPS10 AWG – 30 AMPS4 AWG – 85 AMPS8 AWG – 40 AMPS2 AWG – 115 AMPS

Can I use a 40 amp breaker with 10 gauge wire?

Of course you CAN, but it is not safe. A 40 amp breaker will not sufficiently protect a #10 wire, possibly causing a fire. #8 copper wire is appropriate for a 40 amp breaker.

How many amps can 10 Thhn wire carry?

#10 Gauge THHN Copper Stranded Wire is the most popular single conductor copper wire and RATED FOR 30 AMPS. Our 10 AWG THHN Stranded Wire is THWN-2 dual rated, in stock, and can ship immediately.

Can I use double-pole breaker for 120V?

Double-pole breakers have two hot wires that are connected by a single neutral wire. That means if there’s a short circuit on either of the poles’ hot wires, both trip. These breakers can be used to serve two separate 120-volt circuits or they can serve a single 240-volt circuit, such as your central AC’s circuit.

How far can you run 10 2 wire?

The size of the wire you run to your shed depends on how far away it is and whether you use 120V or 240V. If your shed is 50 feet from your breaker box, you can use 10/2 AWG UF-B wire for a 120V circuit up to 20A. This will allow you to run multiple machines at the same time while providing light to your shed.

Does it matter which wire goes where on a double-pole breaker?

Connect the red wire to the lug on one of the breaker terminals – it doesn’t matter which one – and the black wire to the other terminal. The breaker usually hooks or snaps into the chosen slot. Remember, you need two adjacent slots for a double-pole breaker.

How far can you run Romex wire?

14 AWG100 feet12 AWG120 feet10 AWG128 feet8 AWG152 feet6 AWG188 feet

What wire size do I need to go 100 feet for a 60 amp service to a workshop?

For 60 amps #6 wire is the right size. Use RHW or THHN type insulation.

How far can I run 4 0 aluminum?

Result: 1 conductors per phase utilizing a #400 Aluminum conductor will limit the voltage drop to 2.94% or less when supplying 100.0 amps for 250 feet on a 120 volt system.

Can I use 12 gauge wire 220?

The same 12-gauge wire can be used for a 220v, 20-amp outlet to run power tools. … You need a different type of receptacle and 10-gauge cable if the appliance draws 30 Amps.

Can I use a 30 amp breaker instead of 20?

The answer is, “No, do not put a 30 Amp breaker in place of a 20 Amp breaker because the wiring is most likely’sized’ for the 20 Amp load and -may- overheat if a 30 Amp load is used with wiring sized for a 20 Amp load.”

What would you use a 30 amp breaker for?

The 15-amp and 20-amp breakers are used for baseboard heating, the 30-amp breakers are used for water heating, the 40- and 50-amp breakers are used for electric ranges, and the 70-amp breakers are used for air conditioning.

Can you use 14 gauge wire on a 30 amp breaker?

If the wire to the 30 Amp breaker is only 14 gauge, you don’t have a breaker, you have a 30 foot long fuse, and it will burn in two before the breaker senses the need to trip. Check out the fan and light if you match the wire size to the breaker size. Yes, it is.

How long can I run 12 gauge wire?

You can run 50′ on a 12 gauge wire.

What size wire do you use for a 240 circuit?

A 20-amp 240-volt circuit calls for 12-gauge wire; a 30-amp circuit calls for 10-gauge wire; a 40-amp circuit calls for 8-gauge wire; and a 50-amp circuit calls for 6-gauge wire.

Can I use 10 gauge wire on a 20 amp circuit?

Yes, you can use 10 AWG copper conductors with a 20 ampere breaker. The smallest size conductors you could use with a 20 ampere breaker, are 12 AWG copper conductors. There’s no problem using larger conductors, other than cost to you, and difficulties associated with working with thicker conductors.

Can I use a 15 amp outlet on a 30 amp breaker?

Typically, a 30-amp breaker is designed for heavy-duty appliances like HVACs and water heating systems. Besides, it can only accommodate 30-amp receptacles if it’s a single-outlet circuit breaker. … Then, we can use 20-amp and 15-amp receptacles on the 30-amp circuit.

When should a 30 amp breaker trip?

Looking further down the graph to where it should trip, we find that a 30 Amp breaker will trip in about 10 seconds if carrying 60 Amps (200% of rating). A short pulse of 200% overload (say, 5 seconds) will not cause a trip, but a continuous 200% overload will, after about 10 seconds.

Can you replace a 30 amp breaker with a 50 amp?

To safely convert 30 amp to 50 amp breakers, the circuits have to be able to support the higher load. … A 30-amp breaker requires a 10-gauge wire, while a 50-amp one will need an 8-gauge one. This doesn’t take into consideration how long the wire run will be.

What is 10 2 Romex used for?

Wire Gauge or TypeRated AmperageCommon Uses10-2 Romex30 AElectric water heater, baseboard heaters10-3 Romex30 AElectric Clothes Dryer6/3 Cu Range Cable50 ARange, Heatpump, On-Demand Electric Water heater2 Gauge Copper100 ACentral Electric Heat

How many amps can 10 gauge wire handle at 240 volts?

240 Volt, Conductor Size (AWG or kcmil) Single Phase, Max 3% Voltage Drop*Copper1220 AMP**Copper1030 AMP**Aluminum830 AMP**Copper840 AMP**
