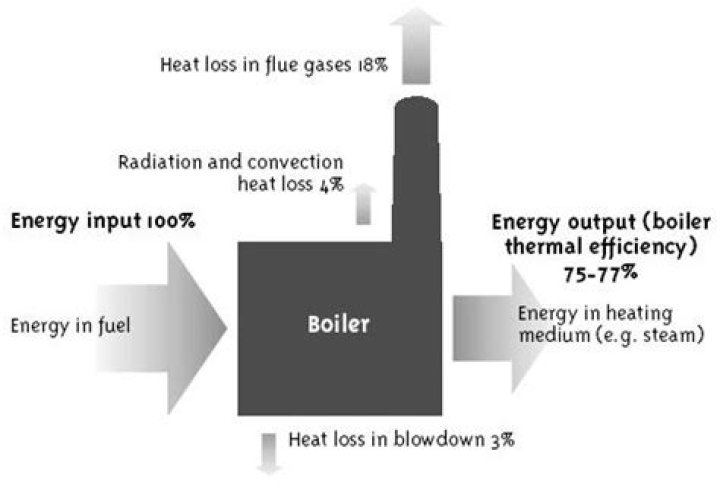

The major energy losses associated with boilers fall into two categories: stack losses‚ and radiation and convection losses.

What are the three main components of the energy losses in a boiler?

Boiler efficiency is a measure of the total energy input to a boiler vs. its total energy output. In effect, it is an indication of the energy losses encountered during boiler operation through radiation, convection and inefficient combustion.

What are the various types of heat losses explain in detail?

Name 4 types of heat loss.1. Convection 2. Radiation 3. Evaporation 4. ConductionExplain RadiationLoss of heat from the body surface to a cooler solid surface not in direct contact, but in relative proximity.Explain EvaporationLoss of heat that occurs when a liquid is converted to a vapor.

What is the greatest heat loss in a boiler?

The largest boiler efficiency loss is sensible heat lost as hot flue gases (and ash) exit the boiler. Unburned carbon losses equate to the fraction of combustible fuel which is not burned in the boiler. Other efficiency losses occur due to heat radiation and convection to the boiler surroundings.

What are the causes of heat losses in boiler?

• Loss due to dry flue gas.
• Loss due to hydrogen in fuel.
• Loss due to moisture in fuel.
• Loss due to moisture in air.
• Loss due to carbon monoxide.
• Loss due to surface radiation.
• Unburnt losses in fly ash.
• Unburnt losses in bottom ash.

What is thermal efficiency of a boiler?

The thermal efficiency of a boiler specifies the effectiveness of the heat exchanger of the boiler which actually transfers the heat energy from fireside to water side. Thermal efficiency is badly affected by scale formation/soot formation on the boiler tubes.

What is flue gas heat loss?

Flue Gas Losses – Flue gas losses are the leading cause of heat loss in boilers. They occur when heated gas leaves the boiler via the stack. As boiler load increases, so does flue gas temperature. As flue gas temperature increases, so do flue-gas heat losses.

How can I increase the efficiency of my boiler?

1. Increase Boiler Efficiency: Lower the Stack Temperature. …
2. Install an Economizer. …
3. Tune the Burner Regularly. …
4. Install a Variable Frequency Drive. …
5. Increase Boiler Efficiency: Insulate your Valves. …
6. Clean the Fireside. …
7. Preheat Combustion Air. …
8. Clean the Water Side.

What is the difference between latent and sensible heat?

Latent heat is related to changes in phase between liquids, gases, and solids. Sensible heat is related to changes in temperature of a gas or object with no change in phase.

What is the pH value of water permissible for boiler?

Boiler pH. Natural water is usually between 6.5 and 7.5 pH. A common recommendation is to maintain boiler water at 8.5 pH.

Article first time published on

What are the 4 types of heat loss?

• Evaporation of water from your skin if it is wet (sweating). …
• Radiation (similar to heat leaving a wood stove). …
• Conduction (such as heat loss from sleeping on the cold ground). …
• Convection (similar to sitting in front of a fan or having the wind blow on you).

How many types of heat are lost?

There are four types of heat loss within any building. These include thermal radiation, conduction, convection, and air infiltration. To understand these heat loss mechanisms or heat transfer, let’s start at the surface of a door inside a warm building with a cold outside temperature.

What are four methods of heat loss?

Heat can be lost through the processes of conduction, convection, radiation, and evaporation. Conduction is the process of losing heat through physical contact with another object or body. For example, if you were to sit on a metal chair, the heat from your body would transfer to the cold metal chair.

Which loss carries more heat with it?

Heat loss through evaporation and respiration increases in dry, windy weather conditions. Wet clothing greatly increases heat loss through conduction and evaporation. Heat loss in cold, wet weather increases the risk for hypothermia and cold injury. Heat loss can occur in warm temperatures through conduction.

How do boilers reduce heat loss?

Most heat losses are due to the high temperature of dry flue gases leaving the boiler. Boiler maintenance should be done regularly and be removing the scale deposited on the heat transfer tubes should be given prime importance as this scale prevents the transfer of heat between flue gas and water.

What are the major losses in furnace?

These furnace losses include: • Heat storage in the furnace structure • Losses from the furnace outside walls or structure • Heat transported out of the furnace by the load conveyors, fixtures, trays, etc. Radiation losses from openings, hot exposed parts, etc.

What is the difference between dry flue gas loss and wet flue gas loss?

The dry flue gas loss accounts for the heat lost up the stack in the “dry” products of combustion, that is, CO2, O2, N2, CO and SO2. These carry away only sensible heat, whereas the “wet” products, mainly moisture from the combustion of hydrogen, carry away both latent and sensible heat.

What is hydrogen loss in boiler?

Loss due to moisture from the combustion of hydrogen (LH) The hydrogen component of fuel leaves the boiler as water vapour, taking with it the enthalpy – or heat content – corresponding to its conditions of temperature and pressure. The vapour is a steam at very low pressure, but with a high stack temperature .

What is Draft loss in boiler?

[′draft ‚lȯs] (mechanical engineering) A decrease in the static pressure of a gas in a furnace or boiler due to flow resistance.

How do I calculate the heat rate of my boiler?

Divide this heat gain by the length of time for which the boiler runs, measured in second. For example, if the boiler runs for 1,800 seconds, dividing 12,558,000 by 1,800 gives 6,977, or a little under 7,000. This is the heat input rate, measured in joules per second, or Watts.

What is the difference between thermal efficiency and combustion efficiency?

The biggest difference between combustion efficiency and thermal efficiency is that thermal efficiency accounts for the heat lost through the boiler jacket during boiler firing.

What factors affect boiler efficiency?

Some of the factors that affect the efficiency of the boiler is a superheater pressure, water feed temperature, steam temperature, the amount of steam produced, the amount of fuel consumption and calorific value fuel combustion.

What is bypass factor?

Bypass Factor is part of the total air through the coil which fails to come into contact with the surface of the cooling coil. Apparatus Dew Point (ADP) is the effective surface temperature of the cooling coil.

What is difference between heat and latent heat?

Sensible heat is the heat that causes an object to change temperature. … When the temperature of an object falls, the heat removed is called ‘sensible heat’. Latent heat is the heat the heat added to an object in order for it to change state.

What is L in latent heat?

A specific latent heat (L) expresses the amount of energy in the form of heat (Q) required to completely effect a phase change of a unit of mass (m), usually 1kg, of a substance as an intensive property: Intensive properties are material characteristics and are not dependent on the size or extent of the sample.

What is stack temperature in boiler?

“Stack temperature” or flue gas temperature measures the temperature of the combustion gases when they leave the boiler. If the flue gas temperature is high, it suggests the heat created by the boiler isn’t being effectively used to generate steam. … These methods are designed to recover heat for the boiler system.

Why high water level is not good for boilers?

The dangers of an excessively high water level in a steam boiler include: Increased carryover of water into the steam will result in poor operation and/or malfunction of the steam system components, due to dirt. Wet and dirty steam can contaminate or spoil the product where it is used directly. … Poor product quality.

What causes high stack temperature in a boiler?

The most common cause of high stack temperatures is running with too much excess air. … If the excess oxygen is above the specified target, then steps should be taken to reduce the air coming through the burners. The culprit, in the air, that causes the problem is nitrogen.

What chemicals are used in boilers?

The most common alkaline solutions for boiler water include sodium hydroxide and potassium hydroxide. You can typically purchase these products with a 25 percent concentration or a 50 percent concentration.

What should the conductivity of boiler water be?

When you’re looking to measure the conductivity of your boiler water, it’s important that you keep the conductivity of the water at a certain level. If you want to prevent corrosion in your boiler, the water should have a conductivity reading that’s below 3,000 PPM, which equates to 6,000 µS/cm.

Which type of water is used in boiler?

The boiler receives the feed water, which consists of varying proportion of recovered condensed water (return water) and fresh water, which has been purified in varying degrees (make up water). The make-up water is usually natural water either in its raw state, or treated by some process before use.
