It’s used primarily for spreading material like soil or gravel, and for grading, leveling, or backfilling an expansive area of land for a driveway, lawn, garden, building site, etc. Scarifiers are angled metal teeth, mounted in a row on a crossbeam across the upper width of the box blade.

Can you use a box blade to level ground?

To adjust the scarifiers, lock them into position, then angle the box blade forward. With the box blade facing a forward angle, the scarifiers will be able to break up any bumps in the ground. This will make leveling out your surface and smoothing the soil much easier.

Which is better box blade or land plane?

If you are smoothing out a gravel road, go with the land plane. But if you are looking to move dirt or another material from one point to another, opt for the box blade, which can carry more material than the land plane, which means making fewer trips.

Which is better box blade or blade?

The box blade is designed to grade and smooth. Also, it has scarifier teeth on the front, which allow you to break up hard ground, like rutted, hard driveways. … The rear-angled blade is better for softer, lighter materials. Will cut a little bit, but not as much as the box blade will.

How do box blades work?

Used for shaping soil, a box blade is a 3-sided rectangular metal device that attaches to your tractor. It has front and rear scraping blades on the bottom of the rear panel, and it breaks up and shapes the soil with scarifiers.

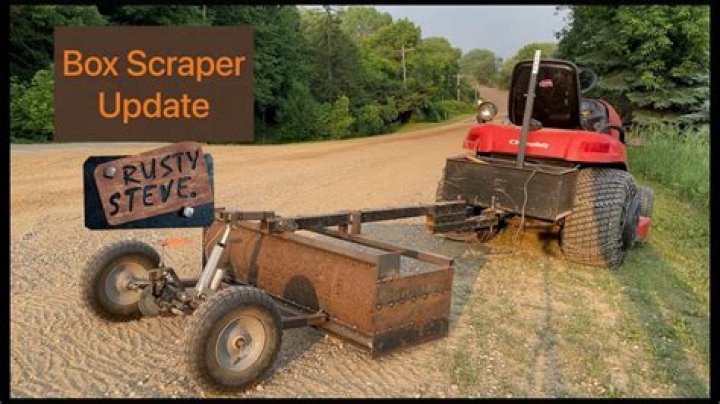

Are Box Scrapers worth it?

Advantages: Moving Material: The high box design of the box scraper makes it a great tool for moving dirt, gravel or other material over distances.

Does a 3 point hitch float?

A 3 point hitch is always in a “float” mode it does not have any down pressure. Depending on your tractor it may have position control, were the downward travel is controlled by the 3 point lever, the futher it is moved the lower the lift arms will drop.

Should you crown a gravel driveway?

Gravel roads will require a crown to prevent potholes from forming. … A flat road will allow water to rest on the surface, and will quickly form potholes. The gravel road should be resurfaced to form a crown once a year to prevent potholes and erosion.

What does a box blade look like?

A box blade for a tractor looks like a 3-sided metal box and includes front and rear scraping blades that are located on the bottom of the rear panel. Box blades for tractors use scarifiers (angled metal teeth) to dig into the ground and break up the dirt or soil so it can be shaped to match the operator’s preference.

How do you crown a driveway?

To crown a driveway means to create a high point that runs lengthwise along the center of the road. Either side of this high point is sloped gently away from the center toward the outer edge of the road.

Article first time published on

What is a box blade attachment?

Box blades are one the most universally useful 3-point tractor attachments available. Box blade attachments are used for leveling ground, ripping dirt, repairing or maintaining gravel driveways, moving dirt, or digging a ditch. They’re easy to hook up to a tractor and easy to learn how to use, too.

What is a land grader used for?

Designed for turning, mixing, shifting, and leveling dirt and/or gravel, the Land Grader has two forward-cutting blades mounted on a sturdy, high grade steel frame with runners and side pans.

Can a box blade spread gravel?

A box blade (tractor-drawn) with scarifier teeth- this is one of the best implements for gravel driveway leveling/filling jobs. … Your utility tractor (or an ATV).

How do you break up compacted gravel?

Make several swings to loosen the gravel. Scoop up gravel with a square-tipped shovel and transfer it into a wheelbarrow to remove it from the driveway. Push the shovel as deep into the gravel as possible by stepping on it with your foot; this helps dislodge more gravel for the next scoop.

How do you make dirt smooth?

1. Remove any plants from the area to be leveled. …
2. Remove soil from the high points of the yard and spread it in holes and low-lying areas. …
3. Smooth out all areas of disturbed soil with a hard metal rake to create the final grade.

How much does a 6ft box blade weigh?

Weight: 463 lbs.

Do you use draft control when bush hogging?

The position control moved the arms to a set location and would keep them there. That was good for bush hogging, cultivating, spraying, anything where you wanted an implement kept a certain height above ground. The “draft” control would respond to changes in how hard the tractor was pulling against the implement.

What is the difference between draft control and position control?

Position control :This will control the working depth of 3-point hitch mounted implement regardless of the amount of pull required. Draft control: This will control the pull of the 3-point implement.

Can you use a box blade for snow?

A versatile tool that allows you to do more than just move snow and ice. … The blade is smooth, and rib-free to prevent snow from sticking to the surface of the blade; plus, the curved blade quickly rolls the snow into a massive heap so you can clean up larger areas in fewer passes.
