Diamond plate used for catwalks or stairs usually has a thickness between 11 gauge (. 1196 inches) and 3/8 (. 375) inches.

How thick is diamond plate?

ThicknessWeight per sq foot14 ga (.0747″)3.75#12 ga (.1046″)5.25#1/8 (.125″)6.16#3/16 (.1875″)8.71#

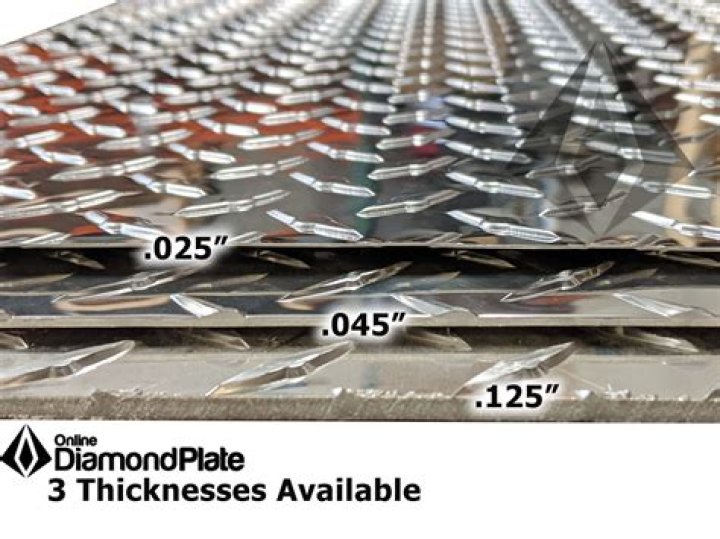

What thickness does aluminum diamond plate come in?

Thickness In InchesSize in InchesWeight per Sq. Ft. in Lbs.1/860 x 1921.93/1648 x 1922.83/1660 x 1922.81/448 x 1923.7

What gauge is diamond plate steel?

This Weldable Steel Tread Plate 12″ x 24″ – 14 Gauge is manufactured with low carbon steel. It’s plain finish makes it ideal for welding applications. It is also excellent for drilling, machining, sawing, punching and forming.

Is Diamond Plate Real Diamond?

Unsourced material may be challenged and removed. Diamond plate, also known as checker plate and tread plate, is a type of metal stock with a regular pattern of raised diamonds or lines on one side, with the reverse side being featureless. Diamond plate is usually steel, stainless steel or aluminum.

What thickness is 11 gauge?

Number of gaugeApproximate thickness in fractions of an inchWeight per square foot in kilograms95/322.835109/642.552111/82.268127/641.984

How much does a 4x8 aluminum plate diamond weigh?

Item #ThicknessWeight per SheetADP 1/8-48 x 960.125 in64.00 lbADP 1/8-48 x 1920.125 in128.00 lbADP 1/8-60 x 1920.125 in160.00 lbADP 3/16-48 x 960.188 in96.00 lb

Is diamond plate stronger?

Because the tread plate is work hardened by forming with high pressure it is “stronger” than the identical alloy that has a soft temper. This means it has higher tensile strength, surface hardness and fracture toughness due to the combination of work hardening and heat treatment.

What type of steel is diamond plate?

Carbon steel is used make diamond plate for several of reasons. Its strength makes it good for use in structural applications. Diamond plated steel is often less expensive than other materials such as aluminum and stainless steel.

How much does a sheet of diamond plate weight?

Item #ThicknessWeight per Square Ft.DP 1/81/8″6.16 lbDP 3/163/16″8.70 lbDP 1/41/4″11.25 lbDP 5/165/16″13.80 lb

Article first time published on

Can you bend diamond plate aluminum?

Although aluminum diamond plate is a soft metal, problems arise when attempting to bend the thick aluminum. The stress of bending the diamond plate causes cracks to form at the bend location. Softening the aluminum at the bend location will eliminate cracking and increase the tightness of the bend.

Is diamond plate flexible?

Cosmetic grade diamond plate is a thin aluminum sheet that has the button embossed into the metal. Embossed cosmetic diamond plate sheets are a light weight, flexible alternative to heavier and more rigid diamond plate products.

What kind of aluminum is diamond plate aluminum?

Aluminum 3003 and 6061 are extremely popular alloys to use for diamond plate production. Since both alloys possess excellent strength, corrosion resistance, and workability, they are used wherever diamond plate applications are required.

Is diamond plate fire proof?

Diamond Plate Steel Is A Smart Choice It provides tremendous skid resistance, providing a safer working environment. It is made of open hearth steel it also has the advantage of being completely fireproof.

Is diamond plate slippery?

Diamond plate flooring, when compromised, is slippery. It does not provide the traction necessary to keep people on their feet.

Is diamond plate aluminum strong?

Aluminum Treadplate is commonly known as ”Diamondplate”. It is strong, lightweight and is used to provide protection and traction on high traffic areas.

Does aluminum diamond plate rust?

Diamond plate is made from hot-rolled aluminum sheets and comes in a range of thicknesses. Aluminum doesn’t rust like steel, and the sheets are remarkably resilient to wear. That means you don’t have to worry about dirt and damaging it.

Can you weld steel to aluminum?

You can weld aluminum to most other metals relatively easily via adhesive bonding or mechanical fastening. … When metals such as steel, copper, magnesium, or titanium are directly arc welded to aluminum, very brittle intermetallic compounds start to form.

How much does a 4x8 sheet of 3/16 weigh?

Nominal Size Thickness (inches)Weight (lb/ft2)3/167.651/410.25/1612.83/815.3

What is the difference between 12 gauge and 14 gauge steel?

In the gauge system the higher the number the thinner the steel. As an example, 12 gauge steel is thicker and stronger than 14 gauge steel. … The 14-gauge steel is the industry standard of frame thickness and the most nationally accepted gauge for carport and metal structures.

How many mm is 19 gauge?

Gauge NoInchMetric170.056″1.4mm180.048″1.2mm190.040″1.0mm200.036″0.9mm

How strong is 16 gauge steel?

A36 mild carbon steel alloy. Common structural steel in U.S.A. Minimum yield of 36,000 PSI (250 MPa) and ultimate tensile strength of 58,000 to 80,000 PSI (400-550 MPa).

Is diamond plate steel galvanized?

Galvanized Steel Supply, Hot Rolled & Cold Rolled Steel Sheets Supplier.

Why is it called diamond plate?

Diamond plate, also referred to as checker plate or tread plate, is a type of metal typically made from either aluminum or steel. It’s called diamond plate due to the raised, diamond-shaped lines that criss-cross at 90-degree angles.

Why Chequered plate is used?

Chequer plate is used in decorative, architectural applications and shipbuilding – (because it is anti-corrosive and it doesn’t require painting so it is low maintenance). Chequer plate is a very versatile material with many different uses. The plate has good forming, it is easy to drill and has good weldability.

Is checker plate stronger than flat Aluminium?

Chequer plate is no harder, no stronger and no tougher than the same grade of flat sheet….in fact because it is not as regular it may in fact be weaker in some ways.

Is checker plate heavy?

Choose Your Favorable Checker Plate Galvanized steel checker plate with thickness 0.85 mm – 10 mm, width 250 mm – 1900 mm and length 1500 – 5000 mm is hot ordered by customers. … Checker plate is used as a heavy duty flooring surface over existing cement or structures in factories, freezers and more.

How do you paint steel diamond plate?

1. Take the tarnish off. Aluminum will have a bit of tarnish on the top, and this needs to be removed. …
2. Allow it to dry. …
3. Spray paint the diamond plate aluminum. …
4. Let the paint dry. …
5. Add second coat of spray paint.

How much does a 4x8 sheet of 14 gauge steel weigh?

GaugeUS Standard GaugeSheet Steel(inches)Weight (lb/ft2)160.06252.500150.07032.813140.07813.125

How much does a 4x8 sheet of 1/4 steel weigh?

Assuming you mean feet and inches, as in 4×8′ x1/4″, about 327 pounds. Ordinary steel weighs about . 284 pounds per cubic inch.

How much does a 4x8 sheet of 11 gauge weigh?

Ga#Sheet SteelGa (in.)Wgt (lb/ft2)130.08973.750120.10464.375110.11965.000
