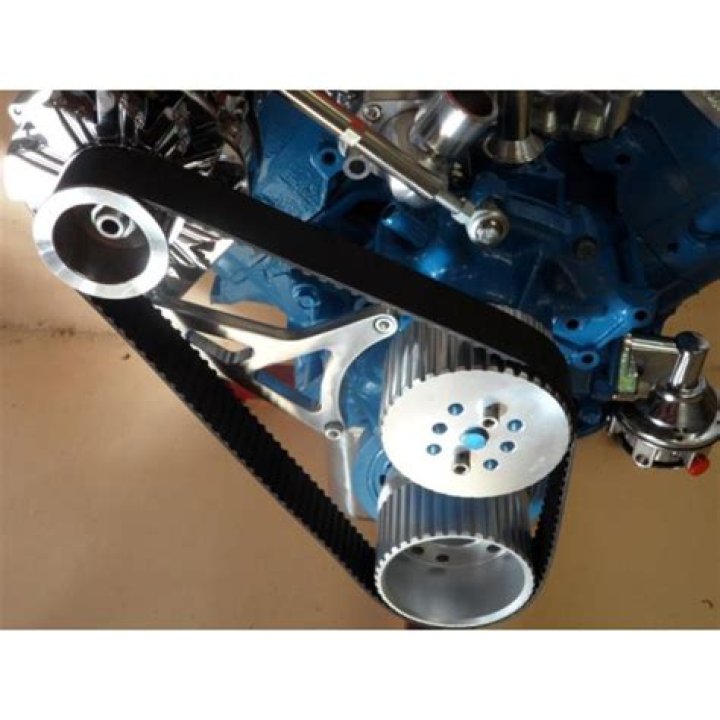

A gilmer belt was a brand or trade name for a mechanical belt used for transferring power between axles in a machine. … Gilmer belts use trapezoidal teeth to engage matching grooves on toothed pulleys in order to maintain synchronicity between moving parts.

What is a Gilmer pulley?

Precision-Machined Pulley Kits Increase Power & Torque For optimal wear resistance and minimal stretching, JEGS Gilmer Drive Belts are manufactured from a synthetic neoprene combination of tough nylon fabric and meshing that resists tooth shear, while reducing tooth jump and friction for an extended life. … wide belt.

What are the two types of belt drive?

• Open belt drive.
• Crossbelt drive.
• Stepped cone pulley or speed cone drive.
• Fast and loose pulleys.
• Jockey pulley drive.

What is the purpose of a belt drive?

belt drive, in machinery, a pair of pulleys attached to usually parallel shafts and connected by an encircling flexible belt (band) that can serve to transmit and modify rotary motion from one shaft to the other.

How tight should a Gilmer belt be?

Gilmer belts (square tooth). Unlike v-belts and serpentine style belts, toothed belts such as HTD and Gilmer’s don’t need to be overly tight. … The rule of thumb to check belt tension is you should be able to grab the belt in the center between the two pulleys and turn it 90 degrees so the teeth are facing you.

What are the 3 drive belts?

Those mechanical parts and the car belts that help them function are the alternator, water pup, and steering pump. A simple way that the purpose of car belts explained is they distribute power between the different engine components by creating friction between the belt and pulley.

Why would you use a belt drive instead of a chain drive?

Unlike chain drive, which requires very frequent cleaning, tightening and maintenance, belt drives are relative maintenance free. … Belt drive systems also run much smoother, with much less jerks as compared to chain drives, and produce incomparably less noise too.

What are the disadvantages of belt drive?

• Limited Speed range.
• They are not compact.
• Considerable power loss.
• Short service life compared to other mode power transmission.
• The velocity ratio may vary due to belt slip.
• They inflict a heavy load on shafts and bearings.

Which belt drive is a positive drive?

Timing Belt has projections all around the inner surface of the belt, so as to restrict the slipping between the belt and the pulley therefore it is a positive drive.

Why do V belts fail?

Missing cogs can cause belts to slip and fail, when it is discovered there are teeth missing, the belt should be changed immediately. The most common reasons your belt could be missing a cog are excessive heat, the pulleys are too small or misaligned. It can also be caused by improper or prolonged storage of belts.

Article first time published on

Are belt drive bikes worth it?

Belt drives are superior to chain drives in many aspects. They are easier to clean and maintain, last longer, and are quieter and smoother as well. However, they are also more expensive, which raises the overall price of the bikes who have them integrated.

Are belt drive bikes any good?

Belt-drive bikes are worthwhile if you don’t mind paying extra to minimize maintenance. They may last 20,000 miles or more (about 10x longer than a chain), and don’t use any grease. However, they require an internally-geared hub and are less mechanically efficient than a chain drive.

What's better chain or belt drive?

Belt-drive garage door openers are generally more expensive than chain-drive systems. But with a belt-drive system, you get a smoother, quieter, and more durable operation. Many homeowners find that the extra expense is worth it, provided that the belt-drive system is able to lift the door.

What are the types of belts?

• Round belts. Round belts are generally made of rubber.
• V belts. V belts are arguably the most widely used belts in the industry.
• Flat belts. Flat belts are also used to transmit power from one shaft to another.
• Timing/toothed belts.

How often should you replace your drive belt?

A good rule of thumb is to replace your V-Belt every 30,000 miles, while your serpentine belt and timing belt should be replaced every 50,000, although these numbers vary depending on the make and model of your car.

Is the drive belt the same as Cambelt?

A drive belt connects to accessory components like your car’s AC, alternator, water pump and power steering pump. A timing belt connects the crankshaft to the camshaft(s) and in some cases, the water pump.

What does a squeaky belt mean?

Your engine belts make a screech or squeal noise usually because the rubber belt is slipping on the metal pulley and just like your tires spinning on the road, this causes noise. The belt may be slipping due to improper tension or because it simply has gotten old and the surface has become glazed, cracked or brittle.

What's another name for a positive drive belt?

Synchronous belts (also called cogged, timing, positive-drive, or high-torque drive belts) are toothed and require the installation of mating grooved sprockets. These belts operate with a consistent efficiency of 98% and maintain their efficiency over a wide load range.

Is belt drive positive or negative?

In belt drive, driver and driven shafts are connected by intermediate flexible element (belt). It is a positive drive; so velocity ratio remains constant. It is non-positive drive as slip and creep occur frequently.

What are the advantages of gear drive over belt drive?

Gear driveBelt driveRequires less space compared to belt drive.Requires more space compared to gear drive.Low friction loss compared to belt drive, therefore higher transmission and more efficiency.High friction loss compared to gear drive, therefore lower transmission and less efficiency.

Do Belt drives have backlash?

Backlash: Backlash in a synchronous belt drive results from clearance between the belt teeth and the pulley grooves. This clearance is needed to allow the belt teeth to enter and exit the grooves smoothly with a minimum of interference. The amount of clearance necessary depends upon the belt tooth profile.

What does 4L belt mean?

4L Belt = The Outside Circumference (OC) – Minus 2 Inches. ( Example 4L320 = 30 Inch Inside Circumference) 5L Belt = The Outside Circumference (OC) – Minus 3 Inches. (

Is there any worry for overloading conditions in flexible belt drives?

Is there any worry for overloading conditions in flexible belt drives? Explanation: In case of overloading, belt slips over the pulley and hence protect it from the overload.

Can you over tighten an alternator belt?

Dear Anthony: A belt should never be over-tightened. … An over-tightened belt can burn out any bearing that the belt rotates on, including alternator, power steering pump, A/C compressor, idler pulleys, etc. An over-tightened timing belt can ruin any pulley bearing it is connected with.

How do I know if my V belt is worn out?

A correctly fitting V belt should slightly extend out of the pulley groove. If it extends out too high the belt may wear below the cord member. When a V belt rides below the edge of the groove this is usually a sign of a worn belt, worn pulley, or an incorrectly sized belt.

What causes V belt vibration?

Multiple V belts with unequal tensions also cause a high axial vibration. Sometimes the rigidity of the support system prevents it from being measured or seen, but pulley/sheave misalignment very often causes excessive thrust bearing wear. Replacing with belts of equal tension will usually cure the problem.

Are belt drive bikes slower?

Belts are less efficient at low power inputs– If you’re just cycling casually, you’ll burn more energy while riding a belt drive bike vs a chain drive. Belt drives may cause the bottom bracket and rear hub to wear out faster- This happens because belts run at a much higher tension than chains.

How do belt drive bikes shift?

Belt drive bikes operate in the same way as a typical chain – the crank drives the belt and turns the rear wheel. Though, belts can’t shift between cogs like a chain can, so they need an internal hub gearing system in that regard.

Is chain or belt better for bike?

Summary. This lab test has determined that chains are between 0.3% and 1.0% more efficient at low power outputs (under 212 watts), while belts are more efficient at high power outputs (over 212 watts). Things get a bit more muddied for the chain when we factor in different chain lubricant options.

How long does a Gates belt drive last?

Belt drive combined with a Pinion gearbox on a Hilite bicycle. You can expect a regularly cleaned belt drivetrain to last upwards of 30,000km/19,000mi. Additionally, belts will not rust if they get wet regularly (or are subject to salt near the beach).

How long does a bike belt last?

But even veteran enthusiasts can make the mistake of forgetting to look after their bike’s drive belt, which is strong, stretch-resistant and made from tensile cords. Because a drive belt can last up to 100,000 miles before needing replacement, riders may lose track of this important part of motorcycle maintenance.
