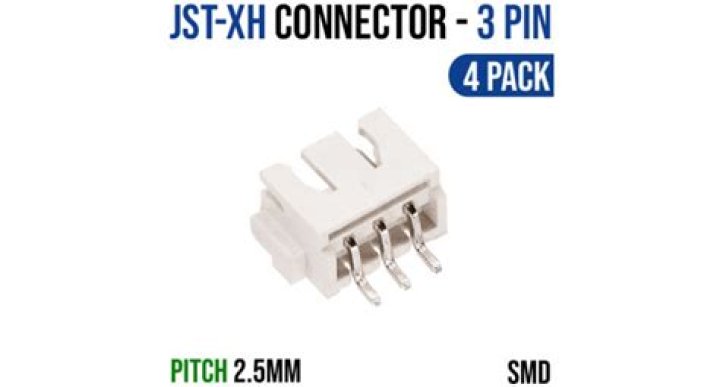

The JST XH series’ disconnectable, 2.5 mm (0.984”) pitch, crimp-style connector was developed based on the high reliability and versatility of their NH series connectors. … These wire-to-board connectors are typically used to bring power to a PC board. XH series connectors are available with one to twenty positions.

How do I know what JST connectors I have?

JST connectors are mostly identified by the length between one contanct to the centre of another contact. There are always between two to higher contacts in a single line. Some families have multiple rows as well. This length is the pitch of the connector type and determines the family that the connector is a part off.

What is a JST SH connector?

Description. JST-SH is a 1.0 mm pitch/ disconnectable crimp style connector used on several of the OpenPilot boards. It is used for it small size and reliable connection.

What are the different types of JST connectors?

• ZH (1.5mm pitch)
• PH (2.0mm pitch)
• XH (2.5mm pitch)
• PA/XA (2.0mm / 2.5mm pitch)
• EH (2.5mm pitch)
• RCY (2.5mm pitch)
• SH/SR (1.0mm pitch)
• SHD (1.0mm pitch)

What is the difference between JST XH and Xhp?

Which is the difference between 2.54mm jst-xhp and 2.54mm jst-xh? Answer: JST XHP are specifically the plugs in the JST XH series.

How many amps can a JST connector handle?

JST connectors carry low currents (5 amps) and are most commonly found in on-board electrics such as servos, gyros, receivers and receiver switches.

Is socket male or female?

The terms plug, pin, and prong are also often used for “male” connectors, and receptacle, socket, and slot are used for “female” connectors.

What is JST SM?

The SM series are 2.5mm (.098″) pitch, wire-to-wire connectors that perform. reliably in high-density, small current applications. High contact pressure.

How do I identify a Molex connector?

The Molex connector is one where the male/female terminology is a bit odd. The female connector is usually found on the end of a cable, and it slips inside of a plastic shell which surrounds the male pins on the male connector.

What is a JR connector?

This JR connector has a 0.1″ pin spacing and is commonly used on RC servos. Two corners are slightly beveled, which makes it difficult (but not impossible) to incorrectly plug the connector into the corresponding male JR connector. This connector is also compatible with male Futaba J connectors.

Article first time published on

What is pin pitch?

The nominal center-to-center distance between adjacent pins or terminals along the side of an integrated circuit package.

What is connector pitch?

The pitch of a connector refers to the distance between the pins on a connector. If you don’t have a datasheet or a known part number for a connector, determining the pitch of the connector can be difficult, especially if the distance between the pins (pitch) is very small (often the case).

How do you crimp 1mm JST?

1. Close up the sleeve gripper for the wire’s sleeve. …
2. Insert the wire into the pin. …
3. Crimp the sleeve gripper first. …
4. After crimping, ensure that the width of the pin is less than 0.88mm. …
5. After the wire is crimped to the pin, pull the wire to ensure that the crimp is tight.

What is JST military?

The Joint Services Transcript is a collaborative program that replaces previous transcript programs. The JST describes your military schooling and work history in civilian terms, as a standard form, making it easier for colleges to read and recommend credits.

What are the different types of connectors?

• Rectangular Connectors.
• Circular Connectors.
• Terminal Blocks.
• Coaxial Connectors (RF)
• D-Sub, D-Shaped Connectors.
• Barrel Audio/Power Connectors.
• Pluggable Connectors.
• USB, DVI, HDMI Connectors.

What are the 3 types of connectors?

Electrical connectors are classified into three types based on their termination ends: board-to-board connectors, cable/wire-to-cable/wire connectors, and cable/wire-to-board connectors.

How do you make a JST file?

The process of making JST Connectors can ultimately be broken down in to 3 simple steps… strip, crimp and connect. We prepare the wiring, crimp on a terminal and insert it into the plug. When using the correct tools, it will take about 30 seconds per wire and most 3D Printer connectors are either 2 or 3 pins.

Why is it called a female adapter?

Why is the serial port called a male connector and a parallel port a female connector? It is a blatantly sexual reference. If the pins penetrate, it’s male. If the holes accept pins, it’s female.

Why do connectors have genders?

For electronics components, gender is used to distinguish “mating connectors.” Mating interconnects match together in size, configuration and number of pins. In case you didn’t know, a “male” connector usually has a pin or pins “sticking out” and the “female” connector is designed to receive those pins.

What does a male connector look like?

A male connector is commonly referred to as a plug and has a solid pin for a center conductor. A female connector is commonly referred to as a jack and has a center conductor with a hole in it to accept the male pin.

What connectors do LiPo batteries use?

Battery Connector Molex 51021-0200 The most popular battery connector for LiPo batteries.

Is IC3 and EC3 the same?

The IC3 is backwards compatible with the legacy EC3 connector but you lose the “smart” properties of the battery. Since the HOBBYMATE has standard XT60 connectors, you would need an IC3 male to EC3 female adapter and then an EC3 male to XT60 female adapter.

What's the difference between IC3 and IC5?

You have a 100 amp ESC and the IC3/EC3 connectors are only rated for 60 amp continuous current. The IC5/EC5 connectors are rated for 120 amps, which is why Arrma uses them on the 3s BLX 4×4 rigs with a 100 amp ESC.

What does a Berg connector do?

The 2-pin Berg connector is used in connections for turbo switches, front panel lights, jumpers for motherboard configuration and reset button to the motherboard of the computer. Like most connectors, Berg connectors were also keyed in order to avoid improper connections or incorrect mating.

Is Molex still used?

Production historyMale pins (female connector)PinColorTypePin 1Yellow+12 VPin 2BlackGround

Is LP4 a Molex?

C2G’s 4-pin Molex (LP4) Male to Two 4-pin Molex (LP4) Female Internal Power Cable (6″) allows you to attach additional floppy drives, removable storage drives, hard drives, CD-ROMs, CD-RWs, tape drives, fans, and more to your computer’s power supply.

What are XT60 connectors?

These connectors are made from high-temp nylon with gold-plated spring pins or sockets molded in. The shape of this generic XT60 prevents reverse polarity, and when plugged in the connection is super-solid. Perfect for applications up to 65A continuous draw. Sold in pairs of 1 male and 1 female connector.

What is wire-to-wire connector?

Wire-to-wire connectors are used to connect two wire-terminated connectors. They are used as electrical connectors, electronic connectors, and computer connectors. General specifications for a wire-to-wire connector include mating combination or gender, number of circuits or positions, and wire size.
