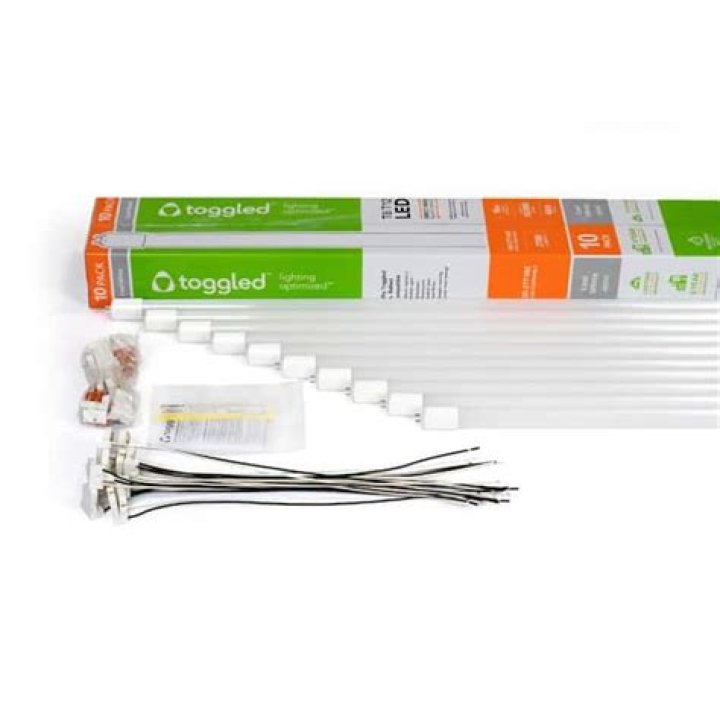

TOGGLED LED tubes are designed to replace T8 and T12 fluorescent tubes. … In addition, TOGGLED LED lights eliminate ballast systems, reduce facility lighting costs, enhance the quality of light and are mercury free. Installation requires basic re-wiring around ballast systems to non-shunted lamp holders.

What does toggled mean in LED light?

TOGGLED LED tubes are designed to replace T8 and T12 fluorescent tubes. … In addition, TOGGLED LED lights eliminate ballast systems, reduce facility lighting costs, enhance the quality of light and are mercury free. Installation requires basic re-wiring around ballast systems to non-shunted lamp holders.

What are the 3 types of LED light bulbs?

• Advantages of switching to LED lights for Office. …
• 1) LED bulbs. …
• 2) LED panel lights. …
• 3) LED tube lights. …
• a) Warm White. …
• b) Cool White. …
• c) Cool Daylight.

What does toggled bulb mean?

Save Energy, Save Money Save 40-70% on lighting energy costs over traditional fluorescent systems. toggled lighting by-passes fluorescent ballast systems, providing a second layer of customer savings by eliminating the expense of new ballasts and the cost of installing them.

What is T8 vs T12?

The main difference between T8 and T12 tubes is the tube’s diameter. T12 tubes are 1.5″ in diameter while T8s are just one inch. All other things—socket sizes, lengths, distance between pins—are the same. T8 LED tubes won’t fall out if you try to install them in a T12 fixture—they’ll fit just fine.

How do you bypass a double ballast LED?

1. Step 1: Disconnect All Power So There is No Electrical Current. …
2. Step 2: Find the Ballast. …
3. Step 3: Locate and Cut Only the Hot and Neutral Wires. …
4. Step 4: Cut the Socket Lead Wires. …
5. Step 5: Remove the Ballast (if you wish) …
6. Step 6: Connect the Wires. …
7. Step 7: Reattach Any Coverings and Turn On.

Can I bypass the ballast for LED lights?

Since LED lights work on low DC voltage, they need a driver. Most T8 LED tubes do not need a ballast. So, if you are going to install a T8 LED tube light, it will require a ballast bypass unless you choose a ballast compatible T8 LED tube.

What does 5050 LED strip mean?

Simply put, these LED chips are called SMD 5050 because the dimensions of the chips are 5.0mm x 5.0mm. They have 3 LED diodes in one housing (sometimes called tri-chips), and are a lot brighter than individual 3528 LED chips.

Which watt LED bulb is best for home?

• Syska SSK-SRL Base B22 9-Watt LED Bulb. …
• Wipro Polycarbonate Tejas Base B22 9-Watt Led Bulb. …
• Philips Base B22 9-Watt LED Bulb. …
• Havells 9-Watts B22 LED Cool Day Light Lamp. …
• Halonix B22 10-Watt Led ASTRON Plus. …
• Murphy 9-Watts B22 LED Warm White Bulb.

What LED wattage for bedroom?

The best light bulb for a bedroom is one that sends out around 800 lumens. This is the same as an older lightbulb (incandescent, not LED) of 60 watts. At 800 lumens, the light will be bright enough to read by but won’t be so bright that it makes you too alert that you’ll have a hard time falling asleep.

Article first time published on

What happens when you put a T8 bulb in a T12 fixture?

If you place T12 tubes in a fixture with a T8 ballast, you will wear out the ballast and have to replace it. If you place T8 tubes in a fixture with a T12 ballast, then the tubes will have a shorter life due to a higher current through the tube.

Can I use T8 fluorescent bulbs in a T12 fixture?

T8 tubes are simply 1 inch in diameter versus the 1.5 inch diameter of T12 tubes. In an effort to make LED tube lights compatible with the internal dimensions of most fixtures, you will find that most LED tube lights feature a T8 or 1 inch diameter. They can indeed be used in T12 fixtures.

Can I replace T8 with LED?

Type A – LED tube has an Integrated Driver for use on Existing Fluorescent Ballast. Type A LED tubes need an existing T8 electronic ballast to operate. … All you need to do is remove the existing T8 fluorescent lamp and install a new T8 LED Type A lamp.

What is T8 LED tube light?

T8 LED Tube Lights Overview T8 LED tube lights are interior LEDs used to replace T8 Fluorescent lamps. … LED tube lights offer options that can use the existing fluorescent ballast or other options that can bypass the ballast completely. A ballast regulates the flow energy to the fluorescent lamp.

Can I use LED tube lights in a fluorescent fixture?

Many LED tubes are “plug and play”, meaning you can just install them like you would a fluorescent bulb. For this to be true, look for bulbs that are “ballast-compatible” meaning that they can use the ballast already installed in your fluorescent fixture to power the LEDs.

What is a direct wire LED tube?

Direct-wire LED tubes are installed without a ballast and instead requires a direct connection to line voltage. … Cut the wires leading to the ballast. Remove the ballast. Install new lampholders (tombstones) that create a direct connection to the line voltage.

Can you replace 8 foot fluorescent bulb with LED?

There is a wide variety of methods for converting to LED tubes. The simplest is to completely replace old fluorescent fixtures with brand-new LED fixtures. However, LED fixtures to replace four-bulb (8-foot-long) fluorescent fixtures (common in farm buildings) can set you back $100 or more per unit.

How do I know if my light has a ballast?

You can determine whether you have a compatible fixture in seconds. Simply turn the light on, then take a photo of the fixture using your smartphone or digital camera. If there are no dark bands on the resulting image, you have an electronic ballast that will work with direct drop-in LED tubes.

Do LED T8 need ballast?

Most T8 LED bulbs do not need a ballast. The only type of LED tube that requires a ballast is plug-and-play. Used as direct replacements for fluorescent tubes, plug-and-play LED tube lights install without fixture rewiring, and operate off the existing fluorescent ballast.

How do I know if my LED tube is single or double ended?

A simple way to know if you have a single ended tube is to look for the L/N or AC INPUT sticker at the end of the tube. Since the single-end powered tubes only use one side of the tube, both live and neutral power will be on the same side, but different pins. The “L” indicates the pin that live power will go into.

Can I replace fluorescent tubes with LED tubes UK?

So to summarise with an LED tube you simply need to connect the mains live to one and and the mains neutral to the other and it will then operate. This is much simpler than with the old style fluorescent tubes and in time the lighting fixture suppliers will provide holders which work directly with LED tubes.

What is the difference between shunted and non shunted tombstones?

Shunted sockets feature internally connected electrical contacts. This provides a single track for the electrical current to travel from the ballast, through the tombstone, or socket, and to the lamp’s pins. … Non-shunted sockets have contacts that are not joined or connected.

What does ballast-compatible mean?

Ballast-compatible or plug-and-play LED tube lamps directly replaces fluorescent tube lamps without the need of changing any circuit on the lighting fixture. … The ballast-compatible LED tubes work only with selected types of ballasts.

Will ballast compatible LED tubes work without a ballast?

If the LED tube is not compatible with your ballast, you would then need to replace your ballast in addition to the T8 LED tube. … The T8 LED tube won’t work without the ballast, so you are forced to continue buying and replacing ballasts as long as you have an LED tube that is ONLY ballast dependent.

Do LED Fluorescent bulbs need a ballast?

No LED bulbs require a ballast, although some are engineered to work with an existing ballast. You will find ballast-compatible or “plug-and-play” LEDs that are designed to replace linear fluorescents, compact fluorescents, or HIDs.

What are the yellow wires on a ballast?

Originally Answered: What are the two yellow wire from a ballast for? The yellow wires are your commons/return paths on the output side. The yellow wires are your commons/return paths on the output side.

WHAT LED bulb equals 60 watts?

As a general benchmark, an 800 lumen LED bulb produces the same amount of light as a traditional incandescent 60-Watt light bulb.

Which LED light is best for eyes?

Soft white LED bulbs still give off a bright cast. Soft white is a better option because it isn’t as glaring, although there are warm hues, as well. Regardless of the shade, LED bulbs are among the safest lights for your eyes. They rank highest in energy efficiency, too.

Which LED bulb gives more light?

So, a 30 watts LED if compared to a 30 watts incandescent bulb will give you far more light or brightness, in fact, a 60-watt LED may just blind you with its light. Hence, we use lumens as an indicator of brightness in LEDs.

Which is brighter LED 5050 or 5630?

Are 5630 LEDs brighter than 5050 and 3528 LEDs? What is the brightest LED type? Yes, as you can see by the table above, 5630 LEDs are by far the brightest, but it is not due simply to a larger lighting surface.

Which is brightest LED strip?

SMD (Surface Mounted) 5730 series is the brightest LED strip because it contains powerful LEDs that can create a lot of light.
