Copper tube for air-conditioning and refrigeration field service (ACR) is designated by actual outside diameter. “Temper” describes the strength and hardness of the tube. In the piping trades, drawn temper tube is often referred to as “hard” tube and annealed as “soft” tube.

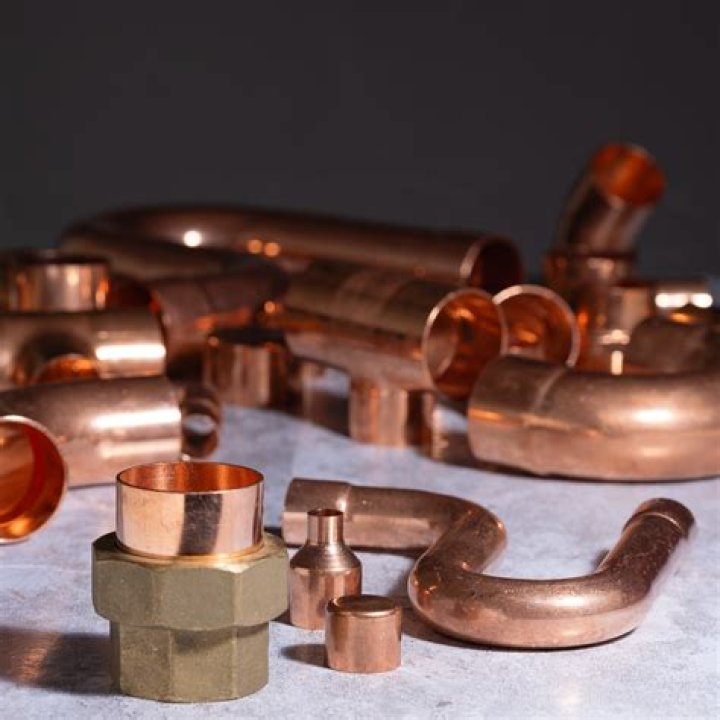

What does ACR mean on copper fittings?

The North American refrigeration industry uses copper pipe designated ACR (air conditioning and refrigeration field services) pipe and tubing, which is sized directly by its outside diameter (OD) and a typed letter indicating wall thickness.

What is ACR hard drawn copper?

ACR (Air Conditioning and Refrigeration) tubing is charged with nitrogen and sealed. Same as L thickness, it comes in both hard drawn tubing and “soft” rolls of 50′ and 100′. Soft tubing is annealed (heated and then allowed to cool) to make it flexible and easy to bend and flare.

What is Type ACR copper pipe used for?

Type ACR, Coiled, Copper Tubing Air Conditioning and Refrigeration Copper Coils easily connect air conditioning and refrigeration equipment, using sweating or flare fittings.

What color is ACR?

As permitted in the ASTM B819 standard, type L OXY/ACR, ACR/MED straight length tubing is ink marked in blue color with a dual stencil that includes both “ACR and OXY/MED”.

Can you use ACR copper for gas?

GL Plus™ pressurized ACR/Med copper tubing, from Great Lakes Copper Ltd., is available in 10,12, and 20 ft. lengths, and a variety of sizes, both Type L and Type K, is specially cleaned, deburred, purged and pressurized with nitrogen gas, and features easy to remove, installer friendly, form-fitting plugs.

What does WROT mean in plumbing?

Wrought Copper Solder Joint Drainage Fittings DRAIN, WASTE AND VENT APPLICATIONS. Wrought (wrot) copper alloy fittings used for drainage, waste, and vent applications with solder joints are manufactured to the requirements of ANSI/ASME B16.

What is the wall thickness of ACR tubing?

Description: ACR Tubing. Outside Diameter 1-1/8 Inch. Wall Thickness 0.05 Inch.

Is ACR copper ID or OD?

Copper tube for air-conditioning and refrigeration field service (ACR) is designated by actual outside diameter.

Can you bend ACR copper?

It is possible to physically bend drawn general purpose (H58) tubing, but the result is not acceptable. Bending H58 is not recommended by the tubing manufactures. Only Soft Anneal (O60) or Light Drawn (H55) should be used when field bending ACR Type L or Type K copper tube.

Article first time published on

Why is ACR tubing capped at both ends?

During the production of the copper tube, the inside of the tube has been cleaned and dried before being sealed at both ends to ensure that it remains that way. You must check to make sure that the refrigerant that is going to be used does not react with the copper.

Why are some ACR tubing lines insulated?

Why are some ACR tubing lines insulated? To keep the refrigerant from absorbing heat and to prevent condensation from forming on the line. … Lever type tube benders may also be used.

What are the 4 types of copper tubing?

• Type K Copper Pipe. Of all copper pipe types, Type K has the thickest walls and is the most durable. …
• Type L Copper Pipe. While not quite as thick as Type K, with a wall thickness of . …
• Type M Copper Pipe. Type M has a wall thickness of . …
• Copper DWV Pipe.

Which type of copper tubing has the same dimensions as Type ACR?

Which type of copper tubing has the same dimensions as ACR? Type L.

What is the difference between plumbing copper and refrigeration copper?

Type L copper pipes are typically used for residential water systems. Copper, used for refrigeration, is designated as ACR copper. Measure the inside and outside diameter of the end of the tube. … Type L copper is typically sold in straight lengths.

What is a common filler material used for brazing?

The standard weight for copper tubing used most frequently in the heating and air conditioning industry is?L – TypeA common filler material used for brazing is composed of50% to 60% silverWhen soldering, a flux is used toMinimize oxidation while the joint is being heated

What is WROT copper fittings?

648 products. Copper tube fittings offer corrosion resistance and antibacterial qualities and are suitable for use in plumbing, heating, or cooling projects. They are lead-free and fire-resistant, making them suitable for applications where durability and safety are desired.

What is the WROT?

noun. mass noun. Timber with one or more surfaces planed smooth. ‘The designer has a choice whether to use sawn or wrot timber for the joists and beams’

What is ASTM B88?

The B88 specification covers seamless copper water tube suitable for general plumbing, similar applications for the conveyance of fluids, and commonly used with solder, flared, or compression-type fittings. … This specification is the imperial companion of Specification B 88M.

Which pipe is best for gas lines?

CSST tubing, or corrugated stainless steel tubing, is good for installing gas appliances. These corrugated pipes can bend around corners reducing the number of joints and fittings. Easier to work with than steel pipe and weighs a lot less.

Can you refrigerate copper for gas?

copper is safe for LP, but not recommended for natural gas. due to “concerns over corrosion and flaking of copper tubing, copper is not allowed for use on natural gas work in some localities” (see reference) home depot says “Use M (red)-rated copper for indoor gas distribution”

Can refrigeration copper be used for LP?

In 1999, the International Association of Plumbing & Mechanical Officials (IAPMO) designated that copper tubing and fittings are allowable for gas-distribution systems, including propane.

How thick is ACR copper?

Nominal Size (inches)Annealed (A) or Drawn Temper (D)Wall Thickness (inches)5/8D0.0403/4A0.035A0.042D0.042

What is the outside diameter of 1/4 ACR tubing?

ApplicationAir Conditioning, Refrigeration, Natural Gas, LP Gas, Compressed AirInner Tube Diameter1/4″Length20 ftMaterialCopperOuter Tube Diameter3/8″

What is the difference between K and L copper?

Type K is the heaviest. Type L is medium weight and used most often for water lines in homes. Type M is thinner and is used underground or for light domestic water lines if local codes allow.

In what temper is ACR copper tube available?

ACR Straight Tube is usually supplied in the hard and half hard temper, annealed temper is also available if requested.

What is the outside diameter of 1/2 ACR tubing?

Sub Brand:CerroPure®Nominal Size:1/2 INOutside Diameter:1/2 INInside Diameter:0.43 INLength:20 FT

Is copper pipe pure copper?

Copper pipe is almost pure copper manufactured to the requirements of ASTM B 42 – Standard Specification for Seamless Copper Pipe, Standard Sizes.

Do you need to clean copper before brazing?

Copper needs a good cleaning before soldering / brazing to remove the oxide layer that forms on it. This layer of oxidation prevents the solder or brazing brass from “wetting” – forming a bond with the copper.

What type of copper Cannot be used for bending?

(1) Types M and DWV copper tube shall not be bent. (2) Bends in copper tubing of soft or bending temper shall be made with tools manufactured and sized for the purpose.

What is the advantage of swaging over joining tubing with a fitting?

Swaging tools use pressure to expand or stretch the end of a piece of copper tubing so it can fit over another of the same diameter and make a permanent brazed connection.
