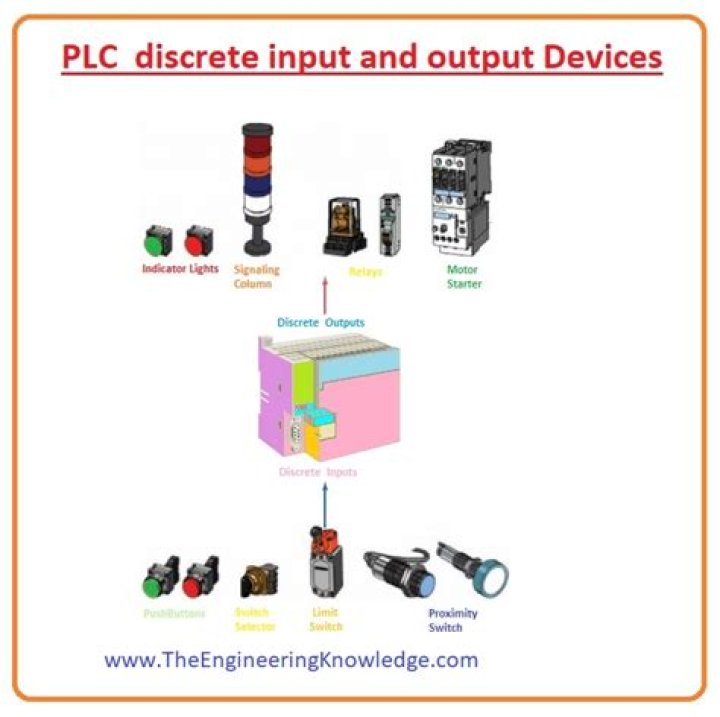

The term PLC inputs refers to the devices and transducers which are entrusted with taking in information about the physical world to the PLC. … Digital Inputs include push-buttons, limit switches, relay contacts, proximity switches, photo sensors (On/Off), pressure switches and more.

What is a PLC output?

PLC Outputs are the control circuits of the PLC and also refers to the devices controlled by the PLC. Be aware when talking about PLCs the devices like motors and lights are also referred to as PLC Outputs.

Which is output device of PLC?

Output Devices – Programmable Logic controllers. The output ports of a PLC are relay or opto isolator with transistor or triac, depending on the devices that are to be switched on or off. Generally, the digital signal from an output channel of a PLC is used to control an actuator, which in turn controls some process.

What is input and output in simple words?

Input and output, or I/O is the communication between an information processing system, such as a computer, and the outside world, possibly a human or another information processing system. Inputs are the signals or data received by the system and outputs are the signals or data sent from it.

What is output module in PLC?

The output module provides a signal to the output device. The singles can be anything like activating or deactivating output devices. And the main function of the programming device is to change or monitor the PLC programming.

What is analog input in PLC?

The Analog Input Module (AIN) is a key subsystem in the PLC. AINs come in many variations to condition real world physical parameters, such as, Temperature, Pressure, Force, or Strain. Typically, these AIN inputs are command signals in both voltage (e.g. ±10V) and current form (e.g. 4-20mA).

What is analogue input?

An analog input converts a voltage level into a digital value that can be stored and processed in a computer. … The voltages can then be easily measured by various kinds of hardware, such as a LabJack U3-HV, and then read into a computer.

What output input means?

Inputs are the signals or data received by the system, and outputs are the signals or data sent from it. The term can also be used as part of an action; to “perform I/O” is to perform an input or output operation.

What is PLC analog output?

PLC-system analog outputs—commonly used to control actuators, valves, and motors in industrial environments—employ standard analog output ranges such as ±5 V, ±10 V, 0 V to 5 V, 0 V to 10 V, 4 to 20 mA, or 0 to 20 mA. … The first uses a dedicated DAC in each channel to generate its analog control voltage or current.

What are input and output operations?

Input/output (I/O), in computing, is a communication process between a computer and the outside world. … Input refers to the signals or instructions sent to the computer. Output refers to the signals sent out from the computer. This term is also known as I/O operations, which references the input and output actions.

Article first time published on

What is the full form of input and output?

Updated on: June 23, 2021. Short for input/output (pronounced “eye-oh”). The term I/O is used to describe any program, operation or device that transfers data to or from a computer and to or from a peripheral device. Every transfer is an output from one device and an input into another.

Is a LED input or output?

LED is commonly used as a simple Digital output device. Usually on Digilent Board, a high voltage will light it up and a low voltage will shut it down.

Why relay is used in PLC?

Relays are used to isolate one voltage level from another. … A relay is used to energize the starter, which, in turn, switches the motor voltage while the PLC controls the relay. Wired to provide a control sequence, relays may also be used for simple control schemes where a PLC would prove uneconomical.

What is a pilot light in PLC?

Pilot Lights are almost always present in PLC automation systems. They are usually placed in the control system to tell the operator, for example, “Hey, you have a DC voltage output at the solenoid valve right now” or “Hey, something is wrong because your temperature level inside the system is too low or too high”.

What is output coil in PLC?

Out Coils. A PLC output is really just an internal relay with a physical connection that can supply electrical power to control an external load. Thus, like a relay, an output can also have unlimited number of contacts that can be used in the ladder program. Timer Coils.

Which is input and output devices?

There are many input devices such as a keyboard, mouse, webcam, microphone and more, which send information to a computer system for processing. An output device, like Monitor, printer and more, displays the result of processing generated by input devices.

How many inputs and outputs are there in PLC?

Programmable logic relays (PLR) These small devices are typically made in a common physical size and shape by several manufacturers and branded by the makers of larger PLCs to fill out their low-end product range. Most of these have 8 to 12 discrete inputs, 4 to 8 discrete outputs, and up to 2 analog inputs.

What are five output devices?

Examples include monitors, printers, speakers, headphones, projectors, GPS devices, sound cards, video cards, optical mark readers, and braille readers. Some of the output devices are Visual Display Units (VDU) i.e. a Monitor, Printer graphic Output devices, Plotters, Speakers etc.

What is a binary output?

A Binary Output (BO) is the software representation of a 2-state (on/off) controlled device. The primary function of a binary output is to command Heating, Ventilation, and Air Conditioning (HVAC) and other equipment to an on or off state.

What is the difference between analog input and output?

Analog signals are variable, they have multiple states. Analog input signals can represent such items as temperature or level or rate of flow. Analog output signals are also variable and can be used for such things as opening a valve to a desired position.

What is scan time in PLC?

Scan Time refers to the amount of Time that CPU takes to execute the Ladder Program, Read Input, Update Output Status and Support Communication. Therefore, the larger the program is, the longer the Scan Time will be.

What is analog and digital input and output?

The Arduino can input and output analog signals as well as digital signals. An analog signal is one that can take on any number of values, unlike a digital signal which has only two values: HIGH and LOW. … The function used to output a PWM signal is analogWrite(pin, value). pin is the pin number used for the PWM output.

Where is DAC used?

DACs are commonly used in music players to convert digital data streams into analog audio signals. They are also used in televisions and mobile phones to convert digital video data into analog video signals.

Is a valve an input or output?

Input Devices, Output Devices, and Operator Interface There are two broad categories of Input Devices. … Contactors, motor starters, valves, and other Output devices are used to turn on/off motors, lights, heating elements, and other equipment that affects the system in some way.

What are the types of PLC?

The two main types of PLC are fixed / compact PLC and modular PLC.

What are input and output variables?

A variable is an input variable if its Input property is Yes. Its value can be input from an external source, such as an Architect call flow. A variable whose Output property is Yes is an output variable. When the script runs, any value assigned to the variable is saved for use outside of the script.

What is the formula for work output?

Work is determined by multiplying force by distance traveled: Work (W) = Force (F)X Distance (d) W=Fd. Write this equation down to use when you want to calculate work input in a pulley or a system of pulleys.

What is the output of a machine?

In physics, work output is the work done by a simple machine, compound machine, or any type of engine model. In common terms, it is the energy output, which for simple machines is always less than the energy input, even though the forces may be drastically different.

What is output operation?

The stream flowing from an input device like a keyboard to the main memory, it is called the Input Operation. On the other hand, streams that flow from the main memory to an output device like a screen is called an Output Operation.

What is cin and cout?

cin is an object of the input stream and is used to take input from input streams like files, console, etc. cout is an object of the output stream that is used to show output. Basically, cin is an input statement while cout is an output statement. They also use different operators.

What IO means?

I/O (input/output), pronounced “eye-oh,” describes any operation, program, or device that transfers data to or from a computer. Typical I/O devices are printers, hard disks, keyboards, and mouses.
