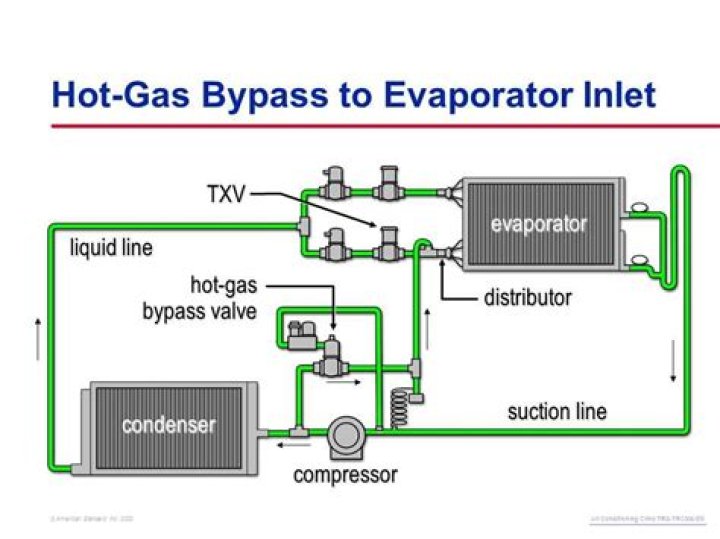

The hot gas bypass is a valve that automatically regulates the cooling temperature in the dryer exchanger based on the refrigerant pressure. The pressure measured after the heat exchanger directly correlates to the temperature in the system. A low pressure means there will be a low temperature.

Does gas bypass need hot?

Hot gas bypass is recommended when the load on an evaporator varies and operation of the air conditioning system is desired at lower than design conditions.

What is the effect of hot gas bypass method as a capacity control on compressor?

Hot gas bypass can stabilize the system balance point by diverting hot, high-pressure refrigerant vapor from the discharge line directly to the low- pressure side of the system. This tactic reliable operation by introducing problems stemming from insufficient oil return and refrigerant logging in the HGBP line.

Does hot gas bypass dehumidify?

As technology advanced, the application of hot-gas bypass can be updated with a modulating compressor. … A lot of people think the hot-gas reheat dehumidifies but it’s really the cooling coil doing the work.

What is hot gas discharge?

Hot gas bypass (also called discharge bypass) is a feature in a refrigeration system uses to satisfy the mechanical needs of the system during low load conditions. … The components usually are a solenoid valve and a pressure/flow control. Larger systems will likely only have an automatic valve, but no solenoid valve.

What is a false load?

By adding hot gas from the discharge line into the evaporator, we can increase the evaporator pressure and temperature. … Because this load is not put there by heat from the return air, the load is referred to as false.

How does hot gas reheat work?

HOT GAS REHEAT uses the high pressure, high temperature, compressor discharge gas to reheat the air leaving the evaporator coil. … Hot gas reheat is typically used in dehumidification modes to meet the desired space sensible temperature set point.

Is hot gas reheat energy recovery?

Hot-gas reheat is a common type of heat recovery often employed in dedicated outside-air systems (DOAS).

How does hot gas defrost work?

The hot gas defrost process uses the superheated vapor from the compressor discharge (on high pressure and high temperature) as the heat source. This vapor is diverted on a third system line, bypassing the condenser and the expansion valve, and directed through the unit cooler coil, warming it from the inside.

What is a hot gas solenoid valve?

Electromechanical solenoid valves offer advanced control of capacity, hot gas by-pass and liquid injection in your air conditioning system. The solenoid valves are suited for use in the widest range of applications in terms of function, capacity and design.

Article first time published on

Can you bypass a Txv valve?

You must install a check valve to bypass the TXV when reverse flow is encountered.

What is a Humidimizer?

The Humidi-MiZer adaptive dehumidification system is an all-inclusive, factory-installed option that offers a cost-effective, flexible and high-performance solution to consistently maintain year-round indoor comfort and humidity levels. … “The Humidi-MiZer adaptive dehumidification system is no exception.

How does an aaon unit work?

AAON precision air conditioning systems operate at a high air flow rate per unit heat removed, generally, 120-160 cfm per kW (410-550 cfm per ton) or greater. This high volumetric rate moves more air through the space improving air distribution and reducing the chance of localized hot spots.

What are dummy loads used for?

A dummy load is a device used to simulate an electrical load, usually for testing purposes. In radio a dummy antenna is connected to the output of a radio transmitter and electrically simulates an antenna, to allow the transmitter to be adjusted and tested without radiating radio waves.

What is hot gas reheat coil?

Hot gas reheat coils work by routing a portion of the gas that would go to the condenser in a standard system to a reheat coil. This coil then brings the air back up to a suitable temperature. Next, the air travels to a supply fan and then to the system’s primary heating coil.

What is a headmaster valve?

The headmaster controls the head pressure of a refrigeration system during low ambient conditions. … Under normal conditions, the pressure from the receiver pushes against the valve dome pressure and keeps the seat closed between the discharge line and receiver.

What is the use of compressor in Vcrs?

The compressor compresses the refrigerant to a high-pressure vapor, causing it to become superheated. Once the refrigerant is compressed and heated, it leaves the compressor and enters the next stage of the cycle.

What is a disadvantage of hot gas defrost?

One drawback to hot gas defrost is that the expansion and contraction of refrigerant lines due to temperature swings can be extreme if the lines run far enough.

What are the advantages and downsides of using hot gas defrost instead of electric defrost?

Because hot gas defrost uses the latent heat of the refrigerant, it consumes less energy compared to equivalent electrical systems. Furthermore, hot gas defrost systems heat up the entire evaporator coil, directing most of the thermal energy generated to the ice block.

Which freezer defrost system is more efficient hot gas or electric?

Hot gas is more efficient because the compressor can generate the same amount of Btus as electric heaters, but with less electrical energy.

What is a Rawal valve?

Rawal Devices is the manufacturer of highly efficient and cost-effective solutions (including the APR Control (analog) and APR-E (digital) Valves) that solve temperature and humidity control problems in commercial, industrial and institutional building applications.

Why do we need solenoid valve?

Solenoid valves help to control the flow of liquid or gas. These valves are incorporated into the equipment so that the equipment can be used safely and efficiently. What a solenoid valve does is use a plunger to open or close the valve, either allowing the liquid to flow through or sealing it off without any leaks.

What do solenoid valves do?

Solenoid valves are the most frequently used control elements in fluidics. They are commonly used to shut off, release, dose, distribute or mix fluids. For that reason, they are found in many application areas.

What is the purpose of the liquid solenoid?

The Liquid-Line Solenoid Valve holds refrigerant in the liquid line when the system is not running. The liquid-line solenoid valve closes when the thermostat demand is satisfied to prevent liquid refrigerant migration. This device is for use in long-line applications.

How much does a TXV valve cost?

Overall, replacing your TXV valve will cost between $225-$500.

What happens if a TXV is stuck open?

Even holding he bulb in your hand should provide enough heat to open the valve. Next, place the TXV bulb into cold water. This should cause the expansion valve to close reducing the amount of refrigerant to pass thought the TXV into the coil. Suction pressure should drop, and superheat should rise.

What happens when TXV is stuck closed?

A small amount of refrigerant vaporizing will cause a lower pressure. High Superheats — High superheats also are caused by the evaporator and compressor being starved of refrigerant. With the TXV restricted, the evaporator will become inactive and run high superheat. This will cause the compressor superheat to be high.

Does a reheat coil dehumidify?

Reheat for dehumidification is simply cooling the air with the air conditioner to pull out the moisture. But instead of throwing the heat outside, the reheat coil simply puts that heat back Into the original air stream. It forces an air conditioner to act like a poorly designed dehumidifier.

How do I read an aaon serial number?

1. Style 1: 200108AKG26241. Year of manufacture can be determined by using the 1st – 4th numerical digits. …
2. Style 2: 97JKGK153. Year of manufacture can be determined using the 1st & 2nd numerical digits. …
3. Style 3: AKEC08701. Year of manufacture can be determined using the 6th &7th numerical digits.

What does low air flow mean?

Clogged air filter: This is the most common cause of low airflow, and also one that is easily preventable. … If the blower begins to fail due to problems with its motor or the electrical system, the airflow will start to plummet. This also means less efficient cooling because of the reduction of air across the coil.
