The size most commonly associated with screw threads is the nominal diameter. Nominal diameter is a more of a label than a size. For example, a bolt and nut may be described as being ½” diameter.

Is nominal diameter and major diameter the same?

The Major Diameter measures the distance between external crests for male threads and internal roots for female threads, and describes an actually measured dimension, rather than a theoretical, design dimension. Travis_King said: Nominal diameter is the diameter from crest to crest that the fastener is listed as.

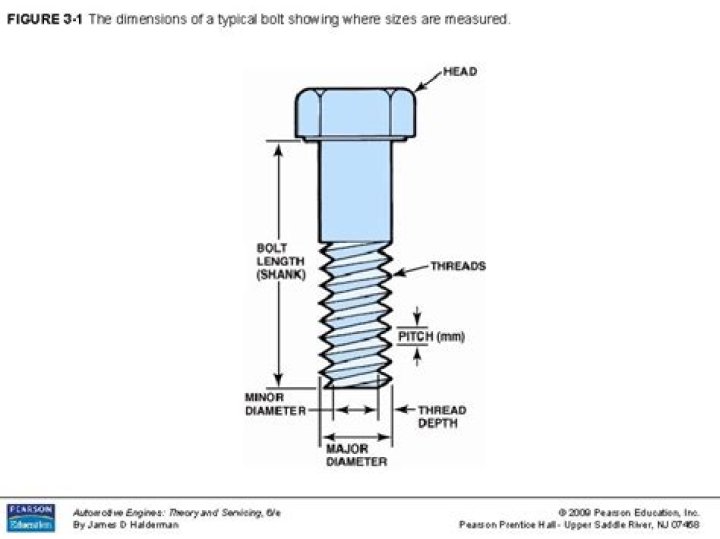

How do you measure bolt size?

1. Step 1: Measure the shank’s diameter. …
2. Step 2: Determine the thread pitch. …
3. Step 3: Measure the length of the shank. …
4. Step 4: Determine the bolt’s grade. …
5. Step 5: Determine the shape of the bolt’s head. …
6. Step 6: Measure the length of the threaded portion of the bolt.

What does nominal thread size mean?

Thread sizes are given in nominal sizes, not in the actual measurement. The exact measurement is slightly below the named or nominal size. For example, a 6mm bolt may measure 5.8mm or 5.9mm, but it is called 6mm bolt. … Note: The wrench size for the head of the bolt or nut is not used to determine the size of the thread.

What are standard bolt sizes?

Bolt DiameterStandard Thread Length (in.) *Bolts 6 inches and shorterBolts longer than 6 inches5/8″1-1/2″1-3/4″3/4″1-3/4″2″7/8″2″2-1/4″

What is UNF and UNC thread?

The Unified Thread Series is classified into coarse threads, fine threads and extra fine threads much like Metric screw threads are. UNC: Is the symbol for Unified coarse pitch threads. UNF: Is the symbol for Unified fine pitch threads. UNEF: Is the symbol for United extra fine pitch threads.

What is Major Dia minor dia?

Major Diameter is the largest diameter of a screw thread. Whereas, Minor Diameter is the smallest diameter of a screw thread.

How do you calculate minor dia thread?

According to page 1528 of The Machinery’s Handbook (29th Ed.), that formula is given as A_S=(π/4)*((d_m+d_p)/2)^2 where the pitch diameter is d_p=d−0.649519×P, and the minor diameter is d_m=d−1.299038×P. I was trying to understand where the definitions of d_p and d_m come from.

What is nominal diameter of pipe?

Nominal Pipe Size (NPS) is a North American set of standard sizes for pipe. The term nominal refers to pipe in non-specific terms and identifies the inside diameter with a non-dimensional number. For example, a 2-inch nominal steel pipe consists of a family of steel pipe with a 2.375″ diameter.

What thread is 24 TPI?

Bolt SizeThreads Per Inch (TPI)Coarse Thread UNCFine Thread UNF#63240#83236#102432

Article first time published on

What diameter is M12?

M12 bolts are a metric sized bolt with a 12mm thread diameter.

How do you calculate bolt load?

The tensile load a fastener can withstand is determined by the formula P = St x As. To find the tensile strength of a particular bolt, you will need to refer to Mechanical Properties of Externally Threaded Fasteners chart in the Fastenal Technical Reference Guide.

What diameter is M4 bolt?

ThreadMajor DiameterPitch DiameterM44.03.545M4.54.54.013M55.04.480M66.05.350

What is M5 diameter?

Thread SizeNominal Diameter (mm)Thread Pitch (mm)M3.53.50.60M44.00.70M4.54.50.75M55.00.80

What does M12 mean on a bolt?

M12x1. 75 is the measurement code that indicates the thread size and thread pitch of a screw. The first half (M12), is the size measurement (metric) taken across the outside diameter of the thread (which in this case is 12mm).

What is the largest diameter of the screw thread?

Major Diameter: The largest diameter of the thread of the screw or nut. The term “major diameter” replaces the term “outside diameter” as applied to the thread of a screw and also the term “full diameter” as applied to the thread of a nut. Minor Diameter: The smallest diameter of the thread of the screw or nut.

What is the angle of acme threads?

NameCodeAngleAcme thread29°Metric trapezoidal threadsTr30°Buttress threadsS45°German buttress threadsS30°

How many threads are in a inch?

Threads per InchPitch (inches)Pitch (mm)800.01250.318720.01390.353560.01790.454480.02080.529

Which is stronger UNC or UNF?

A 1/4 UNF thread is about 14% stronger than its UNC counterpart. … The metric coarse thread is actually between UN coarse and fine thread, and the metric fine thread is finer than the UNF threads.

What is the full form of BSW thread?

The principal features of the British Standard Whitworth (BSW) thread form are that the angle between the thread flanks is 55 degrees and the thread has radii at both the roots and the crests of the thread.

What is the pitch diameter?

PITCH DIAMETER-The basic thread pitch diameter is the diameter where the thread thickness is equal to the space between the threads. If the flats at the top and bottom of the thread are the same, the pitch diameter will coincide with the middle of the sloping side of the thread.

How is nominal dia calculated?

Calculation of Pipe Internal Diameter (ID) by the pipe NPS minus double the pipe wall thickness (which can be obtained from the pipe schedule). For example, for a 12 NPS (DN 300 mm) pipe, schedule 40, the OD and wall thickness are respectively 12.75 inches (324 mm) and 0.406 inches (10.4 mm).

How do you calculate nominal size?

The nominal thickness of hardwood lumber is based on the quarter scale, 4/4, 5/4, 6/4, 8/4, etc. The rough size can be found by dividing the numerator by the denominator. For example, 8/4 lumber is roughly 2” thick (8 divided by 4 equals 2). But once again, the quarter-scale is the nominal thickness.

How do you calculate pipe dia?

The equation for pipe diameter is the square root of 4 times the flow rate divided by pi times velocity. For example, given a flow rate of 1,000 inches per second and a velocity of 40 cubic inches per second, the diameter would be the square root of 1000 times 4 divided by 3.14 times 40 or 5.64 inches.

How is acme thread depth calculated?

ParameterEquationBasic Pitch DiameterD2D2=D−hBasic Minor DiameterD1D1=D−2hThickness at Pitch Linett=P2Basic Height of Threadhh=0.3P

How is thread depth calculated?

Since the width of the thread and circumference of the bolt are known, we can calculate the number of threads. Now we know the pitch of the threads and the number of threads, so we can calculate the threaded depth. As it turns out, this can usually be simplified to Threaded Depth = 1.5 x Diameter.

How do you find the diameter of a nominal bolt?

You can also measure from the bottom cavity of the threads from one side to the other to find the minor diameter. For sizes of 1/4″ or lower, a number is commonly used to designate the size. This is called a nominal measurement.

How are Dia threads measured?

Measure screw diameter, or screw size, by measuring the width of the threaded part of the screw. This corresponds to the first number of the thread size. For inches, any diameter smaller than 1/4″ is indicated by a number, referenced in the table below (e.g. 8 corresponds to 0.164″).

What thread is 28 TPI?

UNF Thread Diameter (inches)Threads Per InchTap Drill Diameter (mm)12 – 28284.701/4″ – 28285.505/16″ – 24246.903/8″ – 24248.50

What thread is 12 TPI?

1. 12-UN – Unified Extra Fine Thread, which is used for special purposes. The flank angle is 60°.

What size is M4 screw?

The M4 machine screw has a thread diameter of 4 millimetres, in simple terms the M stands for millimetres followed by the size – in this case 4 mm.
