Plumbing codes require water softening systems to air gap their drain lines and it’s strongly recommended you include an air gap in any under-sink reverse osmosis system. Furthermore, the purpose of these systems is to deliver high-quality water to you and your home.

Is an air gap faucet necessary?

Plumbing codes require water softening systems to air gap their drain lines and it’s strongly recommended you include an air gap in any under-sink reverse osmosis system. Furthermore, the purpose of these systems is to deliver high-quality water to you and your home.

Do kitchen faucets come with air gap?

RO systems facilitate filtered water flow through their own faucet, and manufacturers most often choose to use a faucet with an air gap already inherent in the faucet. So, the answer is yes; you do need an air gap for your kitchen faucet if you’re under the sink; the water supply includes an RO system.

What does non air gap mean?

The air gap system routes the unit’s drain water upward through a 1/4″ flexible tube to a small trough built into the base of the faucet. … Whereas a non-air gap faucet sends the drain line water from the RO membrane directly into the sink drain. A non-air gap faucet only has the drinking water line connected to it.

Why do you need air gaps?

Air gaps prevent cross-connections and contamination by discharging water and waste across an unobstructed space (a gap of air). That space is between the fixture outlet and the “flood level rim” of a receptacle (be it a sink, floor drain, standpipe, or other approved unit).

What makes a faucet RO compatible?

When a system is validated by ANSI/NSF every component the water touches must also beANSI/NSF listed for RO compatibility. This includes fittings, tubing, valves, faucets, ice machines. Interestingly, typical refrigerator ice makers/water dispensers are OK to use with RO water.

Do I need an air gap if I have a garbage disposal?

When there is a garbage disposal installed, the dishwasher drain line should run down from the air gap or high loop and connect to a side nipple on the disposal, where it connects with a hose clamp. Do not bypass the garbage disposal if it is present.

Why does my RO faucet have 3 lines?

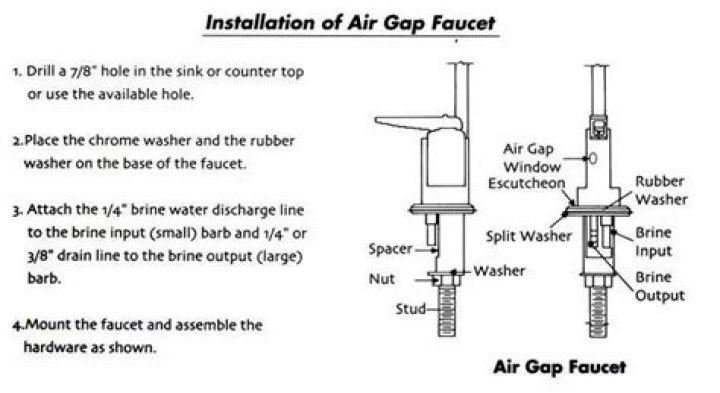

The air gap faucet itself requires, therefore, three tubes rather than one — one is for the upward drain water, one is for the downward drain water, and a third is for the unit’s product water, which you drink. This means that it must have a wider base and will require a larger hole in the sink for installation.

How far is air gap from faucet?

This gap is usually about the distance between the faucet and the top of the sink or bathtub (one inch or more). Basically, the air gap is there to prevent accidental backflow. If contaminated water backflows, it can cause serious health risks. Without the air gap, wastewater could siphon back into the drinking supply.

What is the spout next to kitchen faucet?

A dishwasher air gap (sometimes called a “kitchen air gap” or “kitchen sink air gap”) is usually a small metal cylinder near your sink faucet with a few holes in it, designed to prevent dirty water from draining back into your dishwasher.

Article first time published on

What is the cap next to kitchen faucet?

The valve is actually for the dishwasher and is commonly known as the dishwasher air gap. An air gap’s purpose is to prevent drain water from the kitchen sink backing up into the dishwasher, contaminating your cleanly washed dishes.

Can I remove dishwasher air gap?

If your municipality has changed some of its water codes, you may be able to remove the air gap on a dishwasher as it is no longer needed. … In most installations, the dishwasher will be attached to the hot water supply valve located beneath the kitchen sink. Rotate this knob clockwise to turn off the water.

Where does an air gap go?

Usually fitted to an existing hole on the sink or countertop and covered with a decorative cap, a dishwasher air gap connects to hoses below the sink or countertop. One is the dishwasher drain hose and the other typically connects to the sink’s drain pipe or garbage disposal.

What is the difference between an air gap and an air break?

An air break provides a physical separation between the fixture indirect waste pipe and the receptor. … The drainage air gap (see Figure 801.2c) is defined as the vertical distance as measured from the lowest point of the indirect waste pipe or fixture outlet to the overflow rim of the receptor.

What is a computer air gap?

An air gap, air wall, air gapping, or disconnected network is a network security measure employed on one or more computers to ensure that a secure computer network is physically isolated from unsecured networks, such as the public Internet or an unsecured local area network.

Can dishwasher soap dispenser replace air gap?

Without the mounting plate, two holes will be exposed at the rim of the sink. One of these can be used for an air gap; the other can enable installation of a soap dispenser or a hand-sprayer.

Why does my dishwasher back up into my sink?

There are several common causes of a dishwasher backing up into a sink, including a block in the air gap, an obstruction in your dishwasher or a clogged garbage disposal. One of the most likely culprits is a simple sink clog.

Do Bosch dishwashers need air gap?

The Bosch Instruction manual states: “If no air gap is used and the drain line is run into a sink or disposer, the drain line must be elevated to a point higher than the highest water level of the sink to prevent back siphoning into the dishwasher.”

What does a plumbing air gap do?

When installed and maintained properly, the air gap works as described above, and prevents drain water from the sink from backing up into the dishwasher, possibly contaminating dishes.

Can I use a regular faucet with reverse osmosis?

A great feature of an under-sink Reverse Osmosis water filtration system is that it comes with its own faucet. Your regular kitchen sink faucet can be used for washing dishes and cleaning while the separately installed RO faucet can be used for drinking water, cooking with purified water, and rinsing glasses clean.

Is an air gap required for reverse osmosis?

The air gap portion of the faucet is designed to be connected to the drain line of the RO unit, and then to the sink drain. … Since your RO system has only one discharge (drain) line, there is only a need for one air gap per installed RO system, since there is only one drain line.

Can you connect reverse osmosis to kitchen faucet?

The RO system can be physically connected to the kitchen faucet, however, once the water in the storage has been depleted, and the tank is empty, you will be left with only the RO system’s production rate – which is a trickle (2-4 gallons per hour).

Are Moen beverage faucets RO compatible?

Moen’s Sip™ faucets make it easier than ever to add a cold water tap to your kitchen. … This faucet is not compatible with reverse osmosis systems.

How do I hide the gap between my kitchen cabinets and dishwasher?

Cover the joint between the panel and the existing cabinetry, if it is visible, using caulking or wood putty colored to match your cabinets. Place a bead of paintable caulking all along the seam and smooth it with your finger. Paint if necessary to create a seamless finish.

Is an air gap required in Texas?

As an example, in Texas, dishwashers are required to have an ‘air gap’ that prevents dirty water from flowing back into the unit. In other areas of the country though, you can solve this problem by creating a ‘high loop’ with your drain line.

What size hole do you drill for an air gap?

An air gap faucet needs a hole that’s at least 3/4″ in diameter, and it should be no larger than 1 1/4″.

What is RO filtered water?

Reverse Osmosis (RO) is a water treatment process that removes contaminants from water by using pressure to force water molecules through a semipermeable membrane. During this process, the contaminants are filtered out and flushed away, leaving clean, delicious drinking water.

What is reverse osmosis water?

Reverse Osmosis is a technology that is used to remove a large majority of contaminants from water by pushing the water under pressure through a semi-permeable membrane.

Why does my RO system keep draining?

If tank pressure is too low or the shut-off valve or check valve is broken, water might flow continuously down the drain. This means that your RO system not only wastes a lot of water, the noises can also become quite annoying after a while.

What is the spout on a faucet?

The spout is the part of the faucet that most people notice first; it’s the part that delivers water from the body to the sink and it can be distinctive in its design. A straight spout provides a long reach with a low profile.

How do I know what type of kitchen faucet I have?

1. Find the logo. The first and easiest way to find out the brand of your kitchen faucet will be if you can locate the logo somewhere on it. …
2. Find a model number. …
3. Count the splines on the broach and measure the stem. …
4. Distinguishing features. …
5. Use a broach gauge.
