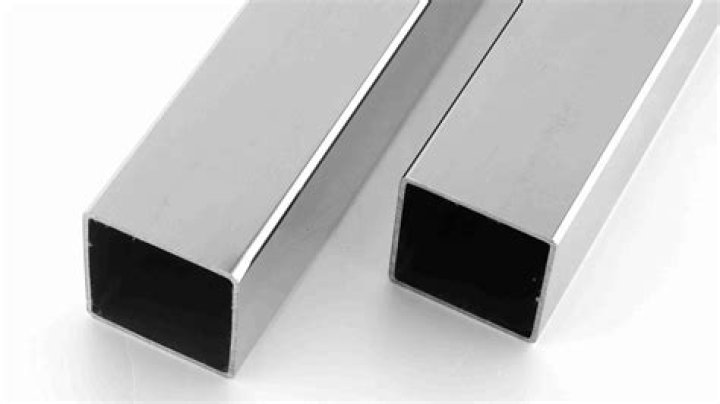

Square Steel Tube is a welded structural grade tubing that is available in either type A513 or A500 Grade B, depending on it’s size and wall thickness. … Steel Square Tube is widely used in industrial maintenance, agricultural implements, transportation equipment, truck beds, trailers, frames, etc.

How do you measure a square tube?

The Steel Tube Institute of North America specifies the measurement of square tubing by its outside width. For example, a tube with 2-inch wide sides calls out as 2 by 2 inches. Sizes range from 1-1/4 by 1-1/4 inch to 32 by 32 inch.

How much is 2 square tube?

QuantityPrice1$19.19 each2 – 9$13.56 each10 – 24$10.28 each25 – 99$9.15 each

What sizes do square tubing come in?

• 0.5 x 0.5 x 0.035 Square Mechanical Tubing. …
• 0.5 x 0.5 x 0.049 Square Mechanical Tubing. …
• 0.5 x 0.5 x 0.065 Square Mechanical Tubing. …
• 0.625 x 0.625 x 0.049 Square Mechanical Tubing. …
• 0.625 x 0.625 x 0.065 Square Mechanical Tubing. …
• 0.75 x 0.75 x 0.035 Square Mechanical Tubing.

How strong is 2x2 square tubing?

A 2-inch x 2-inch piece of square steel tube with a wall thickness of 0.1875 inches can carry 4.32 lbs per foot of length.

What is the ID of 3/4 square tubing?

Speedy Metals 3/4″ SQ x 0.620″ ID x . 065″ Wall Other Steel Square Tube.

How long does square tubing come in?

Stock Lengths: Mechanical – 20 Ft. Structural – 20 & 40 Ft.

Which is stronger square or round tubing?

The answer is round tube has a higher resistance to both flex and torsional twisting than a square for a given weight. … If you have a. Thanks to the even weight distribution, circles are much stronger than squares. Each corner of a square has a weak point in the middle.

How is steel tubing measured?

Tubing is measured by the OUTSIDE DIAMETER (O.D.), specified in inches (e.g., 1.250) or fraction of an inch (eg. 1-1/4″). Pipe is usually measured by NOMINAL PIPE SIZE (NPS). … For sizes larger than 12-inch, NPS corresponds to the actual outside diameter.

What is square pipe called?

Rectangular and square HSS are also commonly called tube steel or box section. Circular HSS are sometimes mistakenly called steel pipe, although true steel pipe is actually dimensioned and classed differently from HSS.

Article first time published on

What size tubing is used for carports?

What materials are used to make the structures? The majority of components utilized in our frames are made of 2 1/4″ by 2 1/4″ galvanized steel tubing for 12 gauge buildings and 2 1/2″ by 2 1/2″ for 14 gauge buildings. Some manufacturers use a 2 1/4″ 14 gauge or a 2″ x 3″ 14 gauge frame.

Is aluminum stronger than steel?

Strength. Stainless steel is heavier and stronger than aluminum. In fact, aluminum is around 1/3 the weight of steel. Even though stainless steel is stronger, aluminum has a much better strength to weight ratio than stainless steel.

What is stronger C channel or square tubing?

A C channel the same weight as tubing has more metal on one side allowing that side to be welded correctly. 2 inch C will weld stronger in all applications then the tubing you have shown.

Is square tubing stronger than I Beam?

Beams generally have thicker flanges and thinner webs, so pound for pound, beams generally make better beams than tubes do. If loaded as a column, the one with the largest cross section will be the strongest as long as you don’t get into buckling. If you are loading in torsion, generally the tube will be stronger.

Which is stronger pipe or tube?

Tubes are stronger than pipe. Tubes perform better in applications that require durability and strength.

What type of steel is square tubing made of?

Square Tube is commonly available in Aluminum, Stainless Steel, Hot Rolled Steel and Cold Rolled Steel.

What is a stick of steel?

SteelStik is a hand-mixable, steel-reinforced, non-rusting epoxy putty that quickly repairs or rebuilds anything made of metal.

How long is a stick of tubing?

Single random pipe length is usually 18 – 25 feet plain end or 18 – 22 feet threaded and coupled pipes.

What is the OD of 6 pipe?

PIPE SCHEDULES WALL THICKNESS (Inches)NominalO.D. Inches80s & E.H.55.563.37566.625.43277.625.500

What is DOM tube?

Drawn Over Mandrel (DOM) Round Mechanical Tubing is a cold drawn 1020/1026 electric resistance welded tube with all the flash removed prior to cold drawing. In comparison to other tubing, DOM round steel tubing is produced to more exact OD and ID tolerances, and has the highest weld strength possible.

What is the ID of 1/2 tubing?

1-1/2″ tubing has a true 1.50″ outside diameter.

What is pipe gauge?

Tubing comes in a variety of gauges, referring to the wall thickness. Popular gauges of tube that are used are 10, 11, 12, 13, 14, 16, 18, and 20. The lower the gauge number the thicker the wall thickness of the tube. … wall thickness, whereas 20 gauge tube measures out at a . 035 in.

What is OD of 2 steel pipe?

NPSOutside Diameter (in)Weight (lb/ft)22.375″5.02 lb/ft2-1/22.875″7.66 lb/ft33.500″10.25 lb/ft3-1/24.000″12.50 lb/ft

What does Schedule 40 mean?

Here are a few examples of this: Pipe size 1.000” Schedule 40 – The actual wall thickness is 0.133” or 3.378 mm. Pipe size 1.000” Schedule 80 – The actual wall thickness is 0.179” or 4.547 mm. Pipe size 2.000” Schedule 40 – The actual wall thickness is 0.154” or 3.912 mm.

Is tube stronger than bar?

And, it’s a common myth that a solid rod bends easier than a hollow tube of the same material. Fact is, given the same material, a solid rod is stronger in all respects than a hollow tube of the same material.

Is square tubing or angle iron stronger?

Square steel tubing’s strength comes from its shape. Requiring more material to fabricate, square tubes are generally thicker than angle iron or round tubes. Despite requiring more metal to fabricate, its strength-to-weight ratio allows for lighter pieces to hold more weight. That means you can do more with less.

Is pipe stronger than solid bar?

Strength to weight ratio is better for a hollow pipe than a solid rod.” This means a hollow cylinder is stronger than a rod of equal mass and the same material. A hollow cylinder with a bigger inside diameter is better. In the limit x→1 the hollow cylinder is twice as strong.

How is square pipe made?

Shaped tubes typically are produced by making a round tube and then forming it into a square, rectangular, or other shape. The cage forming process doesn’t form round first, then the final shape; instead, the material goes from flat directly to the desired shape.

Where are hollow sections used?

For example, hollow sections have been used in iconic structures such as the London Eye, Emirates Stadium and space- frame structure of the world record-breaking JCB Dieselmax. Also, they are ideal for everyday applications such as vehicle trailers, fences and handrails.

What is the abbreviation for square tubing?

stocks Square Tubing in many different sizes, materials and wall thicknesses. Square Tubing is a hollow structural shape, sometimes abbreviated HSS.

What is stronger 12 gauge or 14 gauge?

In the gauge system the higher the number the thinner the steel. As an example, 12 gauge steel is thicker and stronger than 14 gauge steel.
