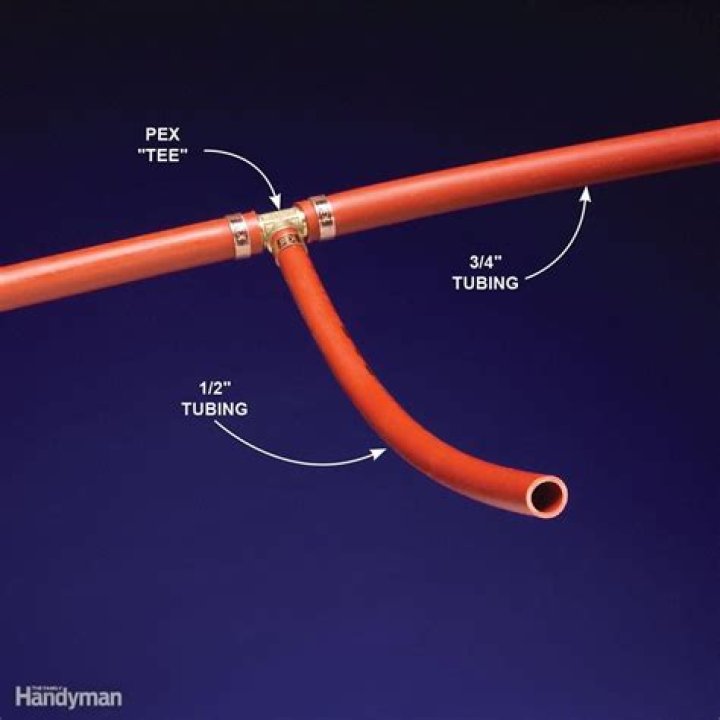

If you want to splice PEX the fastest way is to cut a section of the pipe and slip a stab-in tee fitting. … The PEX tubing will be slipped over the adapter before it is attached to your chosen location. A stab-in tee can also be used if you want to make a PEX connection to a CPVC pipe.

Will PEX plumbing pipes freeze and break?

Due to its flexibility, PEX has a small margin of expansion under the damaging pressure caused by ice formation. If the weather gets cold enough, PEX pipes can and will freeze like any plumbing. However, PEX may be less likely to rupture as a result of freezing.

Will PEX fittings leak?

PEX pipes are not actually prone to leaking. Accidental holes may occur, but most plumbing leaks happen at connection spots or joints which are caused by incorrect installation.

What causes PEX pipe to leak?

When water flows through your PEX pipes, the zinc in the fittings can seep out of the fittings, causing a white residue to build up inside the pipe, constricting water flow. … It also causes fittings to crack or break, leaking water within your walls or underneath your house.

Can you reuse PEX fittings?

When done correctly, it’s possible to reuse PEX fittings after the copper crimp rings have been removed.

What is the difference between PEX A and PEX B?

Again, the main distinction lies in the manufacturing method, which is what assigns an A, B or C to PEX. PEX A is made using the Peroxide, or Engel, method. PEX B is formed using Silane, or Moisture Cure, method. This is the most common PEX pipe type out there.

Can you crimp PEX?

Crimp fittings are compatible with all types of PEX tubing, except for PEX-AL-PEX. Crimp fittings are preferred for many applications since they are widely available and are the most affordable.

Where is PEX not allowed?

PEX can’t be installed in high heat areas. You can’t install PEX in high heat areas like near recessed lighting. This also means you can’t connect PEX directly to a hot water heater, but you can use a connecting material to do this.

How long does PEX pipe last?

Additionally, long-term testing programs on PEX have shown that it has a potential lifespan of more than 100 years. So, while copper systems may have to be re-piped every few years or decades due to corrosion and pinhole leaks, a PEX system can last 10 times longer — or more.

What temperature is PEX good for?

The maximum heat temperature of the PEX tube is 200 degrees. The maximum heat of the PEX can be up to 180 degrees. The PEX tubing has the highest temperature limitation listed in small prints.

Article first time published on

Is PEX better than PVC?

When a connection to copper or other metal pipes is required, PEX works better than PVC because crosslinked polyethylene won’t corrode. … When you compare the material costs of PEX vs PVC, PEX comes out more expensive. (However, balance this factor against the lower labor cost to install PEX.)

Does PEX crack over time?

Like most other plastics, PEX will become brittle if exposed to sunlight for too long and may crack under pressure. Typical exposure limit is ~30 days. 7. Give it some slack!

Which is better for PEX crimp or cinch?

The stainless steel Cinch Clamps are stronger than the copper Crimp Rings. I know this from personal experience after working with frozen water lines. When the fitted connection freezes with water in the line it will cause the copper Crimp Ring to expand just enough to cause a leak when it thaws.

Is PEX crimp or clamp better?

If you are looking for a fast and more secure connection that will stand the test of time, crimp tools are your better option. But if you want more flexibility without working more, go for PEX clamps.

What is wrong with PEX plumbing?

Pex Piping fails when the pipes are exposed to chlorine that is common in municipal water supplies, exposure to direct sunlight before its installation. PEX pipe is also vulnerable when it contacts petroleum products or oxygen. Pex piping can leach toxic chemicals from pipe material.

Are plastic PEX fittings any good?

In areas where water is very acidic plastic PEX fitting is the most ideal. Plastic fittings do not corrode or wear out due to terrible water condition. It is very effective and highly durable and can be used in houses that have a lower quality water system.

Are Sharkbites reliable?

John Guest quick-connect and SharkBite fittings are both reliable and awesome fittings for emergency fixes. Even though Quick-Connect and SharkBite fittings are rated for use underground and behind walls, soldering pipes may be the smarter choice.

Will shark bites ever leak?

SharkBite fittings can leak due to one of these reasons: The pipe was not properly deburred prior to installation. The pipe was not properly inserted. … The pipe has scratches or debris on the outside that is preventing the O-ring from getting a watertight seal.

Do plumbers use SharkBite fittings?

SharkBite fittings have been used quite frequently by do-it-yourselfers in order to accomplish small plumbing tasks. Although they are more expensive than regular connections, the simplicity of pushing these pieces on rather than using solder makes for a hassle free installation.

Can you use crimp rings on plastic PEX fittings?

SharkBite PEX plastic barb fittings are suited for potable water distribution and hydronic heating applications. These PEX fittings may be used with the stainless steel clamp system or the copper crimp ring system (both sold separately).

Can you use SharkBite on PEX type A?

Many customers and DIY plumbers have asked us about SharkBite fittings. So, do they work? SharkBite does make a coupling that connects PEX-A to PEX-B. However, we don’t recommend using them.

Can you use brass compression fittings on PEX?

Q: Can I use compression fittings with PEX/poly pipe? A: In general, we do not recommend using compression fittings on larger plastic pipe sizes (3/8″ CTS or 1/2″ OD and over) and instead would suggest using either brass (or plastic) push fittings, or brass/poly PEX fittings (for PEX pipe) where possible.

Can PEX-A be clamped?

Using stainless steel pinch clamps, also referred to as ear clamps, are a great way to connect PEX pipe to PEX fittings. Connections made using SS Pinch Clamps with an interlocking design provide the same high integrity connection as a copper crimp ring connection.

Can mice chew through PEX pipe?

Mice and rats will chew through anything they can, including plastic, so PEX tubing is at just as much risk as the plastic-coated wiring in a car or an HVAC unit. While all rodent damage can be expensive, if rodents chew through a home’s PEX water pipes, the result can be disastrous.

Can you use blue PEX for hot water?

PEX without an oxygen barrier is designed primarily for use in potable water plumbing systems. … The color of PEX does not change any of the tubing’s ratings. There would be no problem, for example, using blue PEX for hot water lines or red PEX for cold water lines.

Is SharkBite PEX-A or B?

SharkBite non oxygen barrier pipe is manufacture as PEX-B and SharkBite oxygen barrier pipe is manufactured as PEX-C.

Is PEX cheaper than copper?

PEX pipe is not only cheaper than copper but more durable too. PEX is immune to corrosion and mineral build-up, and it’s not affected by electrolysis, which can cause small pinhole leaks in copper piping.

Is PEX plumbing better than copper?

We generally belive that Plumbing PEX Tubing is much better than Copper for most, if not all, plumbing systems. … PEX Tubing is much more resistant to freeze-breakage than copper or rigid plastic pipe. PEX Tubing is cheaper because it takes much less labor to install. PEX Tubing is quickly becoming the industry standard.

Should I replace copper pipes with PEX?

The installer recommends replacing my copper pipes with PEX. … If so, you could get another 23 years out of your copper pipes and spare the cost to replace plumbing. If it’s a small area that’s leaking, you could just replace that section with either PEX or copper. Both types are interchangeable.

Can PEX go straight to water heater?

PEX can’t be directly connected to a water heater. … from your water heater and connect the PEX to the pipe.

Can PEX be used behind walls?

03-17-2016, 07:16 AM Re: PEX question: T fittings inside a wall. by The Famous Grouse (Hopefully this is a …) Grouse, yes pex is allowed in a wall.
