Pressure regulators are not designed to control flow rates. Although pressure regulators used in flowing systems inherently affect the flow by controlling the pressure, they are not designed to act as flow controllers.

What is the difference between a flow regulator and a pressure regulator?

The flow control valves are used for controlling and adjusting the fluid or gas flow through the system. The pressure control valve is used to regulate the pressure of a fluid passing through the pipe. The difference is exactly how it sounds.

What does a pressure regulator do?

Pressure regulators reduce a supply (or inlet) pressure to a lower outlet pressure and work to maintain this outlet pressure despite fluctuations in the inlet pressure.

How do I know if my water pressure regulator is bad?

1. Diminishing water pressure. …
2. No water pressure. …
3. Thumping, Banging, Hammering or vibrating noises in your walls. …
4. High water pressure Water Leaking From Faucet, Toilet Running Constantly.

How do you reduce pressure but not flow?

The best way to control high pressure is by installing a pressure reducing valve. These take a high pressure at the inlet, then the valve reduces it to a lower pressure at the outlet as desired, under both flow and no-flow conditions.

What happens when a water pressure regulator fails?

A malfunctioning water pressure regulator will cause a change in the pressure of water when you turn on the faucet. Fluctuations in water pressure usually means you have a bad regulator. … The pressure can also go so low that the when a faucet is turned on there is no flow or water just drips.

Do flow control valves reduce pressure?

The valve limits the reservoir filling flow by simply reducing the pressure upstream from the orifice (between the orifice & the valve), thereby prioritizing consumers over reservoir filling, and providing level control and valve cavitation protection.

How does a regulator fail?

Excessive flexing of the metal diaphragm can cause a radial crack, which allows gas to escape to the atmosphere through the vent hole in the bonnet. The second and perhaps the most common type of regulator failure is the internal leak, sometimes called creep or crawl.

What happens when a pressure reducing valve fails?

If you have a regulator and it fails, you’ll notice an immediate reaction in your home. For instance, you’ll experience irregular water pressure that is hard to control with your sink, toilet, or bathtub faucets. The pressure is likely too high or too low.

Why are two stage regulators used sometimes and not a single stage regulator?

Single-stage gas pressure regulators reduce cylinder pressure to delivery or outlet pressure in one step. Two-stage gas pressure regulators reduce cylinder pressure in two steps. … A two-stage regulator, however, provides constant delivery pressure with no need for periodic readjustment.

Article first time published on

Do I really need a pressure reducing valve?

Yes. In areas with high water pressure such as Draper – because our water comes down from the mountains – a PRV helps protect pipes, fixtures, and water-using appliances from damage or breaks. PRVs can save you money by reducing the amount of wasted water in your home.

Does pressure affect flow?

More pressure changes the velocity of the fluid, but it also decreases the flow or output. The cause of the flow decrease is due to two factors: volumetric efficiency of the pump and reduced motor speed. … It stands to reason, then, that increasing pump pressure will not increase flow.

What is the relationship between pressure and flow?

Fluid flow requires a pressure gradient (ΔP) between two points such that flow is directly proportional to the pressure differential. Higher pressure differences will drive greater flow rates. The pressure gradient establishes the direction of flow.

How do you reduce pressure loss?

1. Properly design the distribution system.
2. Operate and maintain air filtering and drying equipment to reduce the effects of moisture, such as pipe corrosion.
3. Select after coolers, separators, dryers and filters having the lowest possible pressure drop for the rated conditions.

Can pressure regulator increase pressure?

Look for a “bell shape.” On top of the regulator should be an adjustment screw and a lock nut. The adjustment screw raises and lowers the water pressure, but before it can be adjusted, you need to loosen the lock nut below it. … Turn the adjustment screw counterclockwise to lower or clockwise to raise the pressure.

How do control valves reduce pressure?

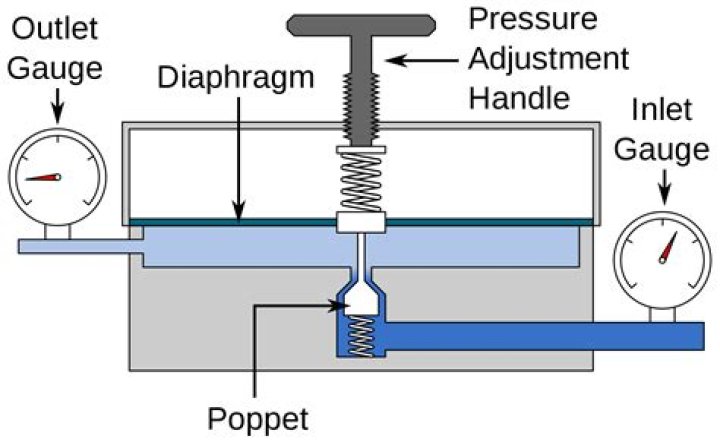

CONTROL VALVES On the bottom of the diaphragm, the outlet pressure of the valve forces the diaphragm upward to shut the valve. When the outlet pressure drops below the set point of the valve, the spring pressure overcomes the outlet pressure and forces the valve stem downward, opening the valve.

Do valves affect pressure?

On an air compressor, there is a valve that regulates the pressure. If you open the valve, the pressure increases.

How often should you replace your water pressure regulator?

However, you will see a regulator malfunction at 3 years and you will see a regulator still working at 20 years old. Most manufacturers recommend swapping the valve every 5 years and most plumbing contractors would suggest you change the valve every 10 years.

What does it mean when your water pressure goes up and down?

When air gets trapped in pipes, it can cause fluctuating, and spluttering water pressure as the air and water move through the pipes. … Air can enter the pipes through a leaking suction line, damaged tank bladders, a faulty pump, gas build up in the well system or leaks in the pipeline.

How much should it cost to replace a water pressure regulator?

The part usually costs around $50, while hiring a professional plumber to install one ranges from $250-350. Here’s an overview of how it’s done: Find the proper location. Usually, water pressure regulators are installed where your main water line comes into your house, after the main shutoff valve.

When should I replace my water pressure reducing valve?

A pressure reducing valve can last anywhere from three to five years. A home with a faulty pressure reducing valve may have problems. When a homeowner notices the pressure reducer valve isn’t working, he should have it replaced.

How much does a plumber charge to install a pressure reducing valve?

How Much Does a Pressure Reducing Valve Cost? Pressure reducing valves start at around $50. Having a new pressure reducing valve installed by a professional plumber will probably set you back around $350.

Can pressure regulator fail open?

The self- operated regulator is commonly referred to as fail open. This is true if the diaphragm should fail. However, no regulator can be classified as fail open or closed.

Can a pressure regulator fail closed?

Regarding the failure mode, you can specify fail-closed and it can be implemented. … In the case of a self-regulating pressure valve, power failure is the upstream process pressure loss, while signal failure is the impulse line pressure loss (which can also due to upstream process pressure loss or tube burst).

How do I know if my pressure reducing valve is bad?

1. Low or Fluctuating Water Pressure. …
2. No Water Pressure. …
3. Hammering or Vibrating Noises. …
4. A Leak in your Flower Bed. …
5. High Water Pressure.

What CGA 540?

CGA-540 is the standard fitting for the attachment of a compressed gas cylinder to the required regulator or transfer line in the United States. Regulator Features Include: Constant lock-up, flowing pressure range and large flow reserve throughout the pressure charge range of the cylinder.

Is a single stage regulator is preferred for cutting operations?

Single Stage Pressure Regulators The single stage series comprises a wide range of versatile regulators designed specifically for use in welding, gas cutting & heating applications. A single stage pressure regulator is mainly preferred for cutting operations. Body and bonnet are made from high quality forged brass .

Do you need an expansion tank with a pressure reducing valve?

Pressure Regulator needs an Expansion Tank. … Because water pressure is the same everywhere in a plumbing system, this means that the pressure inside the pipes increases, as does the pressure placed on the various plumbing fixtures, and the back-pressure on the pressure regulator.

Can a water pressure regulator be underground?

Some water pressure regulators are installed underground, particularly for outside irrigation systems and in homes located in warmer climates. Luckily, there are ways to find an underground water pressure regulator. Water pressure is measured in pounds per square inch, known as PSI.

How does pressure affect mass flow?

Higher the pressure gradient, keeping all other things (fluid, pipe diameter, length) constant, higher is the mass flow rate.

Why does pressure difference cause flow?

Fluids flow from areas of high pressure to areas of low pressure. Pressure is the force applied per unit area. Higher the pressure, higher would be force applied on adjacent molecules to move forward. By this way, the molecules move from high pressure region to low pressure region.
