The HEUI pump pressurizes the engine oil which is fed to the HEUI injector. The high-pressure oil then pushes the plunger which then pushes the fuel and pressure is created. To generate the required pressure, the PCM controls the IPR (injection pressure regulator).

How does a cat heui pump work?

The high-pressure oil on top of the intensifier piston forces the plunger (D) down, which in turn forces the nozzle needle to lift, pressurizing the fuel in the plunger cavity, and ultimately opening the nozzle (E), sending fuel into the combustion chamber.

How long does a heui pump last?

HEUI Injectors Last As a general rule of thumb, a 7.3L injector will last 200,000 miles without skipping a beat, although we’ve seen them go 250,000 to 350,000 before an overhaul was typically necessary.

How is the high pressure injection pump operated in a HEUI system?

High pressure oil pump – The HPOP is the heart of the HEUI injection system, creating and maintaining pressure in the high pressure oil circuit. The HPOP feeds highly pressurized engine oil to each injector and the pressure in this system dictates the operating fuel pressure.

What is HEUI fuel system?

Hydraulically actuated electronic unit injection (HEUI) fuel systems utilize highly pressurized engine oil to drive plungers pressurizing fuel for injection.

What type of injector nozzle is used in a heui?

Spring-biased nozzles are common in mechanically actuated and electronically actuated fuel injection systems. Some examples include pump-line-nozzle systems, many unit pump and unit injector systems such as Delphi’s E1, Cummins CELECT and Caterpillar’s HEUI-A and MEUI-A.

What engines use heui?

HEUI applications included the Ford 7.3L and 6.0L Powerstroke used between May 1993 and 2007. International also used the HEUI system for multiple engines including the DT 466E, DT 570, T-444E, DT-466–570, MaxxForce 5, 7, 9, 10, MaxxForce DT and VT365 engines.

How does a 6.0 injector work?

The 6.0 Powerstroke engine, like the 7.3 its predecessor, uses Hydraulic Electronic Unit Diesel Injectors (HEUI), which receive energy to open from engine lube oil that’s pressurized by a gear-driven high-pressure pump.

How many fuel chambers are in heui?

The HEUI uses engine lubrication oil that is pressurized from870 psi (6 Mpa) to 3500 psi (24 Mpa) to pump fuel from the injector. The HEUI operates in the same way as a hydraulic cylinder to multiply the force of the high- pressure oil,there are four chambers.

Is the 6.7 Powerstroke heui?

2 (6.7L) No HEUI here, just diesel fuel. Modern day, common-rail technology is employed on the 6.7L Power Stroke and at the heart of the system is a CP4. 2 high-pressure fuel pump from Bosch.

Article first time published on

How does electronic unit injector work?

The electronic unit injector is mechanically pressurized using the electronic control of metering, timing, and governing functions. … An engine camshaft drives the injector typically through the rocker lever, resulting in an efficient mechanical and hydraulic fuel system that can minimize parasitic losses.

Who invented the HEUI injector?

Detroit Diesel Corporation’s electronically-controlled unit injector systems developed in the 1980s in cooperation with GM’s Rochester Products Division. Caterpillar’s hydraulically-actuated electronically-controlled unit injector system (HEUI). Cummins’ HPI injection system developed in cooperation with Scania.

How do you fix stiction?

Stiction can be combated using a specially formulated oil additive and it’s onset time reduced by using a quality synthetic engine oil changed at OE recommended intervals.

How does a diesel inline fuel pump work?

An Injection Pump is the device that pumps fuel into the cylinders of a diesel engine. … It rotates at half crankshaft speed in a conventional four-stroke diesel engine. Its timing is such that the fuel is injected only very slightly before top dead centre of that cylinder’s compression stroke.

How are heui supplied hydraulically by fuel charging pressure?

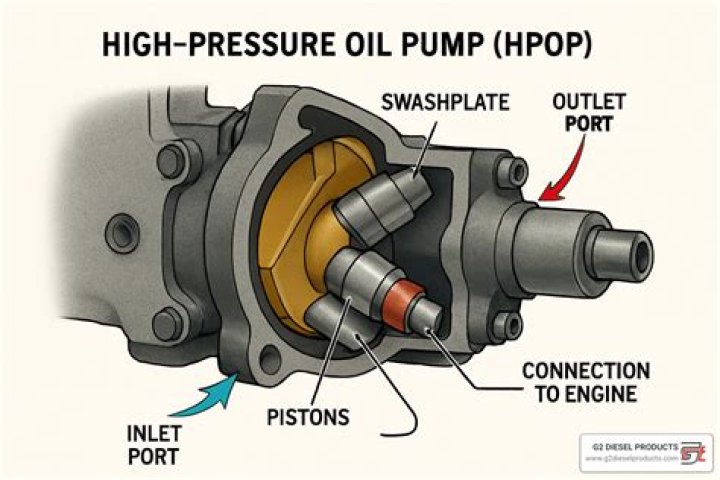

Fuel charging pressure to the H.E.U.I’s is at values between 30 psi (2 bar) and 60 psi (4 bar). Engine-lubricating oil is used as the hydraulic actuating medium for the H.E.U. I’s. The pressure is boosted to values of up to 4,000 psi (276 bar) by a swash plate-type hydraulic pump.

What does high pressure oil pump do?

The High Pressure Oil Pump (HPOP) delivers high pressure oil to the fuel injectors, which operate hydraulically.

Why is it called Diesel?

What is diesel fuel? Diesel fuel is the common term for the distillate fuel oil sold for use in motor vehicles that use the compression ignition engine named for its inventor, German engineer Rudolf Diesel. He patented his original design in 1892.

How do common rail injectors work?

Abstract: In the common rail system, fuel is distributed to the injectors from a high pressure accumulator, called the rail. The rail is fed by a high pressure fuel pump. The pressure in the rail, as well as the start and end of the signal that activates the injector for each cylinder are electronically controlled.

How does a piezo injector work?

Piezo fuel injectors (CRI4), which use piezo crystals as part of a rapid actuator, are helping manufacturers to meet their Euro 6 target. These injectors work by passing electrical current through a stack of Piezo crystals, causing them to expand; as the crystal discharges the current it contracts to the original size.

Does a heui pump need to be timed?

Getting the pump in can be difficult unless you don’t have an air compressor. Replace the oil supply line into the fitting. Get the gears to mesh with the gears in the front. These are not timed so you don’t have to worry about calibrating.

Is a CAT 3126 a good engine?

The 3126 Cat is a turbocharged 7.2L inline 6-cylinder diesel engine produced by Caterpillar and first introduced in 1997; it was the very first electronic mid-range diesel engine that Cat had produced. … However, if these engines are treated accordingly, they are in fact a very reliable.

What is a C7 Caterpillar engine?

The Caterpillar C7 engine is an line 6 cylinder diesel fueled engine with a displacement of 7.2 liters. The maximum heavy duty hp dry weight is 1,425 lbs., with an oil capacity of 4.75 gallons or 6.75 gallons with the deeper sump pump and oil pan. The cooling system and water pump allow up to 3.99 gallons.

What should fuel pressure be on a 6.0 Powerstroke?

Maintaining fuel pressure in a 6.0L Power Stroke diesel is as important to injector life as it is driveability. Fuel pressure must maintain or exceed 45 psi at all times, including under wide open throttle (WOT). The fuel filter housing on all 6.0L engines has a test port that is plugged from the factory.

How do I know if my 6.0 injectors are bad?

1. Trouble starting the vehicle or uneven idling. The engine cranks but doesn’t start unless you crank it for a long time. …
2. Misfire. …
3. Smell of fuel. …
4. Dirty emissions. …
5. Increased fuel consumption and poor miles per gallon.

How many injectors does a 6.0 have?

If the fuel injectors fit into this range we highly advise replacing all 8 injectors simultaneously to reduce labor cost and time. If a single high mileage injector fails, the remaining seven are likely close to a similar fate.

How do I know if my diesel injection pump is bad?

1. Engine may run roughly, or not at all.
2. Hard starting.
3. Engine misfires.
4. Lack of power.
5. Excessive smoke from the exhaust.

Why do high pressure fuel pumps fail?

Fuel contamination: Fuel is jeopardized from corrosion, debris and moisture, which can all bring visible contaminants into the tank. … Clogged strainers/filters: The aforementioned contaminants eventually clog critical components including strainers, filters and the fuel pump itself.

How do I know if my high pressure fuel pump is bad?

1. Delayed start of the engine.
2. Hesitation or sputtering in acceleration between 2000 RPM to 4000 RPM.
3. High engine temperatures.
4. Vehicle stalling due to exertion or temperature.
5. Fuel pressure gauge reading low measurements.
6. Poor gas mileage.

How much fuel pressure does a C15 cat have?

For the CAT® 3406E, C10-C13, C15, C16, and C18 engine to perform at peak efficiency, the fuel rail pressure must be adequate to completely fill the fuel injectors during the “Up” stroke of the plunger. A minimum of 115 PSI to an absolute maximum of no more that 120 PSI at “High Idle” is required.

What is the life expectancy of a 6.7 Powerstroke?

B10 life is the measure of life expectancy a component is designed to meet. Ford engineers designed and tested the Power Stroke® 6.7L V8 Turbo Diesel to over 500,000 simulated F-650/F-750 customer miles, giving the diesel engine a B10 design life of more than 500,000 miles5.

What powerstroke to avoid?

The 2003-2007 Ford Super Duty 6.0L may be the worst diesel truck of all time. The 6.0L Powerstroke is infamous. The engine is so bad that Ford and Powerstroke parent company Navistar were engaged in a serious legal battle.
