Similar to ODBC and JDBC, OData gives you a single way of accessing various data sources. Consumers of OData master one API and use it to consume multiple data sources. As a producer, OData relieves you from spending your resources to defining and maintaining data access and discovery API.

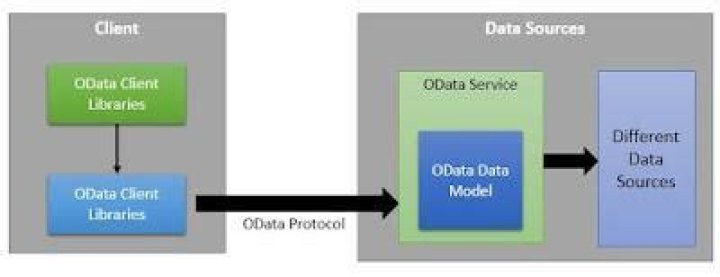

How does OData API work?

A REST-based protocol, OData builds on HTTP, AtomPub, and JSON using URIs to address and access data feed resources. It enables information to be accessed from a variety of sources including (but not limited to) relational databases, file systems, content management systems, and traditional Web sites.

What is OData in simple terms?

The simplest definition of OData would be that it is a standardized protocol built over existing HTTP and REST protocols supporting CRUD (Create, Read, Update, Delete) operations for creating and consuming data APIs.

How is OData service implemented?

1. Step 1 – SAP Netweaver Gateway Service Builder. …
2. Step 2 – Create project. …
3. Step 3 – Enter project details. …
4. Step 4 – Import DDIC structure. …
5. Step 5 – Enter structure details. …
6. Step 6 – View Properties. …
7. Step 7 – Create Entity Set. …
8. Step 8 – Alternate way to create Entity Set.

How can I get data from OData service?

1. Step 2: Provide the project name, description and package. …
2. Step 3: Our project looks as below.
3. Step 4: Now we need to build our Data model, first Create the Entity type by importing a DDIC Structure.

What does an OData service contain?

An OData Service—Simple OData services may consist of just a feed. More sophisticated services can have several feeds, and in that case it is useful to expose a service document that lists all the top-level feeds so clients can discover them and find out the addresses of each of them.

What is the difference between OData and JSON?

JSON API: One of many data formats that is often applied to REST. This data interchange can happen between two computers applications at different geographical locations or running within same hardware machine; OData: *A REST-based protocol for querying and updating data *. …

What are CRUD operations in OData?

The Open Data Protocol (OData) includes standard CRUD (Create, Retrieve, Update, and Delete) operations that map to the HTTP methods POST, GET, PUT/MERGE, and DELETE.

What is OData service in SAP?

OData is a Web protocol for querying and updating data, applying and building on Web technologies such as HTTP, Atom Publishing Protocol (AtomPub), and RSS (Really Simple Syndication) to provide access to information from a variety of applications.

What is MPC and DPC in OData?

both MPC and DPC get generated as runtime artifacts. MPC – This is used to define model. you can use the method Define to create entity, properties etc using code based implementation. you rarely use MPC extension class. DPC – used to code your CRUDQ methods as well as function import methods.

Article first time published on

How is OData implemented in SAPUI5?

1. Start the New Application Project wizard. In the SAP HANA studio’s Project Explorer view, choose New Other…
2. Select the application project. …
3. Define details of the new project. …
4. Define details of the new SAPUI5 application view and choose Finish.

What is OData Service document?

The service documents provide information about the types of data available via the REST service and about the URLs under which the data can be accessed. … ~/rest – exposes the service document. The document contains a list of all available object types and URLs under which objects of the type can be accessed.

What are the various operations that can be performed in OData?

The OData service interface has a fixed number of operations that have uniform meaning across all the resources it can act on. These operations are retrieve, create, update and delete and they map to the GET, POST, PUT/MERGE and DELETE HTTP methods.

How do I learn OData?

1. Provide the name of your project and a project with the following structure gets created.
2. Data Model: It contains three subfolders. …
3. Right-click on entity type folder and choose to create. …
4. Double click on properties, here we add the fields to our entity type.

Should I use OData?

OData helps you focus on your business logic while building RESTful APIs without having to worry about the various approaches to define request and response headers, status codes, HTTP methods, URL conventions, media types, payload formats, query options, etc.

What is the difference between OData and REST API?

The AtomPub protocol is one of the best examples of REST API design. So, in a sense you are right – the OData is just another REST API and each OData implementation is a REST-ful web service. The difference is that OData is a specific protocol; REST is architecture style and design pattern.

Is OData an XML?

OData supports two formats for representing the resources (Collections, Entries, Links, etc) it exposes: the XML-based Atom format and the JSON format.

What is the difference between OData and soap?

OData services are lightweight, with functionality often referenced directly in the URI. Whereas SOAP web services expose a WSDL document, OData web services expose an EDMX document containing metadata for all published web services.

Is JSON an OData?

OData supports the JSON format to make consuming OData services from Javascript applications simple since JSON can be easily be turned into JavaScript objects for programmatic manipulation using the Javascript eval( ) function.

What is EDM in OData?

OData metadata is composed of a type system called the Entity Data Model (EDM), consisting of EntitySets, Entities, ComplexTypes and Scalar Types. Any service can be queried for the metadata. The metadata will describe all the services exposed to the caller.

What is REST API in SAP OData?

API stands for Application Programming Interface, and comprises a set of standards that allow two applications to talk to each other. REST APIs are a certain pattern of building APIs. They are based on the HTTP protocol, sending and receiving JSON or XML data through URIs (uniform resource identifier).

How do I read OData metadata?

Add /$metadata to the URI in the address bar to view the metadata of the OData service. The metadata document displays the relevant information that the OData service provides for an OData client in a CSDL (Common Schema Definition Language).

How do I run OData service in SAP?

1. Step 1: Create an RFC destination. …
2. Step 2: Create a System Alias. …
3. Step 3: Generate OData Service in SAP NetWeaver Gateway. …
4. Step 5: Activate Service using /IWFND/MAINT_SERVICE. …
5. Step 6: Test the service.

Is OData a REST API?

OData (Open Data Protocol) is an OASIS standard that defines the best practice for building and consuming RESTful APIs. … OData RESTful APIs are easy to consume. The OData metadata, a machine-readable description of the data model of the APIs, enables the creation of powerful generic client proxies and tools.

How do I create a simple OData service in SAP?

1. Pre-requisites: …
2. Go-to t-code ‘SEGW’ -> click on icon ‘Create Project’
3. Enter details as shown in screen.
4. Click ‘ok’ icon, OData project gets created.
5. Now we need to create a “Entity-Type” which is meta structure to hold RFC table output. …
6. Redefine EntitySet method to consume RFC.

What is Patch in OData?

A PATCH request indicates a different update. The Gateway Service must replace exactly those property values that are specified in the request body. Missing properties, including dynamic properties, must not be altered. Note: the HTTP verb PATCH is treated equivalently to MERGE.

What is $expand in OData?

OData query option $expand is used to read multiple entities or entity sets in a single service call instead of two different calls. Prerequisite, entity sets which are used should be associated. To know about Association in OData service click here.

What is $batch in OData?

$Batch collects all fixed number of operations (retrieve, create, update, delete) of an OData service in one single HTTP post request.

Why OData is used in SAP?

OData is used to define best practices that are required to build and consume RESTful APIs. It helps you to find out changes, defining functions for reusable procedures and sending batch requests etc. OData provides facility for extension to fulfill any custom needs of your RESTful APIs.

What is SAP gateway service?

SAP Gateway, an integral part of SAP NetWeaver, lets you connect devices, environments, and platforms to SAP systems. It uses the Open Data Protocol (OData) so you can use any programming language or model to connect to SAP and non-SAP applications.

What is complex type in OData?

According to the OData v4 specification, a complex type can inherit from another complex type. (A complex type is a structured type without a key.) Web API OData 5.3 supports complex type inheritance. This topic shows how to build an entity data model (EDM) with complex inheritance types.
