As well, a slope of 4:12 is most commonly considered the lowest slope for “standard shingle installations”. Most manufacturer and industry recommendations require, or at the very least recommend, special underlayment or other considerations on roofs between 2:12 and 4:12.

Is a 4/12 roof steep?

OSHA defines a “steep roof” as any roof with a rise/run ratio over 4:12 (18.43 degrees). Architecturally described as a “dramatic pitch,” the extremely steep roof (ESR) is considered to have a pitch in excess of 12:12, up to a plumb vertical plane. …

How do you measure a 4/12 pitch roof?

On the roof, hold the level perfectly level, and measure the height from the roof to the level 12 inches away from where the level touches the surface; this will be the rise. For example, if the end of a level is 4″ above the roof at a point 12″ away from where it meets the surface, then the pitch is 4:12.

What is a 4x12 pitch?

A 4/12 roof pitch indicates the roof rises 4 inches in height for every 12 inches, as measured horizontally from the edge of the roof to the centerline.

What's the steepest roof pitch?

Steepest standard pitch A 9/12 roof pitch (36.37 degrees). is the steepest standard slope.

Are steep roofs better?

Fewer snow worries: Even without cold roof systems, a steep roof generally is better inside a snowy environment. … Ice will melt more easily on the steep slope and prevent the build-up of ice dams or patches which may force moisture down into the roof.

What angle do I cut for a 4 12 pitch?

Roof Pitch (slope)Roof Angle (degree)4:12 Pitch18.43°5:12 Pitch22.62°6:12 Pitch26.57°7:12 Pitch30.26°

What angle should a roof be?

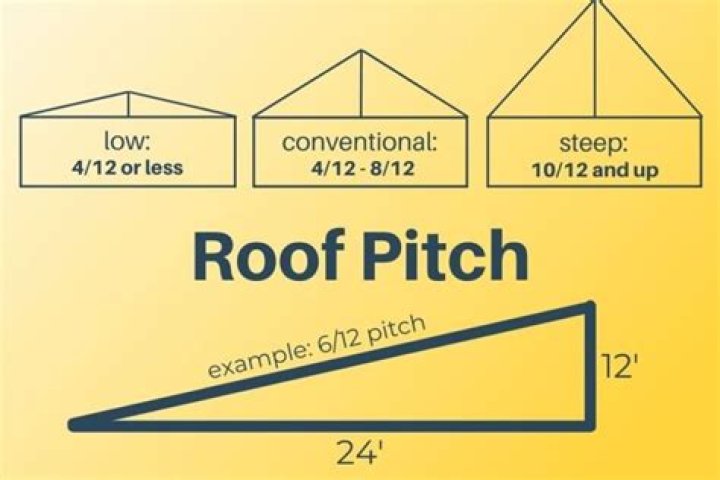

For most home styles, roof pitches fall in a range 4/12 (a moderate) slope up to 8/12 (fairly steep). Examples of extreme slopes range from 1/4:12 (almost flat) to 12/12 (sloping down at a perfect 45-degree angle).

What roof pitch is 20 degrees?

Convert Roof Slope from Degrees to Rise-in-Run18°3.899 in 1219°4.132 in 1220°4.368 in 1221°4.606 in 12

Is a 7/12 roof pitch walkable?

But the 7/12 roof pitch is the most common residential roof pitch in which roof rafter rises 7 inch for every 12 inches or 1 foot horizontal distance or run. 7/12 roof pitch step is enough to shed water quickly and also being non comfortable for walkable.

Article first time published on

How long is a 4/12 pitch roof?

4/12 or “4 in 12” roof pitch or slope, generally roof rafter length will be 15.81 feet or 4.82m long for 30 feet span.

What is the best roof pitch for snow?

Roofs in snowy climates should have a slope of at least a 10-degree pitch minimum. A steeper angled roof sheds the snow more quickly. While the angle of the roof helps shed snow, adding too many angles to the roof for a more aesthetic effect could cause structural problems with snow shedding in the wintertime.

What pitch Should a roof be UK?

A typical roof pitch in the UK for a traditional house will be 40°-50° but at the extreme can go up to 70° (above 70° would actually be called a wall!) Part of the choice of pitch is down to the architect and different period homes will have different pitches which are more “aesthetically pleasing” to the designer.

What degree is a 4 pitch roof?

Roofs with a pitch of 4/12 are approximately 18.4 degrees, depending on how exact you’d like to be in your measurement. Check out our roof angle chart for more examples of the exact angles (expressed in degrees) of common roof pitches.

Is a 5/12 roof steep?

The 5/12 or 5 on 12 roof pitch are most common types of residential roof pitch which are a sloping surfaces with an angle of usually 22.62° degrees steepness of a roof with it’s vertical rise of 5 inches over its 12″ or 1 foot horizontal distance or run in building construction.

What is the cut on the rafter that sits on the top of the wall?

What is a Birdsmouth joint or Cut? The Birdsmouth Joint (also called the birds beak cut or birds beak joint) is a small triangular shaped cut out at the base of a roofing joist that allows the joist to sit nicely on top of the wall plate (top of the wall before the roof starts).

Is Birdsmouth cut necessary?

A lot of force is transferred down the length of the rafter, and the seat cut on the birdsmouth transfers that force directly to the top plate. … In general, while the ripped-strip installation does eliminate the need to make two cuts for the birdsmouth, it’s debatable whether there are any real labor savings.

What is valley rafter?

Definition of valley rafter : the rafter running from the wall plate to the ridge and along the valley of a valley roof.

What size lumber are roof rafters?

You can use either 2×6 or 2×4 rafters for roofs with a 3/12 pitch or greater, but it depends on the overall size of your shed. For roofs that won’t experience heavy snow loads, a gable roof can span up to 22′ with 2×4 rafters.

How tall is a 4/12 truss?

A 4 / 12 pitched roof simply means that the roofline rises 4 feet in height for every 12 feet of depth. For example, if the peak of your roofline is 18 feet from the outer wall where it starts, and the wall as a 4 by 12 pitch, then that means that the roof would be 6 feet in height above where it started at the wall.

How much pitch do I need for a lean to roof?

Minimum Slope for Water Drainage Anything with a slope of some kind will cause water to run off the roof. However, an ideal roof drop per foot should be at least one-eighth to one-quarter of an inch per foot. Anything less than one-eighth of an inch may pool on the roof.

What is the disadvantages of a steep pitched roof?

Steep Roofing – Cons The biggest downside with this type of roof is that roofing materials can be harder to install compared to a low slope roof. Pitched design allows for less usable space inside a building.

Are steep roofs less likely to leak?

Fewer Leaks Because they’re so much steeper, rain doesn’t have the chance to create puddles. Instead, the water quickly runs off the roof and into gutters where it’s properly drained and isn’t given the chance to do damage to your home. This minimizes roof damage and leaks. … It’s just one more advantage to steep roofs.

Why do old houses have steep roofs?

Fewer snow worries: Even without a cold roof system, a steep roof is generally better in a snowy environment (which is why you see those dramatic A-frame homes in colder areas). … Ice melts more easily on a steep slope, preventing the build-up of ice patches or dams that can force moisture down into your roof.

Is a 3/12 roof pitch good?

Any roofs up to 3:12 are generally considered “low slope.” In the residential arena, we see lower slope roofs as part of the home’s architectural design. … Then, when you get into roofs of 3:12 or greater pitch, most other metal roofs can be used and that generally is the pitch requirement for asphalt shingles as well.

How do I calculate roof pitch?

1. First, you need to measure the run of your roof. …
2. Next, you need to figure out the rise. …
3. Now, divide the rise by the run. …
4. Then, divide 1 by your tangent.
5. Finally, multiply this result by 180/π and you’ve calculated your roof pitch!

What does a 2 12 roof pitch look like?

A 2/12 roof slope means your roof has 2 inches of vertical drop for every 12 inches of horizontal distance. Simply put, it’s a shallow roof. … A roof this shallow is likely to be found on a ranch house, a shed dormer or a porch.

What pitch should a flat roof be?

What Pitch is a Flat Roof? If flat roofs are to work well, they have to have a slope, known as a fall, to shed rainwater. The fall should never be less than 1:80 and preferably about 1:40.

Can a house have different roof pitches?

3. Unless you’re absolutely sure of the effect you’re after, avoid combining different roof pitches. More often than not, varied pitches look disorganized or, worse, like a construction error. Stick to a uniform pitch, and rely on the size and arrangement of roof masses for effect.

Why do roofers use couch cushions?

Here’s the basic answer from the mouth of a professional. Ken Cashion of Cashion Roofing wrote: “Roofers take all the discarded sofa cushions. They remove the covers and sit on the foam pad while roofing for cushioning, but it also reduces sliding on steep roofs.

Why are roof shingles gritty?

There’s a reason for this: During the shingle manufacturing process, before the asphalt has fully set, granules are adhered to the surface of the shingle, giving it this motley, rough appearance. These granules are typically made from minerals or mineral fibers, but some are also made from metals like copper.
