The thickness of a CPVC pipe wall is defined by the ASTM F441 Standard Specification for Chlorinated Poly(Vinyl Chloride) (CPVC) Plastic Pipe, Schedules 40 and 80, and is dependent on the outside diameter of a pipe. … Corzan® CPVC pipe and fittings are available in schedule 40 and schedule 80 nominal pipe sizes (NPS).

What schedule pipe is CPVC?

Industrial Schedule 40 CPVC Pipe.

What happens if I use PVC glue on CPVC?

When working with CPVC piping, use multipurpose PVC/CPVC glue or a CPVC glue; glue made specifically for PVC will not hold properly on CPVC and could lead to leaks or breakage. CPVC pipes can withstand hot water temperatures up to 180 degrees F.

Can you mix Schedule 40 and 80 CPVC?

All major brand PVC pipe is made to NPS (Nominal Pipe Size) standards, or “schedules.” Schedule 40 and 80 are the most common NPS schedules. The schedule determines how thick the wall of the pipe will be. … 80 PVC and sch.80 CPVC will fit together because they have the same ID and OD.

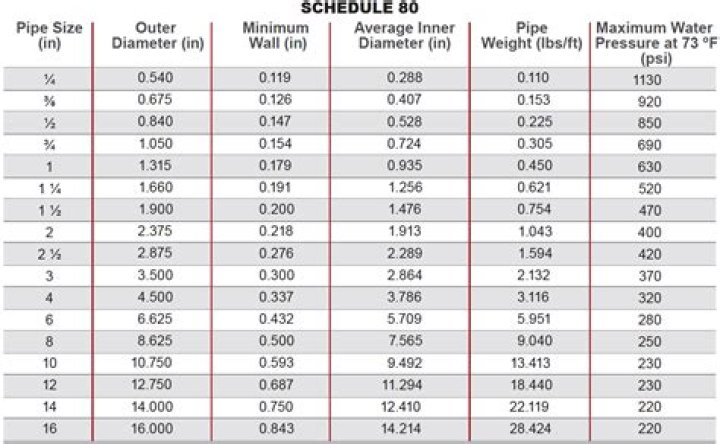

What is Schedule 80 CPVC?

Schedule 80 CPVC Pipe is produced from a specialty blend of CPVC material with unique physical properties desirable for process piping applications (i.e., improved impact resistance and fire resistance capabilities).

What color is schedule 80 CPVC pipe?

Often CTS CPVC is a light yellowish color, while schedule 80 CPVC (NPS) is a light gray color. PVC pipe and fittings usually comes in white or dark gray.

What is Schedule 80 CPVC pipe used for?

CPVC Pipe is used in corrosive resistant applications. Pipe ranges from 1/8” to 24” in size and can be used in applications reaching as high as 200°F. Pressure ratings change on the pipe with size, the schedule of the pipe and the temperature that the pipe will be under.

Is PVC and CPVC the same size?

No. CPVC is measured by O.D., which makes its sizing similar to hard copper. PVC is measured by I.D., which makes its sizing similar to iron pipe.

What is the difference between Schedule 40 and Schedule 80 CPVC?

Schedule 80 pipe is designed with a thicker wall. This means the pipe is thicker and stronger, and as a result it can handle higher pressures. … Schedule 40 PVC pipe is strong, rigid, and can handle pressure applications. For jobs that require a higher pressurization though, schedule 80 pipe is better suited.

Do you need purple primer on CPVC pipe?

Purple Primer can be used with all types, schedules and classes of PVC and CPVC pipe and fittings. A low VOC formulation. In most cases a successful solvent cement joint can be made without using a primer. But, if you want to increase the probability of making a successful joint, using a primer is the thing to do.

Article first time published on

Can you use oatey PVC cement on CPVC?

It is approved for Corzan® CPVC piping systems. Its medium body has excellent gap filling properties and is easy to apply. This orange, low VOC, fast set cement can be used to solvent weld all schedules and classes of CPVC pipe and fittings up to 6 in. diameter with interference fit.

Is Schedule 40 or Schedule 80 stronger?

Schedule 40 pipe has thinner walls, so it is best for applications involving relatively low water pressure. Schedule 80 pipe has thicker walls and is able to withstand higher PSI (pounds per square inch). This makes it ideal for industrial and chemical applications.

What color is CPVC glue?

CPVC cement is either yellow or orange, depending on the brand of pipe.

Do you use primer with CPVC glue?

Primer is needed to prepare the bonding area for the addition of cement and subsequent assembly. Use a proper applicator, such as a dauber, swab or paintbrush, approximately half the size of the pipe diameter. Apply the primer to the inside of the fitting socket and to the outiside of the pipe end.

Can I use Red Hot Blue glue on CPVC?

The introduction of granules or pellets of calcium hypochlorite wih PVC and CPVC solvent cements and primers (including their vapors) may result in a violent chemical reaction if a water solution is not used. … Christy’s Red Hot Blue Glue® Low VOC can be used for rigid and flexible PVC plastic pipe and fittings.

Is Schedule 80 CPVC IPS or CTS?

SCOPE. This specification outlines minimum manufacturing requirements for Chlorinated Polyviny Chloride (CPVC) Schedule 40 & Schedule 80 iron pipe size (IPS) pressure pipe. This pipe is intended for use in applications where the fluid conveyed does not exceed 200°F.

Is CPVC the same as CTS?

CTS stands for Copper Tube Sizing. This is different from other PVC or CPVC pipes, which commonly use NPS, or Nominal Pipe Size, dimensions. … CPVC CTS pipe is used for hot and cold water distribution in pressure systems that do not exceed 180 degrees Fahrenheit.

Are there Schedule 80 PVC fittings?

Schedule 80 fittings are manufactured up through 24”. Schedule 80 PVC fittings can handle up to 140 degrees F and can be used in a wide range of applications that may include very corrosive media. Most fittings are offered either socket or threaded.

Is CPVC pipe stronger than PVC?

While the added chlorine in CPVC increases its heat tolerance, it also changes the strength of the material. Both materials are very strong, but CPVC is harder than PVC, which makes it more prone to breaking. CPVC is more brittle than PVC and can be warped or cracked more easily, but it is also more flexible than PVC.

Can you use Schedule 80 PVC for hot water?

CPVC (schedule 80) pipe is rated for use up to 200 degrees Fahrenheit. This makes it ideal for use on hot water lines in homes and businesses.

What is CPVC vs PVC?

What are the differences between CPVC and PVC? The main difference between CPVC and PVC is the range of temperatures each is capable of withstanding. CPVC can handle temperatures up to 200° Fahrenheit, while PVC peaks at 140° Fahrenheit.

Is CPVC a class of PVC?

CPVC (chlorinated poly (vinyl chloride) is a strong and rigid thermoplastic material that is used for hot and cold potable water applications in residential construction. Because of its makeup, CPVC is immune to damage from highly chlorinated domestic water and has a higher temperature tolerance than PVC.

What size CPVC do I need?

¾” is usually the minimum size for the service and any main runs. ½” would be used for fixture branches. Static pressure is the same regardless of the pipe size.

Are there different grades of CPVC?

ASTM F441 is the Standard Specification for CPVC Plastic Pipe, Schedules 40 and 80. Per the standard’s requirements and test methods, CPVC is assessed for “materials, workmanship, dimensions, sustained pressure, burst pressure, flattening and extrusion quality.” Another set of CPVC standards is defined by ASTM D1784.

Is GREY PVC the same as white PVC?

PVC pipe that is used for plumbing is usually white while electrical conduit PVC is usually gray. These are the standard colors, but you can find PVC that has had chemical additives added during the manufacturing process to create different colored pipes.

Can GREY PVC be glued to white PVC?

White (water) PVC is pressure rated and gray (Electrical) PVC is not. White PVC is softer than Gray so it bends easier. Gray uses the single step clear PVC cement won’t leave blue or read stains as many times it’s in the open and can be seen. (Note you can use the clear cement on white for non pressure uses.)

Which PVC pipe is best for plumbing?

• Schedule 40 PVC is the most commonly used, having thinner walls and a lower price.
• Schedule 80 PVC has thicker walls, making it more durable but also more expensive.

Is CPVC the same as Schedule 40?

CPVC was designed as a replacement for copper plumbing tubing, with a water-potable and less-expensive plastic solution. … Since CPVC pipe uses a different measurement system and is smaller than their Schedule 40 counterparts, it is not compatible with FORMUFIT fittings and accessories.

Can you use CPVC fitting on PVC?

A: Yes. CPVC solvent cement technically will work on PVC piping. However, we recommend that the correct Weld-On primer and PVC solvent cement for the particular application should be used. Please note that PVC solvent cement, because of temperature limitations, is not recommended for CPVC piping.

Is PEX the same size as CPVC?

CPVC Pipes Offer Better Water Pressure Than PEX With PEX, the pipe fits around the outside of the fitting so the internal diameter of the pipe is reduced at each fitting—even when “full flow” expansion fittings are used. Depending on the fitting used, this can reduce the internal diameter of a ½” pipe by 21% to 35%.

Should I use Teflon tape on CPVC fittings?

Degreasing solvents should never be used to clean CPVC threads. TFE (Teflon®) thread tape is always safe for making CPVC threaded connections. Some paste-type sealants contain solvents that may be damaging to CPVC.
