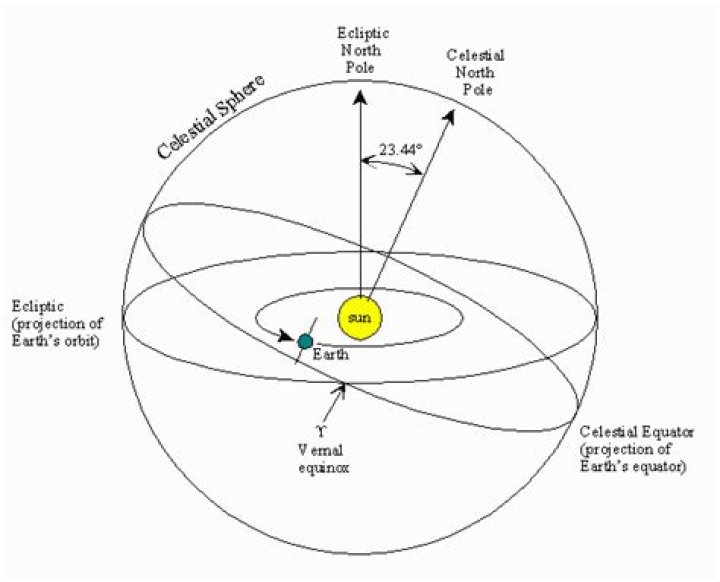

The Ecliptic is not the same as the celestial equator. It is tilted at 23.5 degrees to the equator, the tilt, or “OBLIQUITY

What is the difference between the celestial equator and the ecliptic?

The Celestial Equator is the intersection of the Earth’s equatorial plane with the celestial sphere, and it is a great circle on the celestial sphere. The ecliptic is the intersection of the plane of the ecliptic with the celestial sphere, and it is a great circle on the celestial sphere.

What is the relationship between ecliptic and the celestial equator?

The celestial equator is the enlargement of the earth’s equator to the celestial sphere. Therefore, the celestial equator can be represented by a line fixed on the celestial sphere. The ecliptic is a line connecting where the sun is located in the celestial globe for one year.

Why is the path of the ecliptic and celestial equator not the same?

The apparent yearly path of the Sun through the stars is called the ecliptic. This circular path is tilted 23.5 degrees with respect to the celestial equator because the Earth’s rotation axis is tilted by 23.5 degrees with respect to its orbital plane.

Is the ecliptic parallel to the celestial equator?

Because the rotation axis of the Earth (which defines the celestial sphere) is tilted at an angle with respect to the plane of the Earth’s orbit, the ecliptic is inclined at an angle to the celestial equator.

Is the ecliptic the equator?

The ecliptic. The ecliptic crosses the celestial equator at two points, located in the constellations of Aries and Libra. As a result, twice a year the Sun has a declination of zero. The first point of aries, ♈, is defined as the point where the Sun crosses the celestial equator from south to north.

Is equator and celestial equator same?

The celestial equator is the great circle of the imaginary celestial sphere on the same plane as the equator of Earth. This plane of reference bases the equatorial coordinate system. In other words, the celestial equator is an abstract projection of the terrestrial equator into outer space.

Where is the ecliptic on the celestial sphere?

The ecliptic is the region of sky (region of the celestial sphere) through which the Sun appears to move over the course of a year. This apparent motion is caused by the Earth’s orbit around the Sun, so the ecliptic corresponds to the projection of the Earth’s orbital plane on the celestial sphere.

What is the celestial ecliptic?

ecliptic, in astronomy, the great circle that is the apparent path of the Sun among the constellations in the course of a year; from another viewpoint, the projection on the celestial sphere of the orbit of Earth around the Sun. The constellations of the zodiac are arranged along the ecliptic.

Is the celestial equator the same as the horizon?

Celestial equator always intercepts horizon at exactly East and exactly West points. Angle celestial equator (and any star path) makes with respect to the horizon = 90 minus the observer’s latitude. Stars move parallel to the celestial equator. Circumpolar object’s distance from celestial pole = observer’s latitude.

Article first time published on

How do you find the celestial equator?

Note also that the celestial equator always intersects the horizon exactly at East and West, wherever you are. To find the celestial equator, find the pole first. Look 90° one way, then the other, these are East and West. Then turn round through 180° so you’re facing the opposite way.

What is the celestial equator quizlet?

The celestial equator is an imaginary plane that divides the celestial sphere into North and Southern hemispheres.

Why is it called ecliptic?

The ecliptic got its name because the ancients saw that solar eclipses happen when the moon crosses the ecliptic during the new moon phase. Later, astronomers gave the name node to the places where the moon crosses the ecliptic.

At what angle is the ecliptic tilted with respect to the celestial equator What is the physical reason for this angle?

The apparent yearly path of the Sun through the stars is called the ecliptic. This circular path is tilted 23.5 degrees with respect to the celestial equator because the Earth’s rotation axis is tilted by 23.5 degrees with respect to its orbital plane.

What is the point on the celestial sphere where the ecliptic crosses from below to above the celestial equator called?

The points where the ecliptic crosses the celestial equator are the vernal and autumnal equinox’s. The point were the Sun is highest in the northern hemisphere is called the summer solstice.

Which of the following best defines the celestial equator?

celestial equator is the great circle in which the plane of the terrestrial Equator intersects the celestial sphere; it consequently is equidistant from the celestial poles. When the Sun lies in its plane, day and night are everywhere of equal length, a twice-per-year occurrence known…

How is the celestial equator related to the earth's equator?

The plane of the celestial equator is the same as the plane of the Earth’s equator. The north and south celestial poles are at the intersection of the celestial sphere with the extension of the Earth’s axis of rotation. If you were at the Earth’s equator, the celestial equator would pass through your zenith.

What star is on the celestial equator?

Look east in mid-evening in November for the constellation Orion the Hunter. The 3 stars at the midsection of the Hunter are known as Orion’s Belt. The star Mintaka lies on the celestial equator, a line around the entire sky, above Earth’s equator. Hence the legend of Orion’s Belt as a celestial bridge.

What is meant by the ecliptic quizlet?

What is the ecliptic? The path along which the Sun, stars, moon and planets move slowly eastward on the celestial sphere. … law of areas: an imaginary line, the radius vector, connects the planet to the sun and sweeps out equal areas in equal times as the planet orbits.

What is the definition of ecliptic quizlet?

The ecliptic is the Sun’s annual path around the celestial sphere. This occurs because Earth’s rotation axis is tilted away from a line perpendicular to the ecliptic.

Why is the celestial sphere tilted?

Because the rotation axis of the Earth (which defines the celestial sphere) is tilted at an angle with respect to the plane of the Earth’s orbit, the ecliptic is inclined at an angle to the celestial equator. The angle is known as the obliquity of the ecliptic and is currently about 23°27´.
