Like hollow metal drywall frames, Timely frames are installed in walls constructed with either wood stud or steel stud framing but are installed AFTER the the drywall is applied and painted. … No Painting = Time and Money Saved!

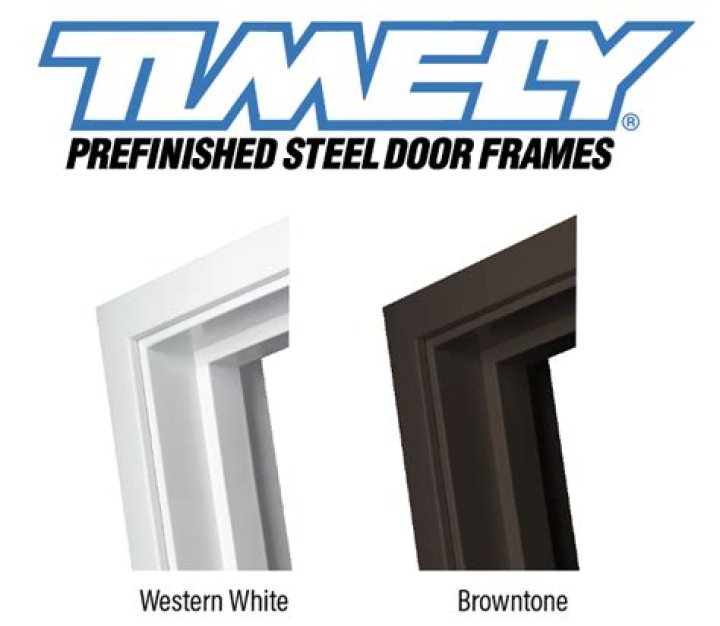

What is timely frame?

Like hollow metal drywall frames, Timely frames are installed in walls constructed with either wood stud or steel stud framing but are installed AFTER the the drywall is applied and painted. … No Painting = Time and Money Saved!

What are the types of door frames?

• Inward Opening Door Frames And Outward Opening Door Frames. …
• Open Door Frame. …
• Closed Door Frame. …
• Door Frame with Glazing Panels: …
• Pocket Door Frame: …
• Fanlight Door Frame. …
• Sidelight Door Frame.

Are timely frames hollow metal?

PERFORMANCE: Timely 20 gauge steel frames have been tested and proven to outperform 16 gauge hollow metal frames.

What are timely frames made of?

An Array of Design Options The remarkably versatile Timely line features distinctive door frame casing profiles in Steel and Aluminum.

What is a knock down frame?

Knock-down frames – also known as after-set drywall frames – are meant to be installed after the stud wall has been built and drywall applied. This type of frame comes in three pieces: the hinge jamb, the strike jamb, and the head. … This will tighten the frame head against the jambs, completing the installation process.

Are timely frames fire rated?

Timely’s fire rated Metal “U” Insert is recomended for masonry installations. If wood sub-frame is used in place of Metal “U” Insert, it will be necessary to use fire rated drywall on both sides of wood to maintain fire rating. 5. Wood or Aluminum casing does not affect ratings on door frames.

How do I choose a door frame?

1. Ensure your door frames are tied to the brickwork during building work with adequately spaced ties on each side. 2. Door frames must be built in plumb and square with a pre-stressed lintel overhead to bear the weight of the bricks.

What is door casing?

Interior door casing is the term used to describe the trim found around a door opening. … Basic doorway casings are made up of just three separate pieces – two long trim pieces on either side of the door frame topped with a shorter piece (the head casing) to complete the frame.

Which type of door frame is best?

Aluminum makes for an excellent door frame material. It is durable, resists the elements, and it is light enough to use as a sliding or swinging door. With modern advancements, it is even more energy efficient than aluminum door systems in the past.

Article first time published on

What is a door frame called?

A door jamb is an individual section of a door frame. Two side jambs make up the vertical components of the door frame and the head jamb is the top horizontal component. Together, the jambs (along with mullion) comprise the door frame.

What is punch and dimple door frame?

These anchors are often referred to as “Punch & Dimple” frame anchors. A tube and strap channel is usually welded to the frame where it has been punched and dimpled in the soffit to receive expansion bolts. These expansion bolts are installed in the existing block through the tube and strap channels.

Can Knockdown frames be fire rated?

Answer: Yes, most knock down frames (with no welding option on a pressed steel frame) can be fire rated up to 90 minutes provided they are installed correctly in a fire rated partition.

What is a slip-on door frame?

Resolution: Drywall Slip-on Frame is an industry term describing a 3 sided frame designed to be installed on a wall composed of steel or wood studs with gypsum board or other facing material and is installed after the wall is erected and finished (painted, wall papered, etc….)

What are the parts of a door frame?

• Door frame. The door frame is the entire framework supporting the door, including the sill, jamb and head. …
• Sill. The door sill is the very bottom part of the door frame that rests on the floor.
• Jamb/door jam. …
• Head. …
• Panel. …
• Astragal. …
• Fixed panel. …
• Door sweep.

Which wood is best for door frame?

Sal wood: The Sal wood is considered to be one of the most strongest as well as heaviest type of wooden material that can be used for creating doors and window frames. It is around 50% on the harder part and 30% on the heavier part thus making it the strongest when compared to teak wood.

Are MDF door frames any good?

Generally speaking, timber is seen as a strong, sturdy material whilst MDF is the cheap and weak alternative. … However, advancements in technology mean that MDF is becoming a “solid” contender amongst doorframe manufacturing, making it a reliable and cost-effective alternative to its natural wood counterpart.

What wood do you use for a door frame?

The wood types generally used for door frames of doors other than the main door are: Pine. Cedar. Alternatives of solid wood like MDF (Medium Density Fiberboard)

What material is best for front door?

A steel door is your best bet if security and durability are top priorities. Steel units are stronger than wood or fiberglass doors, and they won’t crack or warp. Any dents or dings on these doors can be pulled and puttied with an auto-body repair kit.

Which door frame is better for bathroom?

Aluminium doors are the best for bathrooms. Although wooden doors and steel doors look quite elegant and great, they are not as practical as their aluminium counterparts.

What is MDF door?

MDF doors are made from an engineered wood product called medium density fiberboard and are used in paint-grade applications. These doors are considered a higher quality than molded doors and can be produced in pieces for true stile and rail construction, either as an entire MDF door or in concert with wood.

What is the difference between a door jamb and a door frame?

A jamb is the flat surface that runs vertically up either side of the door frame. … This is where the hinges are placed to hang the door, as well as the striker plate on the opposite door jamb which helps you to open, close and lock your door. The door frame is all the elements combined.

What is the frame around an exterior door called?

The frame (sometimes called a jamb) is made up of three separate pieces and surrounds the door creating a “frame” in which the door can sit. The two vertical frames are called side jambs, and the horizontal frame is referred to as the head jamb.

Why does a door need a frame?

The primary purpose of the door jambs, and the door frame as a whole, is to provide a lasting support for the door. When hung, the door relies on this framing. The door jambs and other components of the frame are installed with care to ensure that the door hangs level to the floor.

What is an Ewa anchor?

Existing Wall Anchors (EWA) Inside the frame throat is a metal piece, which acts as reinforcement and guide (for the fastener) as the frame is secured in place. This metal piece can be supplied loose (snap-in type) or welded to the back of the frame throat.

Can you use drywall anchors in hollow doors?

Hollow door and drywall anchors (25-Pack) are ideal for use in hollow core doors and drywall. They offer a holding strength of up to 40 lb. … No pre-drilling is necessary in drywall – anchors screw directly into wall and will not break if they hit a stud. Use only a #2 Phillips screwdriver.

Do fire rated frames have to be welded?

Standard KD frames are assembled in the field and installed in new wall construction. … Field welding of standard KD frames may be possible for new wall construction or existing walls at butted applications. However, field welding is usually not required and may void the fire rating, if any.

Are hollow metal frames fire rated?

Hollow metal is probably the most known and widely used fire rated framing around. It is tested to NFPA 80/252/257 up to 90 minutes and used in fire rated doors, sidelites, transoms and openings.

What is a drywall frame?

Drywall framing is a specialized construction technique used to prepare a wall for installing drywall, or gypsum board. Because drywall sheets are manufactured to a universal size, all framing on which these boards, or sheets, will be installed must comply with specific dimensions.

How do compression anchors work?

Compression anchors are designed to work with a knock down frame. These anchors work using a tensioning system to compress the frame against the drywall after the frame is installed. Stud anchors are long lag bolts designed to go through the inside of the door frame and bolt into the stud beneath.

How do you measure a knockdown door frame?

To determine the rough opening size for a three-sided knock-down door frame, measure the height and width of the door opening. The rough width will be 2 inches larger than the door opening. For a 2-inch face, the rough height will be 1 inch larger than the door opening. Contact LaForce for openings with a 4-inch face.
