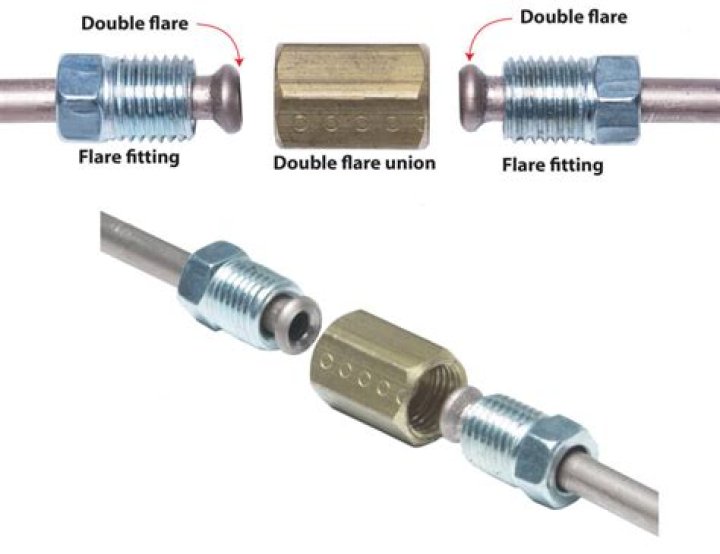

Unions are used to join two brake, fuel, or transmission lines together. This may be needed, for example, in long runs from the dual master cylinder to the rear axle. Match the thread and flare type to the lines being connected. … Use for joining 3/16″ British brake lines.

Are brake line unions legal?

Contrary to popular belief it is NOT illegal to make a new section of brake line and splice it into a non-rusted section of your old brake, as long as you use automotive grade SAE double/inverted flare, SAE “bubble” flare and DIN Single Mushroom flare unions and fittings.

What are the two types of brake line fittings?

There are two basic types of flares used on OEM automotive brake systems throughout the world. The SAE/double (inverted/45degree) flare and the DIN/ISO bubble flare. We will refer to them as SAE or DIN flare.

Can you use a compression union on brake lines?

Despite this, many people choose to try brake line compression fittings for line repairs. Compression fittings are used to join two pieces of brake line together. … You cannot, under any circumstances, use compression fittings to repair the lines on a public transportation vehicle.

Is cutting brake lines illegal?

From what you have written in the fact pattern of your question, the possible criminal charge against the person who purposefully cut the brake lines of another person’s vehicle with the intent to cause harm where the driver or some passenger of the car dies, would be murder.

Can you replace a section of brake line?

Brake lines aren’t routed the same way in all vehicles. However, replacing your brake line is usually a quick process. With a professional mechanic, it takes about one to two hours. Your mechanic will have to remove the old brake line and put in a new one, or splice the bad section and replace it.

How much is a brake line kit?

Typically, you can expect to spend between $75 and $175 for a new line kit.

Can I splice a brake line?

Brake lines suffer impact breakage and corrosion over time and need to be replaced. Some occasions call for replacing just a section of brake line rather than the entire length. Joining two brake lines together with a new spliced section can be accomplished with a few specialty tools and some basic steps.

How much pressure is in a brake line?

Most of the metal brake lines burst around 15,000 psi. The typical full-lock operating pressures are 900–1,000psi (69 bar) with manual brakes and 1,400-pluspsi ( 96 bar) with power-assisted brakes.

Are brake line fittings NPT?

National Pipe Thread is a tapered machine thread for threaded pipes and fittings . NPT threads can be referred to as “Male pipe thread” or “Female pipe thread”. … We use these in the Street Rod and Racing industries for fluid fittings such as oil lines, brake lines, and coolant lines.

Article first time published on

Do brake lines need to be double flared?

All brake lines need to be double flared, due to the high hydraulic pressure. If your brakes leak or the hoses crack, it could prove to be fatal. Single flared lines are suitable for low-pressure lines in other applications, but not your vehicle’s brakes.

What degree are brake line flares?

The 45-degree inverted flare is the most common style of flare used in automotive hard lines like brake, fuel, and transmission fluid transfer.

Can you tell if someone cut your brake line?

If the line has been cut, it will be apparent. With a single cut brake line, all the fluid Will drain out and you’ll have no brakes. If you put your foot on the pedal and it goes to the floor something is wrong. It could be you just have a leaking break cylinder.

Is cutting a brake line attempted murder?

Yes. A cut brake line was a favorite attempted murder mechanism in American television throughout 80’s and 90’s. It still shows up today, although not as frequently as it used to.

Can someone tamper with your car brakes?

Nobody should tamper with anyone’s vehicle brakes. Giving information on how to do it is equally despicable. Fortunately, most modern cars and trucks have onboard diagnostics that will warn the driver of a potential brake problem if the hydraulic system has been compromised.

What causes brake lines to break?

A car’s brake lines are needed to carry brake fluid to the brake pads at the car’s wheels. Brake lines can break when they become weakened due to corrosion or rust, or from impact, such as in a car crash.

How much does it cost to replace all 4 brake lines?

Complete bake line replacement includes removing all four existing brake lines and replacing with new lines. The cost to replace all brake lines ranges from $1000 to $2000 depending on the make and model of the vehicle.

How often do brake lines need to be replaced?

How Frequently Will I Need Brake Hose Replacements? Usually, a brake hose will last up to six years.

What happens if a brake line breaks?

When a brake line breaks, the fluid leaks out and the lack of pressure means it can’t reach the calipers. Although your brake warning light will probably come on, you’ll know when it happens because you’ll suddenly lose the ability to stop or slow down.

Can you patch a leaking brake line?

Car owners who have a brake leak might want a brake line repair how to in order to reduce some of the damage that a brake leak can cause. … You can either buy a kit specifically for your brake leak or you can rebuild different parts of the brake line like the master cylinder.

Can brake lines rust out?

It is very easy for rust to build-up along with brakes not only because they are made from steel but more-so because of the combination of steel and the moisture-retaining, dark, and humid location of your car’s brakes.

Are copper brake lines OK?

While steel lacks inherent rust and corrosion resistance, brake lines made from nickel-copper alloy offer that protection in spades. Made from a mix of around 90-percent copper and 10-percent nickel for added strength, nickel-copper brake lines are practically impervious to rust and highly resistant against corrosion.

Are brake lines pressurized?

Typical brake line pressures during a stop range from less than 800psi under “normal” conditions, to as much as 2000psi in a maximum effort.

How hard do F1 drivers brake?

At the Marina Bay Street Circuit, for example – venue for the Singapore Grand Prix – an F1 car will produce braking forces of -4.98G into Turn 7 – the highest braking ‘moment’ of the F1 season. … On each occasion, drivers will have to push the brake pedal with more than 150kg of force.

What do brake lines connect to?

Brake lines connect the actuation device such as the brake master cylinder to the hydraulic components of the wheel brake. Brake hoses are used as flexible connecting pipes in all moving areas between the body and chassis.

Should you use Teflon tape on brake line fittings?

No. You cannot safely, nor should you attempt to use Teflon tape on brake lines. A brake system should not rely on anything to stop a leak. The system relies on pushing a solvent under high pressure in a closed system for safe operation, and Teflon tape will threaten the integrity of that system.

Can I use a double flare instead of a bubble flare?

Can you use a bubble flare instead of a double flare? The simple answer is no. The line and port are completely different and will not come close to sealing. When doing brake lines, you need to determine what type of flare you need for your car.

Is inverted flare the same as double flare?

The first is the inverted double flare, used by most domestic production cars and trucks. … It uses a 45* double flare to seal, which has tubing that is folded over into itself before flaring outward. The double flare is used for installations that require repeated tightening/untightening.

Why are some brake lines coiled?

Brake lines are coiled to prevent breaking from fatigue due to moving parts. The mounting points on components which move relatively to each other due to movement from vibration, heat, etc. need to have some relief, as in a coil or flexible line.

What are brake line fittings called?

Brake Line Fittings are sometimes called tube nuts or flare fittings.

Are all brake line fittings the same?

There are two basic sizes of brake lines. The smaller size is 3/16″/4.75mm brake line, CNF-3; and the larger size is 1/4″ CNF-4. 3/16″ is found on virtually all cars and trucks made in the world.
