The circles are widely used in design and drawings. The circle command is used to draw a circle by specifying the center point and radius. … Specify the radius of the circle. Or. To specify diameter, type D – press Enter – specify the diameter of the circle.

How do I draw a circle in AutoCAD?

1. Do one of the following: Click Home tab Draw panel Circle drop-down Center, Radius. Find. Click Home tab Draw panel Circle drop-down Center, Diameter. Find.
2. Specify the center point.
3. Specify the radius or diameter.

What is shape in AutoCAD?

Shape Name. Specifies a shape (SHX file) to insert. If a shape belongs to an external reference (xref) attached to the current drawing, the shape file is identified as externally dependent. Externally dependent shapes cannot be used in the current drawing unless they are reloaded.

What is the function of circle tool?

The Circle tool is used to draw circles of various sizes.

What is the red circle in AutoCAD?

The red circles are indicating that there are wall clean up issues. They should already be non-plotting by default, you can check this or turn them off completely by going into the display properties for the walls.

How many ways can you draw a circle in AutoCAD?

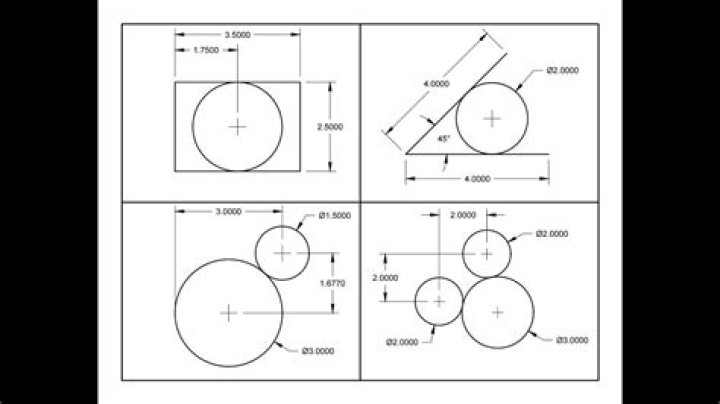

The Circle Command gives you several ways to make circles. In this exercise, you’ll see how to draw circles using the Center, Radius method, 2-Point method, Tan, Tan, Radius method, and finally Tan, Tan, Tan.

How do I draw a circle in a triangle in AutoCAD?

1. Click Drafting tab > Draw panel > Rectangle drop-down > Polygon.
2. At the Command prompt, enter the number of sides.
3. Specify the center of the polygon.
4. Enter i to specify a polygon inscribed within a circle of specified points.
5. Enter the radius length.

What instruments make a circle?

compass is traditional tool for drawing circles A compass is the traditional tool for drawing precise circles, and its sharp point acts as a pivot. A pencil is attached to the other end. To set the compass to the desired radius, use a ruler to adjust the two end points to the desired length.

How do you use a circle tool?

The Circle tool lets you draw circles. To use the tool, click on the Circle tool icon , then click and hold down your mouse button to draw the shape. Hold down the CTRL key on your keyboard to draw a perfect circle.

How do I draw shapes in AutoCAD?

1. Draw any object or set of objects that you want to turn into a shape.
2. Go to Express Tools tab> Tools (expanded — click the down arrow)> Make Shape or simply type mkshape.
3. The MKSHAPE – Select Shape File dialog box opens. …
4. In the File Name text box type a name for your shape file and click Save.

Article first time published on

How do you draw shapes in AutoCAD?

1. Click Home tab > Draw panel > Rectangle. Find.
2. Specify the first corner of the rectangle.
3. Enter A for Area.
4. Enter the area.
5. Do one of the following: Enter L to enter the length. The width is calculated based on the length and the area. Enter W to enter the width. …
6. Enter the value for the length or width.

How do I open a shape in AutoCAD?

Launch AutoCAD, click in the “Command” bar at the bottom of the window, type “Compile,” then press the “Enter” key. AutoCAD will open up a file browsing window. Navigate to your SHP file, and double-click to select it. Click “OK.” AutoCAD will compile the shapefile into an SHX file.

What is Regen in AutoCAD?

REGEN regenerates the drawing with the following effects: Recomputes the locations and visibility for all objects in the current viewport. … Resets the overall area available for realtime panning and zooming in the current viewport.

How do you hatch in AutoCAD?

1. Click Home tab > Draw panel > Hatch. …
2. On the Properties panel Hatch Type list, select the type of hatch that you want to use. …
3. On the Pattern panel, select a hatch pattern, such as ANSI31.
4. On the Boundaries panel, click Pick Points. …
5. Click inside the circle, rectangle, and the triangle.

What are commands in AutoCAD?

• L. It can be used for making simple lines in the drawing.
• C. It is the command used for making a circle in AutoCAD.
• PL. This command can be used to make a Polyline in your drawing.
• REC. This command will make a rectangle in AutoCAD.
• POL. …
• ARC. …
• ELLIPSE. …
• REG.

How do you draw a hexagon shape in AutoCAD?

The simplest way to draw a hexagon in AutoCAD is to use the polygon tool, entering six as the number of sides. If you know the radius you’d like to use, then you can choose to size the polygon from the center. You can then choose if you want the hexagon inscribed within the radius, or circumscribed outside the radius.

How do I move a circle in AutoCAD?

1. Click Home tab Modify panel Move. Find.
2. Select the objects to move and press Enter.
3. Specify a base point for the move.
4. Specify a second point. The objects you selected are moved to a new location determined by the distance and direction between the first and second points.

How many workspaces are available in AutoCAD?

How many workspaces are available in AutoCAD? Explanation: There are three workspaces available to switch between in AutoCAD. These are drafting and annotation, 3D basics and 3D modelling.

What are the six different options for creating a circle?

To create circles, you can specify various combinations of center, radius, diameter, points on the circumference, and points on other objects.

What is the pencil tool?

The Pencil tool is used to draw free hand lines with a hard edge. The pencil and paintbrush are similar tools. The main difference between the two tools is that although both use the same type of brush, the pencil tool will not produce fuzzy edges, even with a very fuzzy brush.

How do you add shapes to Medibang?

1. ① The Fill Tool can be used to create the following shapes: Rectangle, Ellipse, and. …
2. You only need to drag to create the Rectangle and Ellipse shapes.
3. Polygon shapes can be created with a series of clicks.
4. ② The opacity of shapes can also be selected.

What is the circle shape?

A circle is a round shaped figure that has no corners or edges. In geometry, a circle can be defined as a closed, two-dimensional curved shape. A few things around us that are circular in shape are a car tire, a wall clock that tells time, and a lollipop. Center of a Circle.

Which is the most common tool used for drawing circles?

Which is the most common tool used for drawing circles? Explanation: Compass is used to draw circles. Its design is similar to the divider, except in compass there is a provision for the attachment of pencil or lead in one of the legs of the compass.

How do we name a circle?

A circle is named by its center. Thus, the circle to the right is called circle A since its center is at point A. Some real world examples of a circle are a wheel, a dinner plate and (the surface of) a coin. The distance across a circle through the center is called the diameter.

How do you scribe a circle on metal?

Spring dividers – Used to help scribe an arc or a circle on material. They have two legs and look similar to a compass. One of the legs is firmly placed on the material while the other leg is rotated, scribing a circle or arc onto the workpiece.

How do I draw a line shape in AutoCAD?

1. Click Home tab Modify panel Edit Polyline. Find.
2. Select a polyline, spline, line, or arc to edit. …
3. Enter j (Join).
4. Select one or more polylines, splines, lines, or arcs that are located end to end.
5. Press Enter to end the command.

How do you shape text in AutoCAD?

1. Open your AutoCAD project and click “Express Tools” in the menu.
2. Click the “Modify Text” drop-down menu in the toolbar and select “Explode.”
3. Click the text that you want to change into polylines. …
4. Press “Enter” on your keyboard to convert the text to polylines.

How do you make a polyline shape in AutoCAD?

1. Click Home tab Draw panel Polyline. …
2. Specify the first point of the polyline.
3. Specify the endpoint of the first segment.
4. Switch to Arc mode by entering a (Arc) at the Command prompt.
5. Return to Line mode by entering L (Line).
6. Specify additional segments as needed.

What is F3 in AutoCAD?

F3. This command automatically activates the O snap feature of AutoCAD. O Snap feature of this software helps to draw your drawing accurately. This will allow you to snap at the specific location of your object while you are picking any point.

What is polygon in AutoCAD?

A polygon is a figure formed by the finite number of line segments connected to form a closed circuit. … The polygon command is used to create polygons in AutoCAD. We need to specify the number of sides to create a polygon.

What are the tools in AutoCAD?

• Line.
• Circle.
• Rectangle.
• Polyline.
• Trim.
• Extend.
• Copy.
• Mirror.
