Fish tape is a tool used by electricians primarily for pulling electrical or other wires through conduits. It’s also used for pulling NM wire through walls, ceilings, floors, and other enclosed spaces. The fish tape itself is a long, stiff, flat steel wire.

What is the function of fish tape?

A fish tape (also called a draw wire, draw tape, or an electrician’s snake) is a tool used by electricians to route new wiring through walls and electrical conduit.

What is the meaning of fish tape?

Definition of fish tape : a flat tempered spring-steel tape or wire used in pulling electric wire and cables (as into conduit runs) — called also snake wire.

What is fish tape pliers?

Klein Tools’ fish tape pulling pliers feature a built-in channel to pull steel fish tapes without damaging the wire. The pliers come in various handle options so professionals can choose what is comfortable for them and feature greater cutting and gripping power than standard pliers.

Why is it called fish tape?

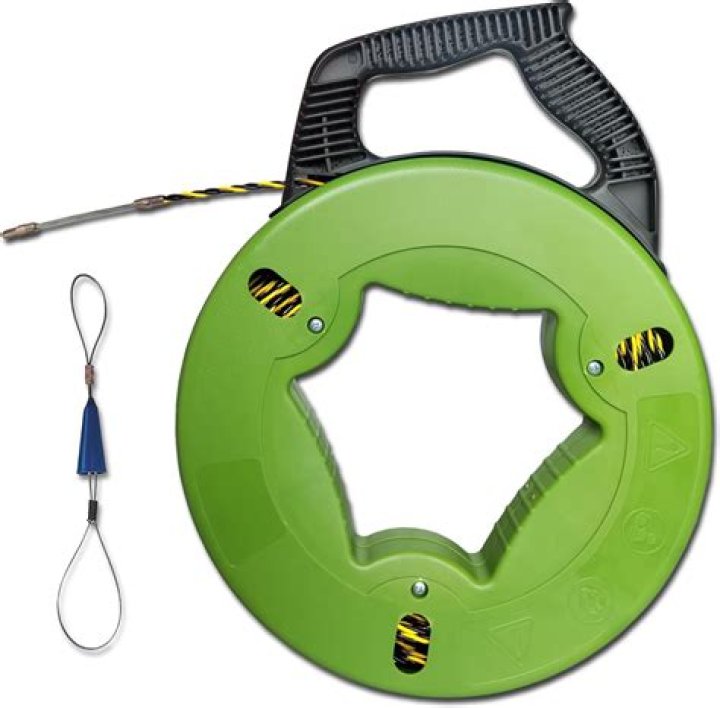

A fish tape is long, thin, flat steel wire wound up inside a donut-shaped wheel with a sturdy handle. That explains part of the name, but what about the fish part? The fish part comes from the fact that it’s nearly impossible to push a wire through conduit. You must first “fish” the tape through the conduit.

What is electrician fish tape?

This spring-steel fish tape makes it easy to thread cables and wires through drywall, conduit or insulation. Simply guide the fish tape through the narrow opening, attach wires to the pulling loop and pull the wires to the new location smoothly and efficiently.

What are the main parts of a power puller?

Basic components of most power-pulling tools include frame, power source, the capstan that pulls the pulling rope and wire, and the mechanism that turns the capstan and pulling rope.

What is nylon fish tape?

Product Overview This versatile fish tape has a non-conductive nylon construction for use in telecom, electrical, wall and floor conduit. It’s the perfect tool to aid in pulling cables through occupied duct and panel boxes. This nylon tape resists corrosion and can safely support up to 200 lbs.

What is the turning portion of a cable puller on which a rope is wrapped and pulled called?

Capstan: The turning drum of the cable puller on which the rope is wrapped and pulled.

What can I use if I don't have fish tape?

A fish tape is a thin, flexible steel tape, typically 1/4 to 1/2-inch wide, that comes on a large reel, similar to a surveyor’s tape measure. Heavy gauge wire can be used to create a fish tape. Much of the wiring in new construction can be done without it, since the interior of walls and ceilings is still accessible.

Article first time published on

What do you pull wire with?

The most commonly used tool for pulling wire through conduit is fish tape, an electrician’s tool with a long, flat metal wire wound inside a wheel-shaped spool.

Can I run an extension cord through a wall?

No, not worth the risk. It is against the National Electrical Code to connect extension cord wiring through a hole or opening in a wall, inside a dropped ceiling or under flooring.

What is mule tape?

Muletape is a unique pull tape designed to reduce damage to the underground plant. Resulting in improved efficiency, and enhanced worker safety. … This improves efficiency and prevents “snap back”, which occurs when a rope under high tension elongates and either breaks or snaps back… often injuring the installer.

What are the three types of pullers?

These pullers include bearing splitter plates, 2 and 3 arms bearing pullers, internal bearing pullers, bar type puller &slide hammer puller.

What is the meaning of puller?

Definitions of puller. someone who applies force so as to cause motion toward herself or himself. types: wrester. someone who obtains something by pulling it violently with twisting movements.

Where would you use a jaw type puller?

3-Jaw Puller You can use them to remove gears, pulleys, wheel hubs, all kinds of hard to remove parts. They come in several sizes and are inexpensive. Every garage should have three sizes of 3-jaw pullers in the drawer.

How do you use HDMI fish tape?

The simplest way is to unhook one of your existing cables and tape a string to the end. When you pull it out, you pull the string in. Then tape the HDMI cable along with the existing cable to the string and pull them both back in through the two horizontal studs.

What does a capstan on a ship do?

capstan, mechanical device used chiefly on board ships or in shipyards for moving heavy weights by means of ropes, cables, or chains.

What's the difference between MC and AC cable?

The biggest difference between the two cable systems is that MC has full size ground wire while AC uses a combination of the jacket and a thin bonding strip or wire to function as the equipment ground. … Now AC cable cannot be used in exterior or damp locations.

What determines the amount of force applied to a pull?

This depends on a variety of factors like the placement of the object and the amount of maneuvering required. Both pushing and pulling require force. The amount of the force required is determined by the weight of the object and where the object needs to be moved.

What are electric tools?

Electrical tools are tools used to work on an electrical system. These can include a wide range of tools such as wire and cable cutters, wire strippers, coaxial compression tools, telephony tools, wire cutter/strippers, cable tie tools, accessories and even more.

Can you pull new wire through old conduit?

In ideal situations, you’ll work with a conduit that still has old wire running through it. In these cases, you can simply attach the end of the old wire to the end of the new wire and use it as a pull wire, pulling the new line through the conduit.
