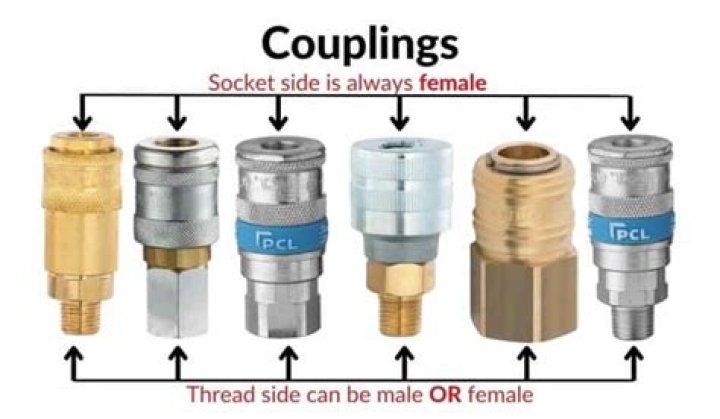

A coupling (or coupler) (used in piping or plumbing) is a very short length of pipe or tube, with a socket at one or both ends that allows two pipes or tubes to be joined, welded (steel), brazed or soldered (copper, brass etc.) together.

Is a socket the same as a coupling?

Full Coupling is used for connecting small bore pipes. It used to connect pipe to pipe or pipe to swage or nipple. … A socket weld full coupling is used to join small bore plain end pipes where the pipe spec requirement is socket weld. A threaded full coupling is used to join small bore pipes with threaded ends.

What are CPVC fittings?

Chlorinated Poly (Vinyl Chloride) (CPVC) is a thermoplastic pipe and fitting material made with CPVC compounds meeting the requirements of ASTM Class 23447 as defined in ASTM Specification D1784. CPVC applications are for potable water distribution, corrosive fluid handling in industry, and fire suppression systems.

What is a spigot and socket joint?

Spigot & Socket joint:- This type of joint is commonly used in case of cast- iron-pipes. For the construction of this joint the spigot or normal end of one pipe is centred into the socket of the other pipe. Hemp yarn is then wrapped around the spigot, leaving unfilled the required depth of socket for lead.

What is plastic socket?

Flexible Couplings for plastic socket connections are a time-saving way to repair or alter plastic pipe joints without replacing fittings. Made of flexible PVC. For socket-to-pipe or socket-to-socket connections. Connections are easy to make & reliable.

What is spigot and socket end in pipes?

The end connection of a fitting that is to be assembled into another fitting is called the “Spigot.” The spigot end of a fitting has the same outside diameter as pipe. The common female connection of PVC fittings is referred to as the socket or hub, and the spigot end of a fitting can be inserted into a Hub or Socket.

What are couplings for plumbing?

Coupling & Adapter Fittings – Pipe couplers slip over the outside of two pipes to connect them, usually permanently. A coupling can be a reducer, or reducing coupling, meaning they reduce flow by joining a larger pipe to a smaller size. Adapters are used when connecting two pipes of different types.

Are couplings considered fittings?

Elbows, Couplings and Nipples Are Not Fittings. When you are dealing with codes and standards you learn how important it is to choose the proper words.

What thread is PVC pipe?

FPT (FIPT) – aka Female (Iron) Pipe Thread. This is a type of threading that is found on the inside lip of a fitting, allowing connection to a MPT or male pipe threaded end. FPT/FIPT threading is commonly used for PVC and CPVC piping systems.

What are couplings used for?

Couplings are mechanical components used to connect two in-line shafts to enable one shaft to drive another at the same speed. A coupling can be rigid or flexible, allowing various amount of angular, radial, and axial misalignment between the two shafts.

Article first time published on

What is bell and spigot?

A form of joint used on pipes that have an enlarged diameter or bell at one end and a spigot at the other that fits into and is laid in the bell. The joint is then made tight by lead, cement, rubber O-ring, or other jointing compounds or materials.

What is spigot in pipe?

A spigot joint is a type of pipe fitting that is inserted into another pipe fitting. The spigot end typically has the same outer diameter as the pipe and is usually fitted into another larger-diameter joint called a bell. Together, these two elements form what is commonly known as a bell and spigot.

Where is the socket joint?

Examples of this form of articulation are found in the hip, where the round head of the femur (ball) rests in the cup-like acetabulum (socket) of the pelvis; and in the shoulder joint, where the rounded upper extremity of the humerus (ball) rests in the cup-like glenoid fossa (socket) of the shoulder blade.

Which is stronger CPVC or PVC?

Differences in Pipe Strength Both materials are very strong, but CPVC is harder than PVC, which makes it more prone to breaking. CPVC is more brittle than PVC and can be warped or cracked more easily, but it is also more flexible than PVC.

Which is better PVC or CPVC?

Not only can CPVC be used above the maximum service temperature of PVC, but its increased temperature resistance enables it to perform better at temperatures within PVC’s working range. For example, even below 140°F (60°C), CPVC is superior to PVC in terms of impact strength and tensile strength.

Should I use PVC or CPVC?

We recommend the use of PVC for recreational use/building, cold water systems, vent systems, and drainage systems. CPVC is recommended for applications where the maximum temperature will exceed 140 degrees Fahrenheit, but stay under CPVC’s max rating of 200 degrees Fahrenheit.

What are different types of pipe fittings?

• Adaptor.
• Barb.
• Coupling.
• Cross.
• Double Tapped Bushing.
• Elbow.
• Mechanical Sleeve.
• Nipple.

What is PVC tee?

PVC tees are a fitting with three ends; two in a straight line and one on the side at a 90-degree angle. Tees allow a line to be split into two separate lines with a 90-degree connection. Also, tees can connect two lines into one main line. They are also often used for PVC structures.

What is a slip elbow?

These Schedule 40 PVC Slip Elbows are used to make a 90° turn in a run of PVC pipe. Slip fittings require primer/glue. … All plumbing grade PVC should have size and rating information imprinted on the outside of the pipe. PVC pipe is named for the inside diameter, commonly referred to as “a nominal size”.

What are the common types of fittings?

There are many different kinds of fittings, made from a variety of materials: some of the most common types are elbows, tees, wyes, crosses, couplings, unions, compression fittings, caps, plugs and valves.

What are pipe flanges?

A flange is a method of connecting pipes, valves, pumps and other equipment to form a piping system. It also provides easy access for cleaning, inspection or modification. Flanges are usually welded or screwed. Flanged joints are made by bolting together two flanges with a gasket between them to provide a seal.

How do I identify pipe threads?

Thread dimensions are based on the ID of the pipe. Use a caliper, measuring tape, or ruler to measure the thread diameter of a male thread or female thread. Measure the inner diameter (ID) of the female thread and the outer diameter (OD) of the male thread. This number will help determine the thread dimension.

Do PVC threads need Teflon tape?

The right way to assemble a threaded PVC joint-Schedule 40 or 80 is finger tight plus one to two turns-no more. Two turns past finger tight plus the stress of the system pressure is within the tensile strength of one-inch PVC. Don’t use Teflon tape, Teflon paste or pipe dope. Do use a sealant.

What is a 4 way fitting called?

Furniture grade 4 way tees are also known as side outlet tees. 4 way furniture tees allow four pipe lengths to be connected at a central support. They feature three sockets at 90° angles along the same plane and one vertical socket from which they derive the common name: side outlet tees.

What is the name of pipe fittings?

When two ends of pipes are joined, the pipe fitting used is called union. A union is made of three parts namely a nut, a male end and a female end. The male and female ends are assembled with the support of the nuts, and necessary pressure is made to connect the joint.

Is an elbow a fitting?

WHAT DO ELBOWS DO? In addition to the flex point for your arm, elbows are industrial fittings that change the direction of piping. The connections allow you to reroute regularly threaded pipes to turn corners or fit in limited space without the expense of buying a pipe bender.

What are the 5 types of couplings?

• – Jaw Couplings. …
• – Sleeve Coupling. …
• – Tire Coupling. …
• – Disc Coupling. …
• – Diaphragm Coupling. …
• – Gear Couplings. …
• – Grid Couplings. …
• – Roller Chain Coupling.

What are the three types of couplings?

• Rigid Coupling.
• Sleeve or muff coupling.
• Clamp or split-muff or compression coupling, and.
• Flange coupling.
• Flexible coupling.
• Bushed pin-type coupling,
• Universal coupling, and.
• Oldham coupling.

What is the difference between a coupler and a coupling?

Are they interchangeable? Merriam-Webster dictionary doesn’t seem to think so. Among its definitions, a coupling is “a device that connects two parts or things”…. but, search coupler and you will find no reference for anything mechanical power transmission related.

What is Cotter joint?

A cotter joint, also known as a socket and spigot joint, is a method of temporarily joining two coaxial rods. … The cotter used within a cotter joint is typically an elongated wedge, which can be driven into the slots. Cotter joints are used to support axial loads between the two rods, tensile or compressive.

What is pipe expansion joint?

A rubber pipe expansion joint is a flexible connector of two pipes. It provides stress relief in a piping system due to thermal and mechanical vibration or movements. … Carcass – The carcass or body of the expansion joint consists of fabric, and when necessary metal.
