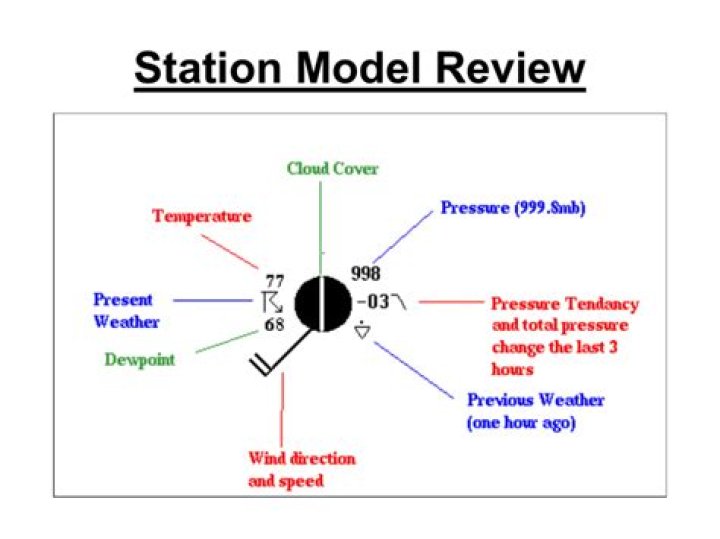

A station model is a symbolic illustration showing the weather occurring at a given reporting station. … Elements in the plot show the key weather elements, including temperature, dew point, wind, cloud cover, air pressure, pressure tendency, and precipitation.

What are three types of information shown on a station model?

The station model depicts current weather conditions, cloud cover, wind speed, wind direction, visibility, temperature, dew point temperature, atmospheric pressure adjusted to sea level, and the change in pressure over the last three hours.

What information can you get from a station model quizlet?

A station model gives you the location of a weather station as well as the weather data collected at that station.

What do you think the kind of information does land station models can give?

Land-based weather stations around the world and automatic stations observe the atmospheric pressure, wind direction and speed, temperature of the air, humidity, clouds, precipitation and visibility using standard weather instruments such as the barometer, wind vane, anemometer, thermometer, psychrometer or hygrometer …

How is station plot information used?

Meteorologists use the station plots to draw lines of constant pressure (isobars), temperature (isotherms), and dew point (isodrosotherms) to achieve an understanding of the current state of the atmosphere. This knowledge ultimately leads to better weather forecasts and warnings.

What is a station model quizlet?

Station Model. reveals and communicates specific info about the weather over a specific area. Temperature.

Why are so many station models used to gather weather data in the United States?

Why are so many station models used to gather weather data in the United States? Because the country is so large, and Earth’s atmosphere is constantly changing, we need data from many stations to make accurate forecasts. … A barometer is used to measure air pressure.

What is the temperature according to the station model?

Dew PointGeneral level of comfort70 degreesThe air is sultry and tropical and generally uncomfortable.

How do you make a station model?

1. Draw a circle. Look at the sky and divide it into eighths. …
2. Determine the temperature and dew point of your weather station. …
3. Record sea level pressure to the nearest tenth of a millibar in the upper right of the station model circle.

What advantage do weather satellites have over ground based weather stations?

What advantage do weather satellites have over ground-based weather stations? Satellites can gather weather data from much higher altitudes than land-based instruments can.

Article first time published on

When coding air pressure on a station model do you use the following rule?

Air Pressure: when coding air pressure on a station model, use the following rule: if the air pressure on the station model is 500 or more, place a 9 in front of this number. Also put a decimal point in front of the last number EX: 588– 958.8 millibars.

What is the importance of weather forecasting?

Climatology and Weather Forecasting is important since it helps determine future climate expectations. Through the use of latitude, one can determine the likelihood of snow and hail reaching the surface. You can also be able to identify the thermal energy from the sun that is accessible to a region.

What brings dry clear weather?

Continental Tropical (cT) form over the desert of Northern Mexico and SW United States brings clear, dry, hot weather northward in summer. The area in which 2 air masses meet. Cold air moves under warm air and pushes the warm air upward. When warm air moves over cold, denser air and gradually replaces the cold air.

What information can you learn from weather map?

A weather map is used to show weather facts about a specific place at a given time. It can show temperature, cloud coverage, rain or snow, wind, air pressure, humidity, and the direction a weather system is moving or expected to move.

How is radar used to forecast the weather?

Weather radar (also known as Doppler weather radar) is an instrument that sends pulses of electromagnetic energy into the atmosphere to find precipitation, determine its motion and intensity, and identify the precipitation type such as rain, snow or hail.

How do you measure air pressure on a station model?

The three digits in the upper-right-hand corner of the station model represent the last three digits of the station’s sea-level pressure, expressed to the nearest tenth of a millibar. Thus, to decode the pressure reading, you must first add a decimal in front of the right-most digit.

How do you measure wind speed on a station model?

On station models, the speed of the wind is expressed as a series of notches, called “wind barbs” on the clockwise side of the line representing wind direction.

What cloud cover does a location have if the station model has a center circle completely filled in black?

Middle Circle (filled in w/ mostly black): Cloud cover. It’s mostly black showing that this station is mostly cloudy. Technically, this represents a broken sky with 7/8 of the sky covered with clouds.

Why do meteorologists use symbols and maps to analyze the weather?

It lets meteorologists see a lot of information in a very small space. The symbols and numbers found there are the same across the world and have hardly changed in 75 years.

How do you find the relative humidity of a station model?

Once you have the saturation vapor pressure and the actual vapor pressure, relative humidity can be computed by dividing the actual vapor pressure by the saturation vapor pressure and then multiplying by 100 to convert the quantity to a percent.

What type of pressure system is most associated with rainy weather?

Low pressure is associated with rain and storms, while high air pressure system tends to mean clear, fair weather.

Are low pressure systems associated with stormy weather?

Low-pressure areas are places where the atmosphere is relatively thin. Winds blow inward toward these areas. This causes air to rise, producing clouds and condensation. Low-pressure areas tend to be well-organized storms.

What website is an excellent source of weather information?

AccuWeather is Most Accurate Source of Weather Forecasts and Warnings in the World, Recognized in New Proof of Performance Results. … AccuWeather gathers the best and most comprehensive weather data to deliver forecasts with Superior Accuracy.

What is a station weather plot?

The station weather plot shows the current weather conditions, cloud cover, wind speed, wind direction, visibility, temperature, dew point temperature, atmospheric pressure, and the change in pressure over the last three hours.

What are some benefits that satellites provide to society?

Satellites that circle the globe provide the most accurate weather reports and warn us of impending storms; they monitor our climate every day, helping to track increasing rates of climate change and its effects, such as rising seas and changing moisture levels, wildfires and atmospheric changes; they connect millions …

Why is a weather satellite important?

Weather Satellites are an important observational tool for all scales of NWS forecasting operations. … Polar orbiting satellites provide imagery and atmospheric soundings of temperature and moisture data over the entire Earth.

How do weather satellites help meteorologists?

These geostationary satellites are principally used to provide images of the Earth, which when looped together, allow meteorologists and the public to see the growth and movement of clouds and storms in the atmosphere. This information is especially critical for short-term forecasting, or nowcasting, of severe weather.

Why do meteorologists use station models?

Meteorologists created the station model to fit a number of weather elements into a small space on weather maps. This allows map users to analyze patterns in atmospheric pressure, temperature, wind speed and direction, cloud cover, precipitation, and other parameters.

How would the following barometric trends be recorded on a station model?

Barometric Trend is sometimes shown on a station model. It is always to the right of the circle and in the “three o’clock” position. This trend is represented with a “+” or “-“(increase or decrease) and two numbers that represent the ones and tenths place. … After that number, any of the following symbols might be used.

When you are looking at a weather station model on a map the temperature is always above what?

That’s a tremendous amount of useful information packed into one little graphic—and some maps contain even more data, such as visibility and cloud heights and types. A station plot always shows the current temperature on the top left, dew point on the bottom left, and air pressure on the top right.

What is the best weather forecast model?

Global models with worldwide weather forecasts The ECMWF is generally considered to be the most accurate global model, with the US’s GFS slightly behind.
