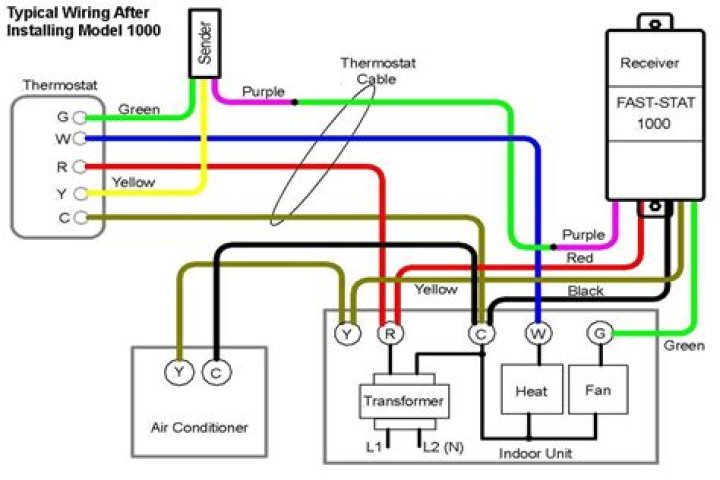

Relays – Thermostats communicate with the heating and cooling equipment via relays. For example, the “W” wire turns on heating, and the “Y” wire turns on cooling. If the wires in the thermostat are correctly and snugly connected, you may have a faulty relay switch.

How do I know if my electric thermostat is bad?

HVAC system won’t turn on: The most obvious sign of a bad thermostat is that the HVAC system in your building won’t turn on or respond to the thermostat. You should be able to turn on your heating or cooling system from the thermostat, or change operation back and forth from heating to cooling.

What is an HVAC relay switch?

An air conditioner uses relays to switch the system’s high-voltage parts on and off. The relay contains a low-voltage coil and a high-voltage switch, sometimes called “contact points.” When the thermostat switches on, a low-voltage signal energizes the appropriate relay.

What causes a thermostat to stop working?

Loose connections, frayed wires, and aged wires all can cause your thermostat to eventually lose its connection to your A/C and heating system. Inspect your wiring thoroughly, making sure the connections are tight, and replace any wires as deemed necessary by you or an HVAC professional.

How do you know if you need a new thermostat?

1. Heating or cooling system will not turn off or on.
2. The temperature reading is incorrect.
3. Recent spike in your energy bill.
4. Frequent temperature fluctuations.
5. Thermostat is 10 years old or older.

Do thermostats wear out?

The simple answer is that thermostats can wear out. The main reason a thermostat wears out or doesn’t work is because it may not be level, e.g., it may have been removed when the wall was painted and was not reinstalled in a level position. … In these cases the thermostat should be replaced.

Do House thermostats go bad?

If you’re wondering whether your thermostat can go bad, rest assured that it won’t happen for a while. Thermostats don’t typically have a set lifespan for maintenance, repair, or replacement (unlike air conditioners that need a tune-up every year).

How do I know if my AC relay is bad?

One of the most obvious signs that the AC relay may have a problem is that the compressor is not coming on at all. In most cases, when the AC is turned on you will be able to hear the compressor switch on. It will usually produce a familiar clicking noise from the clutch being activated.

Where is the reset button on a thermostat?

Arrow Buttons – Normally, a thermostat has two arrow buttons for resetting the temperature higher or lower. If you adjust these, the new setting is temporary, only lasting until you have reached the end of the previously set program.

How do I know if my blower relay is bad?

If you have a faulty blower motor, you may experience low airflow from the vents, even when the fan is on high. There will be no air coming from the vents if your fan isn’t working due to a bad blower motor resistor.

Article first time published on

How does a relay work?

A relay is an electrically operated switch. They commonly use an electromagnet (coil) to operate their internal mechanical switching mechanism (contacts). When a relay contact is open, this will switch power ON for a circuit when the coil is activated.

Can I replace my thermostat with any thermostat?

Purchase a replacement thermostat that will work with your system. … Most replacement thermostats are compatible with all common systems. However, if your system is unique, finding a replacement thermostat may be difficult.

How do I fix an unresponsive thermostat?

If the thermostat is still unresponsive, make sure the breaker is shut off and remove the cover. If it looks dirty inside, use canned air or a soft artist brush to clean away accumulated grime that may be affecting its functionality. Then look for issues like loose wiring or terminal screws and tighten them up.

How long should a thermostat last?

But, just how long will a thermostat last? They generally last about 10 years but can last longer depending on the make, model, and type of thermostat. Over time, these systems start to age and a thermostat may malfunction because of normal wear and tear, dust accumulation, wiring issues, and rusting.

Can low batteries affect thermostat?

When low batteries eventually die, you’ll see a black display screen, the thermostat will stop working and your heating or cooling units won’t function. The heating and cooling system cannot respond to nonexistent temperature commands.

Why is my furnace not responding to thermostat?

Filter – The most common cause of furnace problems is a dirty filter. If you furnace filter is clogged, the airflow will be restricted. … Thermostat – If your thermostat isn’t properly functioning, your furnace won’t respond in the correct manner. First and foremost, check to be sure it is set to “heat”.

How often should you change your thermostat?

Most thermostats can last 10 years. After 10 years, they can show signs of age and wear, which means it’s time to replace it. Common problems with bad thermostats include faulty sensors, digital screens, etc. If the thermostat goes bad, it can cause your HVAC system to run continuously or not run at all.

How do I reset my thermostat after changing the battery?

1. Ensure that your thermostat is turned off.
2. Open the door of the battery compartment. …
3. Now take out the batteries.
4. Put the batteries back on in reverse to the indicated polarity by the markings in the battery holder.
5. Allow the batteries to stay this way for about five seconds.

Does Honeywell thermostat have a reset button?

The Honeywell T5, T5+, and T6 models have quick access reset mode without a button. If you press and hold the MENU button, a reset option will appear. Select the RESET option and confirm with the OK button. Your Honeywell T5, T5+, or T6 thermostat is now reset.

How do I reset my thermostat?

A common way to reset almost any thermostat is to hold down the reset button for 5+ seconds. Alternatively, try resetting battery-powered thermostats by flipping the battery directions around for 5s, then flip them back. If all else fails, switch off the power at the circuit breaker for a couple minutes.

How much does it cost to replace AC relay?

AC Relay Replacement Cost Replacing a relay costs $80 to $300.

What causes AC relay failure?

Possible causes are low refrigerant, a faulty pressure switch, a faulty control switch or a faulty computer.

Where is the AC relay located?

The relay can be mounted on the fire wall or on the fender well. A/C control installations typically have a three-wire connection for the relay. One wire is a ground, one wire is the input from the interior control panel, and one wire is the power feed to the A/C compressor clutch.

How do you test a blower relay?

Connect a test light or multimeter to the ground (black lead). Turn the ignition key to the on position (engine off), and remove the relay. Using the probe, test all terminal sockets in the relay connector. Two of the four should have power.

Why will a blower run on the on position and not on auto?

Other Blower Fan Won’t Run Problems The fan will run and blow warm air but only in FAN or FAN ON mode – delivering heat – but NOT in AUTO mode. This is a bad temperature sensor in the unit; replace the fan limit controller.

What relay controls the blower motor?

The blower motor relay is the electrical switch that is used to supply the power for the vehicle’s blower motor. The blower motor is the component responsible for pushing air through the vents of your vehicle’s heating and air conditioning systems.

Is relay a sensor?

The term “relay” is usually called a variety of devices, the switching contacts in response to a change in some input variable, not necessarily electric. … In fact it is the sensors that are connected to the relay and interacting with them according to a specific algorithm.

Why do we use relays?

Relays are used where it is necessary to control a circuit by an independent low-power signal, or where several circuits must be controlled by one signal.

Can I change my thermostat myself?

Can I do it myself? An experienced DIY-er can install most programmable thermostats and some smart thermostats. … If you’re replacing a central air conditioner or heating system, consider a thermostat upgrade at the same time – find a unit that will work with your family’s habits to save you the most.

How much does it cost to have a thermostat replaced?

National Average Cost$229Minimum Cost$80Maximum Cost$450Average Range$142 to $346

How much does it cost to install thermostat?

For a standard, 2,000-square-foot home, the cost of installing or replacing a thermostat averages between $112 and $254, including the price of the unit and professional installation. The national average cost is $175. The thermostat will run between $15 and $300, depending on the type and its features.
