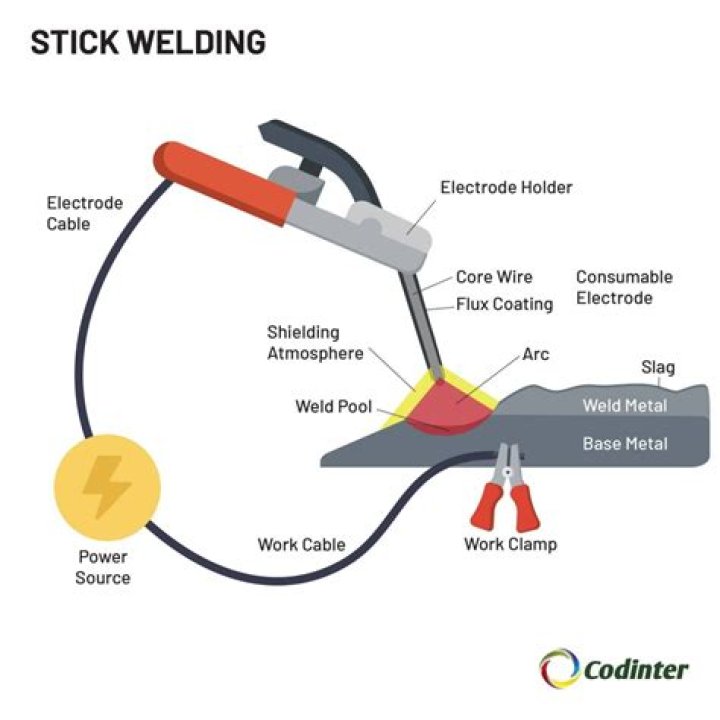

Manual metal arc welding (MMA or MMAW), also known as shielded metal arc welding (SMAW), flux shielded arc welding or stick welding, is a process where the arc is struck between an electrode flux coated metal rod and the work piece. Both the rod and the surface of the work piece melt to create a weld.

What kind of welding is stick welding?

Stick welding is a form of welding that uses electricity to melt a metal filler rod/electrode/stick (electrode is the proper term) that melts both the metal joint and electrode all at once to fuse two pieces of metal together and fill the joint with filler metal at the same time.

What is SMAW and GTAW?

Shielded metal arc welding (SMAW), gas metal arc welding (GMAW) and gas tungsten arc welding (GTAW) are three such arc welding processes—each of them offers certain advantages over others. … SMAW—Consumable electrode. GMAW—Consumable electrode. GTAW—Non-consumable electrode.

What is the proper name for MIG welding?

Gas metal arc welding (GMAW), also known as metal inert gas (MIG) welding, uses a continuous solid wire electrode that travels through the welding gun, which is accompanied by a shielding gas to protect it from contaminants.

What is the difference between MIG welding and stick welding?

MIG welders use a tool called a spool gun, which feeds a wire spool electrode through the unit. This is in contrast to stick welding, which uses a removable stick electrode. This wire moves through the welder at a constant speed, and the gun also emits a stream of gas that protects the weld from nitrogen and oxygen.

What does stick welding stand for?

Shielded metal arc welding (SMAW), also known as manual metal arc welding (MMA or MMAW), flux shielded arc welding or informally as stick welding, is a manual arc welding process that uses a consumable electrode covered with a flux to lay the weld.

What is the difference between a stick welder and a TIG welder?

TIG welding uses a tungsten electrode that produces the electric arc between the torch and the metal workpiece. … In contrast, in arc or stick welding, the electrode is consumable. Unlike in TIG welding, the electrode acts as the filler metal rod and melts to form part of the weld joint itself.

What does MIG welder stand for?

MIG stands for Metal Inert Gas. Only inert gases or gas mixtures are used for the shielding gas when MIG welding. Typical inert gases used for MIG welding are argon and helium. … In the US, both MIG and MAG welding are described by the term GMAW ( Gas Metal Arc Welding).

What are the 3 types of welding?

Three of the most common are Arc, MIG (Metal, Inert Gas) or GMAW (Gas, Metal Arc Welding), and TIG (Tungsten Inert Gas) welding. In order to know which process is best for the particular job you’re working on, here’s what you should know about each of them. Arc welding is the oldest of these three welding processes.

What is polarity in welding?

What Is Welding Polarity? When you turn on a welding machine, an electrical circuit is formed. The circuit has either a positive or negative pole, and this property is referred to as polarity. Polarity is critical for welders to understand because it directly impacts the quality and strength of the weld.

Article first time published on

What is the full form of GTA W?

Gas tungsten arc welding (GTAW), also known as tungsten inert gas (TIG) welding, is an arc welding process that uses a non-consumable tungsten electrode to produce the weld.

What does TIG mean in welding?

Tungsten Inert Gas (TIG) welding, also known as Gas Tungsten Arc Welding (GTAW) is an arc welding process that produces the weld with a non-consumable tungsten electrode. Tungsten inert gas (TIG) welding became an overnight success in the 1940s for joining magnesium and aluminium.

Is stick welding stronger than MIG?

Some argue that stick welding is stronger than MIG welding, since it offers better penetration for thicker materials. However, MIG welding can provide good welds despite not being as effective on thicker metals, and is better for joining thinner metals with a good finish and less risk of burn-through.

Is stick welding MIG or TIG?

Three of the most common welding fabrication processes used for metal fabrication are metal inert gas (MIG), tungsten inert gas (TIG) and shielded metal arc welding (Stick). … This mechanized process can be more complex than other welding processes. Like MIG, TIG welding uses an electric arc to create the weld.

Is stick welding stronger than TIG?

TIG welding is as strong as stick or any other form of welding… “The weld is as strong as the skill of the welder”.

Can you stick weld without gas?

While it’s technically impossible to MIG weld without gas, it’s very possible to weld without lugging a gas cylinder and other equipment around. Self-shielding welding with flux core wire is a great option for many hobby users, and with the right welding supplies you can achieve great results!

What are the 7 basic types of welding?

These include metal inert gas (MIG) welding, stick welding, tungsten inert gas (TIG) welding also know as gas tungsten arc welding (GTAW), gas welding, metal active gas (MAG) welding, flux cored arc welding (FCAW), gas metal arc welding (GMAW), submerged arc welding (SAW), shielded metal arc welding (SMAW) and plasma …

Is stick welding still relevant?

That’s the simple reason that shielded metal arc welding (SMAW), or stick welding, is still relevant for thousands of metal fabricators that work in heavy fabricating facilities, structural steel shops, shipyards, and in the field. … In some ways, the SMAW process hasn’t changed much over the decades.

Why electrode is coated with flux?

Flux coating on the electrodes ensures a weld with good mechanical properties, chemical composition and weld metal cleanliness.

Is stick and arc welding the same?

Also known as manual metal arc welding (MMA or MMAW), flux shielded arc welding or stick welding is a process where the arc is struck between the metal rod (electrode flux coated) and the work piece, both the rod and work piece surface melt to form a weld pool.

What are the 5 types of welding?

MIG Welding – Gas Metal Arc Welding (GMAW) TIG Welding – Gas Tungsten Arc Welding (GTAW) Stick Welding – Shielded Metal Arc Welding (SMAW) Flux Welding – Cored Arc Welding (FCAW)

Which welding is strongest?

Bottom Line. TIG welding produces cleaner and more precise welds than MIG welding or other Arc welding methods, making it the strongest. That said, different welding jobs may require different methods, while TIG is generally stronger and higher in quality, you should use MIG or another method if the job calls for it.

What are the different welding positions?

• Flat position.
• Horizontal position.
• Vertical position.
• Overhead position.

Can MIG weld aluminum?

Aluminum is a tricky metal to weld with a MIG welder because it takes more heat than mild steel (Usually in the range of 21 to 24 volts). The minimum aluminum thickness you should attempt is roughly 14 ga. To 18 ga. Any thinner than that and you’ll need a TIG welder.

Which is better MIG or MAG?

MIG welding is preferred for joining non-ferrous metals (like aluminum). MAG welding is preferred for joining ferrous metals (like mild steel or stainless steel).

What are the different types of MIG welding?

• Short Circuit transfer.
• Globular Transfer.
• Spray Transfer.
• Pulsed Spray Transfer.

What polarity do you use for stick welding?

Note that for stick welding in general, DC+ polarity is most commonly used. It produces a good bead profile with a higher level of penetration. DC- polarity results in less penetration and a higher electrode melt-off rate. It is sometimes used, for example, on thin sheet metal in an attempt to prevent burn-through.

What is positive and negative on stick welder?

The part of the welding circuit that is positive (attracts electrons in the arc) is the anode. The part of the welding circuit that is negative (produces electrons in the arc) is the cathode. … In TIG welding, the split of heat between the anode and cathode is significant.

What are two other general names for an electrode?

There are two types of electrodes, cathodes, and anodes.

Why is my TIG weld black?

Way to much heat. If your stainless is turning black you’re pretty much burning the weld pool. If you’re Tig welding, try backing off the pedal. Turn up your shielding gas as well because it’s probably not enough to keep the weld from contaminating as it cools behind the weld.

What type of welding is flux core?

Flux cored arc welding (FCAW), also know as dual shield welding, is a semi-automatic arc welding process that is similar to metal active gas (MAG) welding. FCAW uses a continuous wire fed electrode, a constant-voltage welding power supply, and similar equipment to MAG welding.
