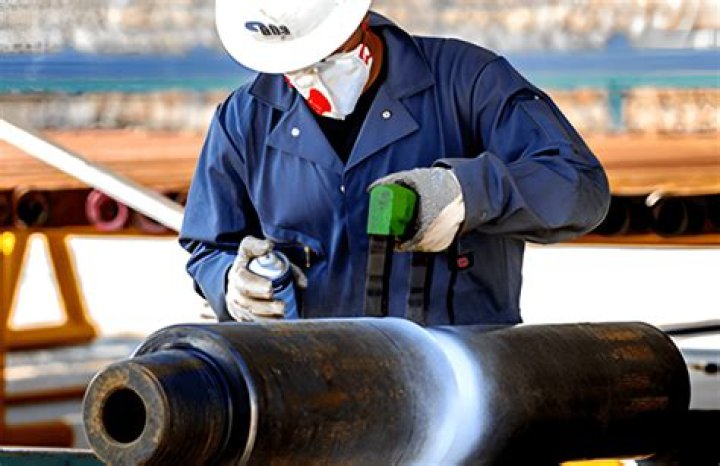

Tubular Inspection is the application of various technologies to detect anomalies such as corrosion and manufacturing defects in multiple different tubes. Tubing can be found in all different places such as boilers, heat exchangers, and other industrial equipment.

What is electromagnetic non destructive testing?

Electromagnetic testing (ET), as a form of nondestructive testing, is the process of inducing electric currents or magnetic fields or both inside a test object and observing the electromagnetic response. If the test is set up properly, a defect inside the test object creates a measurable response.

What is electromagnetic testing used for?

Electromagnetic testing (ET), especially eddy current testing, is commonly used to inspect objects throughout their life cycle.

What is drill pipe inspection?

Drill pipe inspections are imperative to ensuring the drill pipe remains reliable and safe to use in operation. The inspection identifies when pipe or other drill stem elements must be repaired, reinforced or retired due to integrity issues.

What is cat5 inspection?

A Category 5 test includes the same test as a Category 1, plus test weights to verify full load, full-speed operation of buffers, car safety devices and tripping speeds, electrical equipment, 125 percent of the rated load tests; and the ability to break and slip traction.

What is electromagnetic crack detector?

objective. Electroflux Magnetic Crack Detector equipment is designed for non-destructive testing of ferrous iron and steel parts. Electroflux equipment will locate cracks and other defects in parts which can be magnetized.

Why is ultrasonic testing used?

Ultrasonic testing (UT) is a non-destructive test method that utilizes sound waves to detect cracks and defects in parts and materials. It can also be used to determine a material’s thickness, such as measuring the wall thickness of a pipe.

What OCTG means?

The term Oil Country Tubular Goods describes tubes that are used in oil and gas production: As a rule these include drill pipe, casing and tubing. Oil Country Tubular Goods are used both onshore and offshore. In the industry, they are also referred to by the acronym OCTG (for “Oil Country Tubular Goods”).

What is laser testing?

Laser ultrasonics is a cutting edge non-destructive testing (NDT) method in which lasers are used to generate, and then measure, ultrasonic waves in a material.

What is the principle of magnetic particle inspection?

The principle of the method is that the specimen is magnetised to produce magnetic lines of force, or flux, in the material. If these lines of force meet a discontinuity, such as a crack, secondary magnetic poles are created at the faces of the crack.

Article first time published on

What is magnetic flux leakage testing?

Magnetic Flux Leakage (MFL) testing is a widely used, Non-Destructive Testing (NDT) method for the detection of corrosion and pitting in steel structures. MFL is often used for integrity assessment of pipelines and storage tanks, but the principle can be applied to assets in any industrial sector.

What EM wave is used in radiotherapy?

Radiation therapy uses high-energy particles or waves, such as x-rays, gamma rays, electron beams, or protons, to destroy or damage cancer cells.

What is NYC DOB now?

DOB NOW is the Department’s self-service online tool that will enable Owners, Design Professionals, Licensees, and Filing Representatives to do all business with the Department online. DOB NOW is part of our Building One City plan to provide better customer service and increased access to information.

What is Cat 5 testing elevator?

CAT 5 TESTING As part of the MCP, Category 5 testing requires elevators in the province to undergo rated load, rated speed safety testing every 5 years. September 1, 2022 and carried out every 5 years thereafter. Owners should make arrangements to ensure they have the work completed prior to September 1, 2022.

What is a CAT 1 test?

The Department of Buildings requires all elevator devices to undergo an annual inspection called a Category 1 test. Owners and managers are responsible for hiring an approved elevator inspection agency to perform the test, as well as an unaffiliated third party approved agency to witness the inspection.

What are types of ultrasonic testing?

• Automated Ultrasonic Backscatter Technique.
• Phased Array Ultrasonic Testing.
• Long Range Ultrasonic Testing.
• Internal Rotating Inspection Systems.
• Time of Flight Diffraction.
• Dry-Coupled Ultrasonic Testing.
• Rapid Ultrasonic Gridding (RUG)

How ultrasonic testing is done?

Ultrasonic testing can be performed using two basic methods – pulse-echo and through-transmission. With pulse echo testing, the same transducer emits and receives the sound wave energy.

Is ultrasonic testing accurate?

Under optimum conditions, commercial ultrasonic gages can achieve a level of accuracy as high as ±0.001 mm (0.00004 in.) and ±0.025 mm (0.001 in.) or higher in most common engineering materials.

What are the limitations of magnetic particle inspection?

• It is restricted to ferromagnetic materials – usually iron and steel, and cannot be used on austenitic stainless steel.
• It is messy.
• Most methods need a supply of electricity.

Can dry magnetic particles be reused?

Magnetic particles shall not be reclaimed for reuse. A powder blower shall be used to apply the dry magnetic particles.

How MPI is used to inspect the crack?

Magnetic particle inspection is a simple NDI method used to detect cracks at the surface of ferromagnetic materials such as steels and nickel-based alloys. The inspection process begins with the magnetisation of the component. … The magnetic particles are attracted to the flux leakage and thereby cluster at the crack.

What does NDT mean?

NDT stands for Non-Destructive Testing. It refers to an array of inspection methods that allow inspectors to evaluate and collect data about a material, system, or component without permanently altering it. NDT may also be called: NDE (non-destructive examination or evaluation)

How does laser ultrasound work?

Laser ultrasonics is a contactless ultrasonic inspection technique based on excitation and ultrasound measurement using two lasers. A laser pulse is directed onto the sample under test and the interaction with the surface generates an ultrasonic pulse that propagates through the material.

What is laser ultrasonic testing?

Laser ultrasonic testing (LUT) combines the sensitivity of ultrasonic inspection with the flexibility of optical systems to deal with complex inspection challenges. It has advantages for testing metals, composite materials, ceramics, and liquids. … LUT systems first generate ultrasonic waves from a pulsed laser.

Is OCTG a drill pipe?

Oil country tubular goods (OCTG) is a family of seamless rolled products consisting of drill pipe, casing and tubing subjected to loading conditions according to their specific application.

What is tubular in oil and gas?

1. n. [Drilling] A generic term pertaining to any type of oilfield pipe, such as drill pipe, drill collars, pup joints, casing, production tubing and pipeline.

What is a wellhead in oil and gas?

A wellhead is an equipment installed at the surface of a completed oil or a gas well that provides a structural and pressure containing interface for the drilling and production equipment.

What is the real test for recognizing a magnet?

Repulsion is the surest test of the magnets, because a magnetic substance also has attractive property. Repulsion is the surest test because any substance made of iron,nickel, cobalt will also have attraction but won’t have repulsion.

How do you demagnetize after MPI?

Demagnetization after the MT is carried out by attenuating the current from a current larger than the magnetization current to zero when the magnetization uses the axial current and coil method. Alternatively, Demagnetization may be performed by passing DUT through an alternating magnetic field in the air-core coil.

How do you perform an MPI inspection?

1. Induce a magnetic field in the specimen.
2. Apply magnetic particles to the specimen’s surface.
3. View the surface, looking for particle groupings that are caused by defects.
4. Demagnetize and clean the specimen.

What is MFL pipeline?

Patented dual module AMFL Magnetizers (AMFL) The axial MFL magnetizer can provide a sampling density up to 640 samples per square inch. This provides industry leading detection and sizing capabilities. This advanced technology reliably detects pipeline features, metal loss, and mechanical damage.
